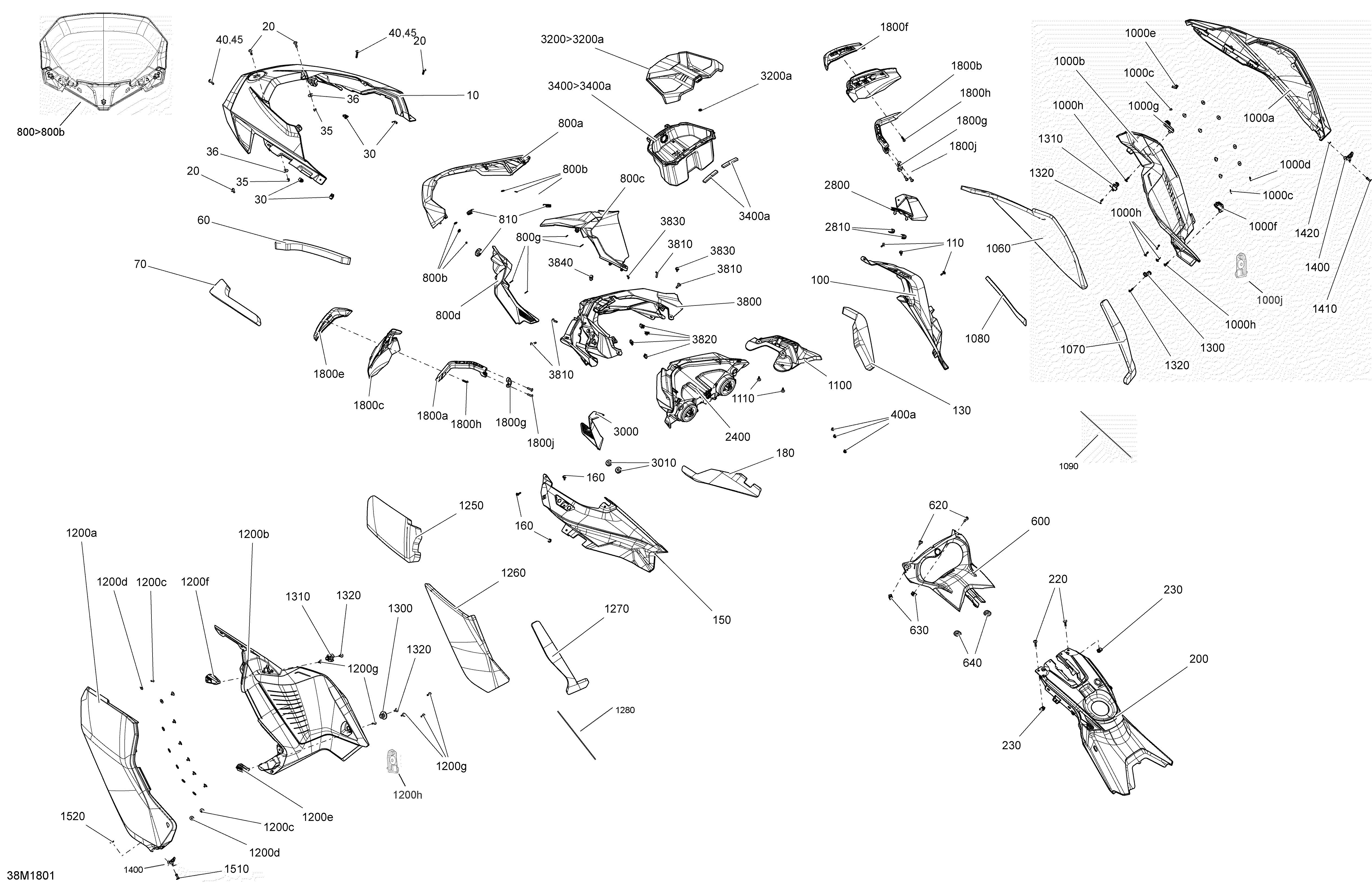

09- Hood Renegade - 850 E-TEC для BRP Ski-Doo 5- RENEGADE 850 E-TEC - 2018
-
№АртикулНазвание
-
10517305744 Black - Front Hood. Black Model All packageBlack - Front Hood. Black Model All package
-
10517306237 White, Front Hood. White ModelWhite, Front Hood. White Model
-
10517306362 Front Hood. Silver Model, Package XRS onlyFront Hood. Silver Model, Package XRS only
-
10517306381 Front Hood. Manta Green Model, Package X onlyFront Hood. Manta Green Model, Package X only
-
10517306388 Front Hood. Package BackCountry X onlyFront Hood. Package BackCountry X only
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
35233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
36250200040 Flat WasherFlat Washer
-
40250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
45250200166 WasherWasher
-
60517305763 Front Hood Foam RHFront Hood Foam RH
-
70517305764 Front Hood Foam LHFront Hood Foam LH
-
100517306007 Black - Hood RH. All packageBlack - Hood RH. All package
-
100517306238 White, RH Hood. Package Adrenaline & BackCountryWhite, RH Hood. Package Adrenaline & BackCountry
-
100517306363 Hyper Silver, RH Hood. Package XRS onlyHyper Silver, RH Hood. Package XRS only
-
100517306383 Manta Green, RH Hood. Package X onlyManta Green, RH Hood. Package X only
-
100517306391 Gulfstream Blue, RH Hood. Package BackCountry X onlyGulfstream Blue, RH Hood. Package BackCountry X only
-
110250000725 Screw M4 X 16Screw M4 X 16
-
130517306001 Hood Foam RHHood Foam RH
-
150517306008 Black - Hood LH. All packageBlack - Hood LH. All package
-
150517306239 White, LH Hood. Package Adrenaline & BackCountryWhite, LH Hood. Package Adrenaline & BackCountry
-
150517306364 Hyper Silver, LH Hood. Package X onlyHyper Silver, LH Hood. Package X only
-
150517306382 Manta Green, LH Hood. Package XRS onlyManta Green, LH Hood. Package XRS only
-
150517306390 Gulfstream Blue, LH Hood. Package BackCountry X onlyGulfstream Blue, LH Hood. Package BackCountry X only
-
160250000725 Screw M4 X 16Screw M4 X 16
-
180517306002 Hood Foam LHHood Foam LH
-
190513033813 GasketGasket
-
200517305745 Rear Console, Deep Black. Package AdrenalineRear Console, Deep Black. Package Adrenaline
-
200517305745 Rear Console, Deep Black. Package XRear Console, Deep Black. Package X
-
200517306318 Rear Console. Package XRSRear Console. Package XRS
-
200517306539 Console-Rear. Package BackCountry & BackCountry XConsole-Rear. Package BackCountry & BackCountry X
-
220250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
230250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
240517304518 Console NutConsole Nut
-
600517305781 Indicator Support, Deep Black. Package XIndicator Support, Deep Black. Package X
-
600517306117 Indicator Support. Package XRS EuropeIndicator Support. Package XRS Europe
-
600517306319 Indicator Support. Package Adr, BC & BCXIndicator Support. Package Adr, BC & BCX
-
620250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
630250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
800517306379 Low Windshield Kit. Package XRS Europe Only. Includes 800 to 800gLow Windshield Kit. Package XRS Europe Only. Includes 800 to 800g
-
800860201448 Low Windshield Kit, , Black 63% Light. Package X, BCX & XRS Europe. Includes 800 to 800gLow Windshield Kit, , Black 63% Light. Package X, BCX & XRS Europe. Includes 800 to 800g
-
800860201258 Medium Windshield Kit. Package Adrenaline & BackCountry. Includes 800 to 800gMedium Windshield Kit. Package Adrenaline & BackCountry. Includes 800 to 800g
-
800a517305749 Windshield Support, Deep BlackWindshield Support, Deep Black
-
800a517306183 Windshield Support, Deep BlackWindshield Support, Deep Black
-
800a517306380 Support. Package XRS Europe OnlySupport. Package XRS Europe Only
-
800b732610072 Push Nut. Package X, BCX & XRS EuropePush Nut. Package X, BCX & XRS Europe
-
800e250000889 Screw M4 X 16. Package Adrenaline & BackCountryScrew M4 X 16. Package Adrenaline & BackCountry
-
800g250200024 Rubber Washer 5 mm. Package X, BCX & XRS EuropeRubber Washer 5 mm. Package X, BCX & XRS Europe
-
800g250200024 Rubber Washer 5 mm. Package XRS Europe OnlyRubber Washer 5 mm. Package XRS Europe Only
-
810517303756 GrommetGrommet
-
1000a517305750 Black, RH Panel. Package BackCountry & BackCountry XBlack, RH Panel. Package BackCountry & BackCountry X
-
1000a517305860 Black, RH Panel. Package Adrenaline, X & XRSBlack, RH Panel. Package Adrenaline, X & XRS
-
1000a517306220 White, RH Panel. Package BackCountryWhite, RH Panel. Package BackCountry
-
1000a517306367 Silver, RH Panel. Package XRS Europe OnlySilver, RH Panel. Package XRS Europe Only
-
1000a517306399 Gulfstream Blue, RH Panel. Package BackCountry X onlyGulfstream Blue, RH Panel. Package BackCountry X only
-
1000a517306475 White, RH Panel. Package AdrenalineWhite, RH Panel. Package Adrenaline
-
1000b517305861 Panel Trim RH, Deep BlackPanel Trim RH, Deep Black
-
1000c293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000d517124300 WasherWasher
-
1000e517305109 Rivet PlateRivet Plate
-
1000f517305773 Rear Latch RHRear Latch RH
-
1000g517305979 Front Latch RHFront Latch RH
-
1000h250000725 Screw M4 X 16Screw M4 X 16
-
1000j517306311 Hook RHHook RH
-
1060517306188 Central Panel Foam RH. Package BackCountry & BackCountry XCentral Panel Foam RH. Package BackCountry & BackCountry X
-
1060517305767 Central Panel Foam RH. Package Adrenaline, X & XRSCentral Panel Foam RH. Package Adrenaline, X & XRS
-
1070517306586 RH Rear Panel Foam. Package BackCountry & BackCountry XRH Rear Panel Foam. Package BackCountry & BackCountry X
-
1070517306116 RH Rear Panel Foam. Package Adrenaline, X & XRSRH Rear Panel Foam. Package Adrenaline, X & XRS
-
1200a517305751 Black, LH Panel. Package BackCountry & BackCountry XBlack, LH Panel. Package BackCountry & BackCountry X
-
1200a517305864 Black, LH Panel. Package Adrenaline, X & XRSBlack, LH Panel. Package Adrenaline, X & XRS
-
1200a517306091 White, LH Panel. Package BackCountryWhite, LH Panel. Package BackCountry
-
1200a517306369 Silver, LH Panel. Package XRS Europe OnlySilver, LH Panel. Package XRS Europe Only
-
1200a517306395 Gulfstream Blue, LH Panel. Package BackCountry X onlyGulfstream Blue, LH Panel. Package BackCountry X only
-
1200a517306477 White, LH Panel. Package AdrenalineWhite, LH Panel. Package Adrenaline
-
1200b517305865 Black - Panel Trim LHBlack - Panel Trim LH
-
1200c293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200d517124300 WasherWasher
-
1200e517305774 Rear Latch LHRear Latch LH
-
1200f517305980 Front Latch LHFront Latch LH
-
1200g250000725 Screw M4 X 16Screw M4 X 16
-
1200h517306312 Hook LHHook LH
-
1260517306189 Central Panel Foam LH. Package BackCountry & BackCountry XCentral Panel Foam LH. Package BackCountry & BackCountry X
-
1260517305770 Central Panel Foam LH. Package Adrenaline, X & XRSCentral Panel Foam LH. Package Adrenaline, X & XRS
-
1270517305771 Rear Panel Foam LH. Package BackCountry & BackCountry XRear Panel Foam LH. Package BackCountry & BackCountry X
-
1270517305766 Rear Panel Foam LH. Package Adrenaline, X & XRSRear Panel Foam LH. Package Adrenaline, X & XRS
-
1080517306262 Rubber SheetRubber Sheet
-
1090517306480 RH Rear Panel FoamRH Rear Panel Foam
-
1100517305862 Grill RH, Deep BlackGrill RH, Deep Black
-
1110250000725 Screw M4 X 16Screw M4 X 16
-
1250517305769 Front Panel Foam LHFront Panel Foam LH
-
1280517306479 LH Rear Panel FoamLH Rear Panel Foam
-
1300517305985 Rear StudRear Stud
-
1310517305988 Front StudFront Stud
-
1320250000725 Screw M4 X 16Screw M4 X 16
-
1400517306309 RH Lower LatchRH Lower Latch
-
1400517306310 LH Lower LatchLH Lower Latch
-
1410293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
1420517124300 WasherWasher
-
1510293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
1520517124300 WasherWasher
-
1800a517305290 Deep Black LH Arm. Package X, BCX & XRS EuropeDeep Black LH Arm. Package X, BCX & XRS Europe
-
1800b517305293 Deep Black RH Arm. Package X, BCX & XRS EuropeDeep Black RH Arm. Package X, BCX & XRS Europe
-
1800c517305291 LH Deflector, Smoke 60% Transm.. Package X, BCX & XRS EuropeLH Deflector, Smoke 60% Transm.. Package X, BCX & XRS Europe
-
1800d517305294 RH Deflector, Smoke 60% Transm.. Package X, BCX & XRS EuropeRH Deflector, Smoke 60% Transm.. Package X, BCX & XRS Europe
-
1800e517305601 Deep Black - LH Cap, SKI-DOO. Package X, BCX & XRS EuropeDeep Black - LH Cap, SKI-DOO. Package X, BCX & XRS Europe
-
1800e517306405 Manta Green, LH Cap. Package X, BCX & XRS EuropeManta Green, LH Cap. Package X, BCX & XRS Europe
-
1800f517305602 Deep Black - RH Cap, SKI-DOO. Package X, BCX & XRS EuropeDeep Black - RH Cap, SKI-DOO. Package X, BCX & XRS Europe
-
1800f517306406 Manta Green, RH Cap. Package X, BCX & XRS EuropeManta Green, RH Cap. Package X, BCX & XRS Europe
-
1800g517305296 Bride. Package X, BCX & XRS EuropeBride. Package X, BCX & XRS Europe
-
1800h250000760 Torx Screw Truss Head K50X20 T20. Package X, BCX & XRS EuropeTorx Screw Truss Head K50X20 T20. Package X, BCX & XRS Europe
-
1800j250000724 Torx Screw M5 X 20. Package X, BCX & XRS EuropeTorx Screw M5 X 20. Package X, BCX & XRS Europe
-
2400517305752 Headlamp. Includes 2400 to 2400aHeadlamp. Includes 2400 to 2400a
-
2400a415130081 BulbBulb
-
2800517305776 Deflector RH, Black 63% Light Transm.. Package X, BCX & XRS EuropeDeflector RH, Black 63% Light Transm.. Package X, BCX & XRS Europe
-
2810517302841 GrommetGrommet
-
3000517305777 Deflector LH, Black 63% Light Transm.. Package X, BCX & XRS EuropeDeflector LH, Black 63% Light Transm.. Package X, BCX & XRS Europe
-
3010517302841 GrommetGrommet
-
3200517305871 Cover Ass'y, Deep Black. Includes 3200 to 3200aCover Ass'y, Deep Black. Includes 3200 to 3200a
-
3200a732610072 Push NutPush Nut
-
3400517306058 Trunk Ass'y. Includes 3400 to 3400aTrunk Ass'y. Includes 3400 to 3400a
-
3400a517305157 Seal JointSeal Joint
-
3800517305746 Headlamp Fairing, Deep Black. All packageHeadlamp Fairing, Deep Black. All package
-
3800517306376 Fairing - Head-Lamp. Package XRS Europe OnlyFairing - Head-Lamp. Package XRS Europe Only
-
3810250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3820250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3830250000725 Screw M4 X 16Screw M4 X 16
-
3840293150089 Tuflok Plastic RivetTuflok Plastic Rivet
