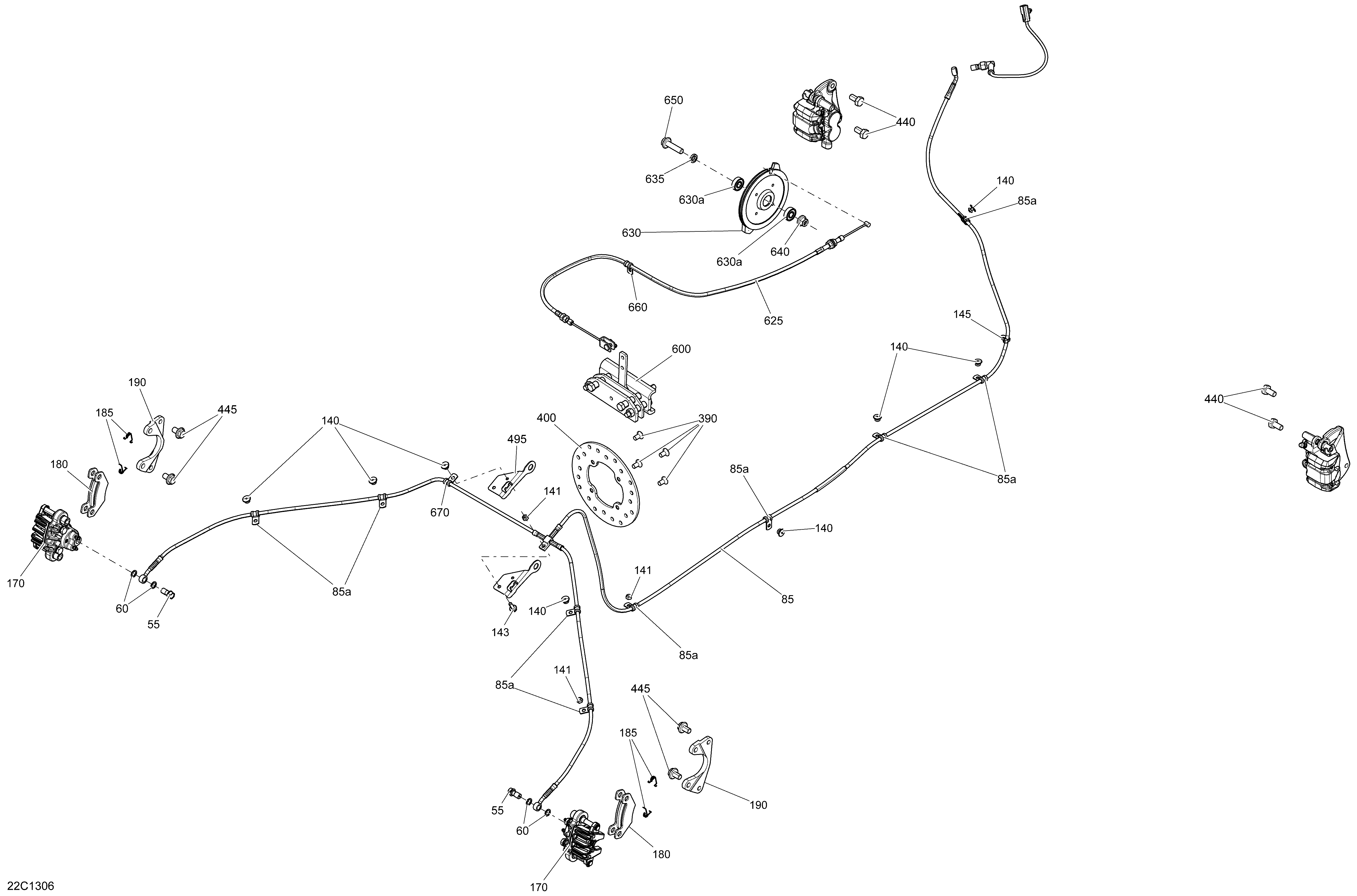

06- Brakes для BRP Commander (Electric 9Kw) STD, XT, LSV - 2013
-
№АртикулНазвание
-
55705600628 Banjo BoltBanjo Bolt
-
60705600310 Copper WasherCopper Washer
-
85705601055 Rear Flexible Hose. Includes 85 to 85aRear Flexible Hose. Includes 85 to 85a
-
85a705600459 ClampClamp
-
140390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
141232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
143207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
145414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
170705601056 Rear CaliperRear Caliper
-
180705600485 Brake Pad KitBrake Pad Kit
-
185705601167 SpringSpring
-
190705601057 Rear Caliper SupportRear Caliper Support
-
390235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
400705600604 Disk BrakeDisk Brake
-
440250000057 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
445250000060 Flanged Screw M10 X 16, Scotch GripFlanged Screw M10 X 16, Scotch Grip
-
495705601111 BracketBracket
-
600705601112 CaliperCaliper
-
625705601071 Brake CableBrake Cable
-
630705600768 Front Pulley Cable. Includes 630 to 630aFront Pulley Cable. Includes 630 to 630a
-
630a705600458 BearingBearing
-
635293900087 BushingBushing
-
640233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
650207604044 Hex. Flanged Screw M10 X 40Hex. Flanged Screw M10 X 40
-
660705600459 ClampClamp
-
670705600459 ClampClamp
