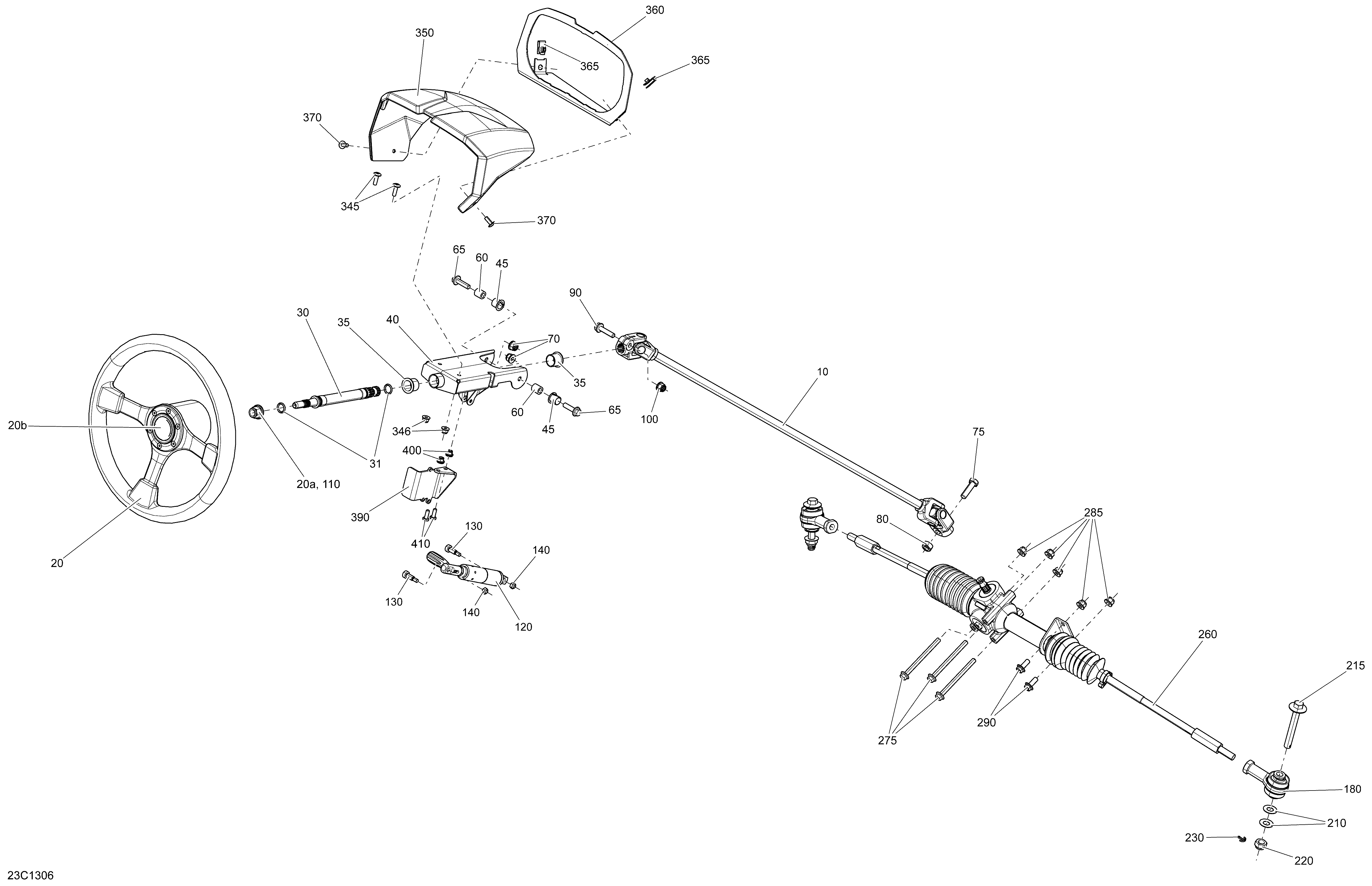

07- Steering для BRP Commander (Electric 9Kw) STD, XT, LSV - 2013
-
№АртикулНазвание
-
10709400900 Steering ColumnSteering Column
-
20715001134 Steering Wheel Kit. Includes 20 to 20bSteering Wheel Kit. Includes 20 to 20b
-
20a233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
20b704902065 Logo Can-Am, 35 mmLogo Can-Am, 35 mm
-
30709401167 Steering ShaftSteering Shaft
-
31293300144 O-RingO-Ring
-
35415108000 CushionCushion
-
40709400655 Steering SupportSteering Support
-
45705600799 BushingBushing
-
60293900106 BushingBushing
-
65207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
70233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
75207103586 Hex. Screw M10 X 35Hex. Screw M10 X 35
-
80232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
90207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
100233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
110233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
120709400656 Adjustment CylinderAdjustment Cylinder
-
130250000649 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
140232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
180709401134 Ball JointBall Joint
-
210706200281 Hardened WasherHardened Washer
-
215250000590 Hex. Cap Screw M12 X 88Hex. Cap Screw M12 X 88
-
220232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
230211400017 Cotter PinCotter Pin
-
260709401195 Rack And Pinion Steering Ass'yRack And Pinion Steering Ass'y
-
275207689534 Hex. Flanged Scew M8 X 95Hex. Flanged Scew M8 X 95
-
285233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
290207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
345250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
346233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
350707900124 Upper Cluster CoverUpper Cluster Cover
-
360707900013 Cluster SupportCluster Support
-
365250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
370250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
390709400810 Flasher Arm Support. LSVFlasher Arm Support. LSV
-
400293450274 Insert. LSVInsert. LSV
-
410207361644 Hex. Screw M6 X 16, Scotch Grip. LSVHex. Screw M6 X 16, Scotch Grip. LSV
