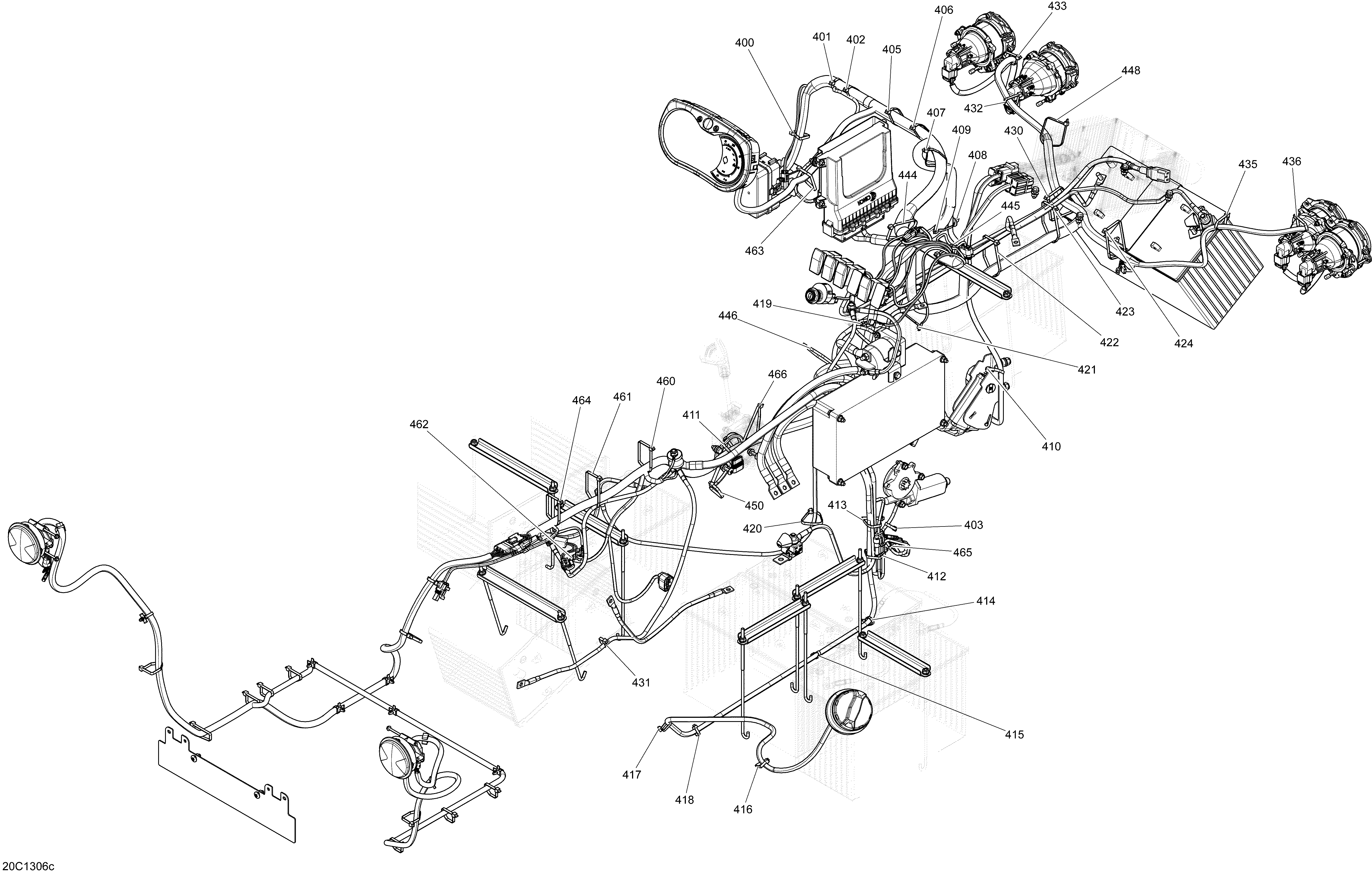

10- Electrical System 3 для BRP Commander (Electric 9Kw) STD, XT, LSV - 2013
-
№АртикулНазвание
-
400293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
401293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
402293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
403293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
405293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
406293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
407293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
408293730018 Mount DartMount Dart
-
409293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
410414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
411293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
412293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
413293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
414414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
415414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
416414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
417414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
418414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
419293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
420293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
421293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
422293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
423293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
424293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
430293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
431414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
432414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
433414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
435414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
436414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
444293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
445293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
446293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
448293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
450293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
460293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
461293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
462293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
463293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
464414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
465414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
466293750008 Tie-Rap 350 mmTie-Rap 350 mm
