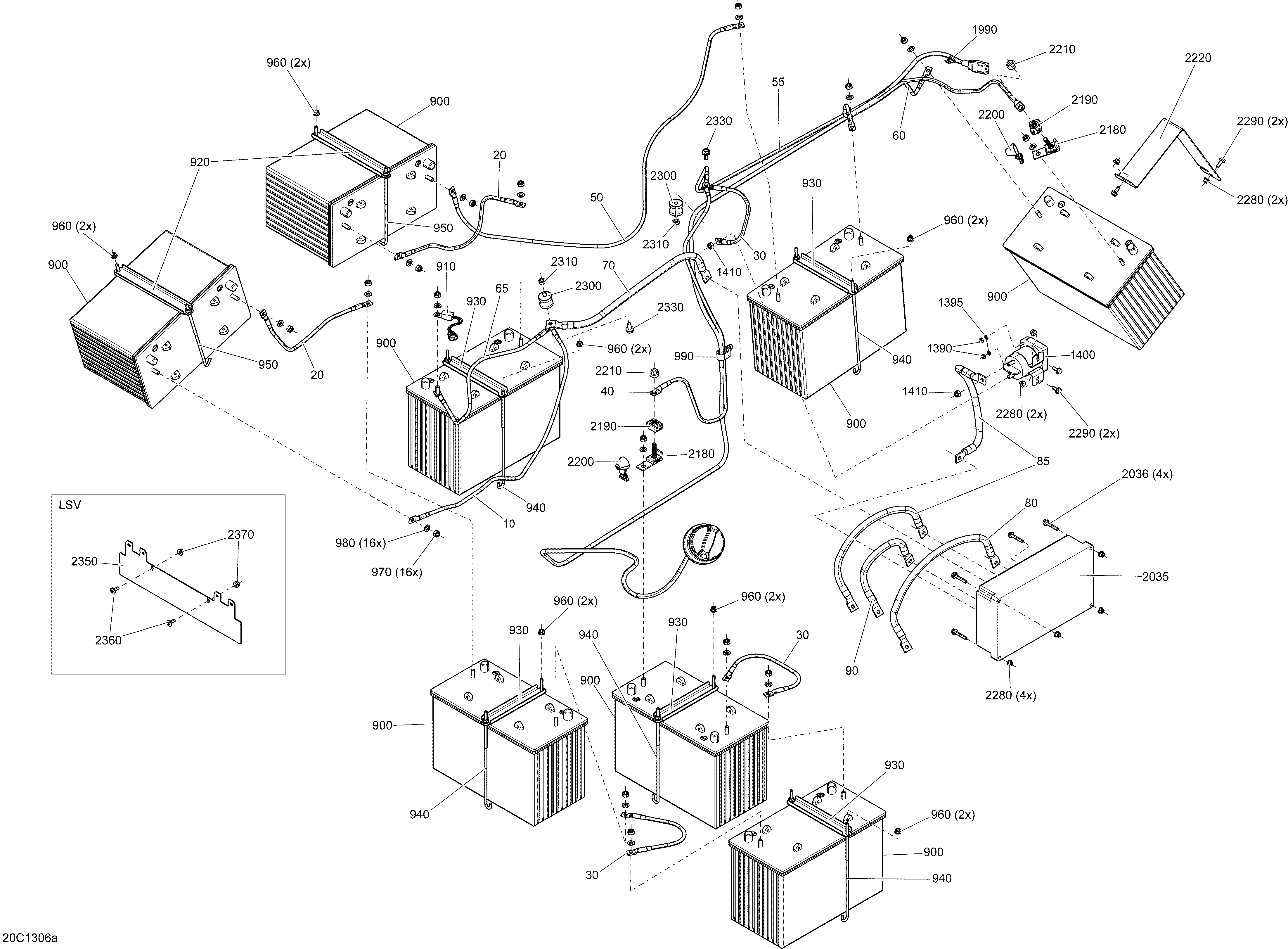

10- Electrical System 1 для BRP Commander (Electric 9Kw) STD, XT, LSV - 2013
-
№АртикулНазвание
-
10710002871 Battery CableBattery Cable
-
20710002875 Battery CableBattery Cable
-
30710002876 CableCable
-
40710002872 Battery CableBattery Cable
-
50710002873 Battery CableBattery Cable
-
55710003251 CableCable
-
60710002880 Battery CableBattery Cable
-
65710002874 Battery CableBattery Cable
-
70710002881 CableCable
-
80710002867 CableCable
-
85710003171 CableCable
-
90710003172 CableCable
-
900710002808 Battery, 12 VoltsBattery, 12 Volts
-
910710003262 Temperature SensorTemperature Sensor
-
920710002809 Battery HolderBattery Holder
-
930710003182 Battery HolderBattery Holder
-
940710003184 Threaded Bar KitThreaded Bar Kit
-
950710003185 Threaded Bar KitThreaded Bar Kit
-
960250100140 Elastic Hex. Flange Nut 1/4-20Elastic Hex. Flange Nut 1/4-20
-
970204100100 Elastic Stop Nut 5/16-18Elastic Stop Nut 5/16-18
-
980234081670 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
990709000057 Open ClampOpen Clamp
-
1390212100005 Hex. NutHex. Nut
-
1395234151601 Helical Lock Washer M5Helical Lock Washer M5
-
1400710002807 ContactorContactor
-
1410250000629 Elastic Stop Nut 5/16-24Elastic Stop Nut 5/16-24
-
1990705600459 ClampClamp
-
2035707001105 Motor Control Module (MCM)Motor Control Module (MCM)
-
2036207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
2180710003145 Fuse HolderFuse Holder
-
2190710003146 Fuse, 300 AmperesFuse, 300 Amperes
-
2200710003147 BootBoot
-
2210710003148 NutNut
-
2220710003149 Front Battery HolderFront Battery Holder
-
2280233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
2290207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2300707000949 Rubber IsolatorRubber Isolator
-
2310232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
2330207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
2350705007032 Plate Holder. LSVPlate Holder. LSV
-
2360250000129 Torx Screw M6 X 16. LSVTorx Screw M6 X 16. LSV
-
2370233261414 Hex. Flanged Elastic Nut M6. LSVHex. Flanged Elastic Nut M6. LSV
