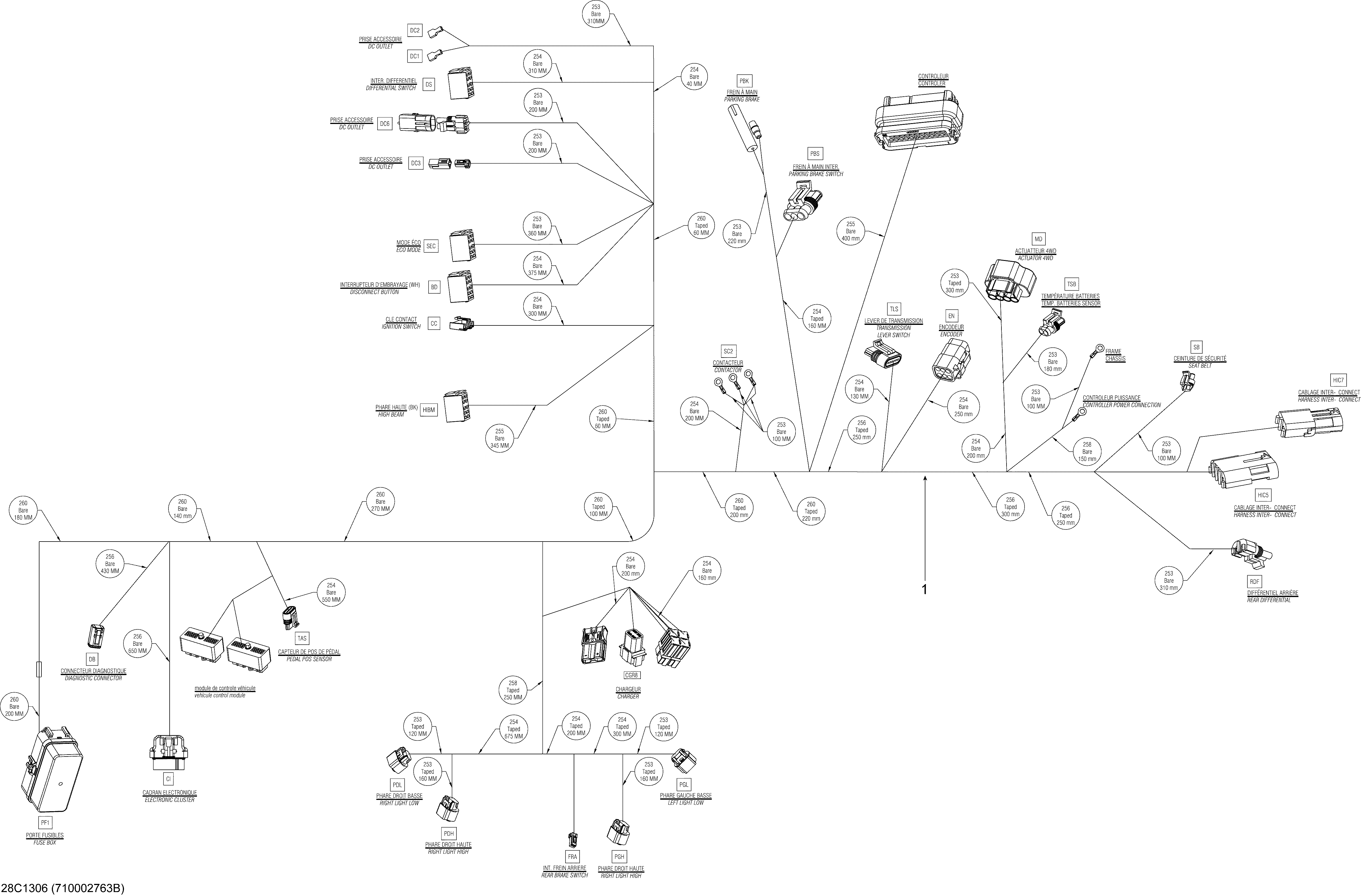

10- Main Harness для BRP Commander (Electric 9Kw) STD, XT, LSV - 2013
-
№АртикулНазвание
-
1710002763 Harness Ass'y. Includes 1 to TSBHarness Ass'y. Includes 1 to TSB
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 Tubing 13 mmTubing 13 mm
-
256415080000 Tubing 16 mmTubing 16 mm
-
258415079900 Tubing 10 mmTubing 10 mm
-
260515175319 Tubing 22 mmTubing 22 mm
-
BD710001931 TerminalTerminal
-
BD710002001 Housing ConnectorHousing Connector
-
CC710000274 Female TerminalFemale Terminal
-
CC710000848 LockLock
-
CC710000849 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
CC710000918 Female TerminalFemale Terminal
-
CI515175812 PlugPlug
-
CI515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CI515175802 Retainer BlockRetainer Block
-
CI515175803 Wire SealWire Seal
-
CI710000399 Female HousingFemale Housing
-
CI710001131 Female TerminalFemale Terminal
-
CGR8278000631 Male TerminalMale Terminal
-
CGR8278001742 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
CGR8515175276 Lock Male, 8 CircuitsLock Male, 8 Circuits
-
CGR8293000052 Sealing CapSealing Cap
-
DB515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
DB515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
DB278001665 Female TerminalFemale Terminal
-
DC1409010700 Female TerminalFemale Terminal
-
DC1409010800 Female TerminalFemale Terminal
-
DC2409010800 Female TerminalFemale Terminal
-
DC3515175231 Female TerminalFemale Terminal
-
DC3515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DC3710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
DC6409007300 Female TerminalFemale Terminal
-
DC6278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DC6278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
DC6278000218 Wire SealWire Seal
-
DC6278000216 Wire SealWire Seal
-
DC6710000992 ClipClip
-
DS409010700 Female TerminalFemale Terminal
-
DS710001931 TerminalTerminal
-
DS710002000 HousingHousing
-
EN409015100 Female TerminalFemale Terminal
-
EN409015400 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
EN409014900 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
FRA515175231 Female TerminalFemale Terminal
-
FRA515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
HIBM710001931 TerminalTerminal
-
HIBM710002000 HousingHousing
-
HIC5278000222 Male TerminalMale Terminal
-
HIC5278000585 Wire Seal (20 Gauge) (Purple) (Packard)Wire Seal (20 Gauge) (Purple) (Packard)
-
HIC5278001065 Wire SealWire Seal
-
HIC5710000992 ClipClip
-
HIC7409004300 Male TerminalMale Terminal
-
HIC7278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
HIC7278000218 Wire SealWire Seal
-
HIC7710000992 ClipClip
-
MD710000080 CapCap
-
MD710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
MD710000335 Female TerminalFemale Terminal
-
MD710000402 Wire SealWire Seal
-
PBK278000230 Male TerminalMale Terminal
-
PBK278001009 Female TerminalFemale Terminal
-
PBK278001008 Insulated SheathInsulated Sheath
-
PBK278001007 Insulated SheathInsulated Sheath
-
PBS278001014 Female TerminalFemale Terminal
-
PBS409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
PBS278001013 Wire SealWire Seal
-
PBS515176621 Wire SealWire Seal
-
PDH710001142 Terminal Housing, 2 CircuitsTerminal Housing, 2 Circuits
-
PDH710001143 Female TerminalFemale Terminal
-
PDH710001427 Wire SealWire Seal
-
PDL710001142 Terminal Housing, 2 CircuitsTerminal Housing, 2 Circuits
-
PDL710001143 Female TerminalFemale Terminal
-
PDL710001427 Wire SealWire Seal
-
PF1278000999 Wire SealWire Seal
-
PF1415128501 SealSeal
-
PF1710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
PF1710000743 Little Fuse, 7.5 AmperesLittle Fuse, 7.5 Amperes
-
PF1710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
PF1710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
PF1710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
PF1710000660 Fuse Box Ass'yFuse Box Ass'y
-
PF1710000781 Fuse PullerFuse Puller
-
PF1710000836 Female TerminalFemale Terminal
-
PF1710000837 Female TerminalFemale Terminal
-
PF1710000840 CapCap
-
PF1278002164 Female TerminalFemale Terminal
-
PF1710001026 Fuse CoverFuse Cover
-
PF1278002172 FoamFoam
-
PF1515176774 Relay, 30 AMPRelay, 30 AMP
-
PF1710001778 RelayRelay
-
PF1710002590 Fuse, 25 AmpsFuse, 25 Amps
-
PGH710001142 Terminal Housing, 2 CircuitsTerminal Housing, 2 Circuits
-
PGH710001143 Female TerminalFemale Terminal
-
PGH710001427 Wire SealWire Seal
-
PGL710001142 Terminal Housing, 2 CircuitsTerminal Housing, 2 Circuits
-
PGL710001143 Female TerminalFemale Terminal
-
PGL710001427 Wire SealWire Seal
-
RDF409007300 Female TerminalFemale Terminal
-
RDF278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
RDF278000218 Wire SealWire Seal
-
SB278001482 SealSeal
-
SB710001134 Female TerminalFemale Terminal
-
SB710002177 HousingHousing
-
SB710002043 LockLock
-
SC2278000992 Open BarrelOpen Barrel
-
SEC710001931 TerminalTerminal
-
SEC710002000 HousingHousing
-
TAS710001119 Female TerminalFemale Terminal
-
TAS278002299 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
TLS710001119 Female TerminalFemale Terminal
-
TLS278002299 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
TSB278001014 Female TerminalFemale Terminal
-
TSB409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
TSB278001013 Wire SealWire Seal
