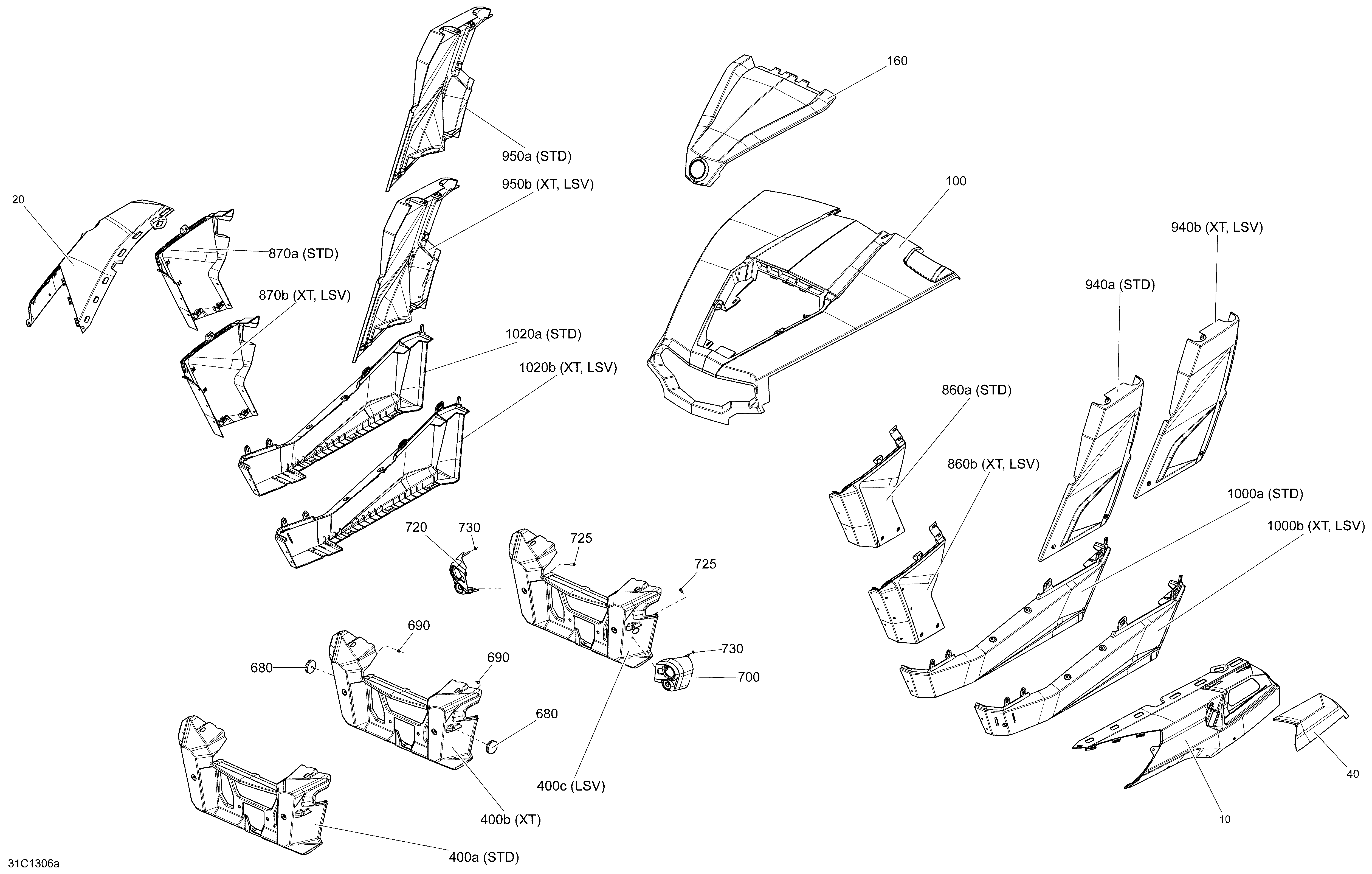

09- Body And Accessories для BRP Commander (Electric 9Kw) STD, XT, LSV - 2013
-
№АртикулНазвание
-
10705003030 LH Front Fender, Yellow. STDLH Front Fender, Yellow. STD
-
10705006933 LH Front Fender, White. XT, LSVLH Front Fender, White. XT, LSV
-
20705003029 RH Front Fender, Yellow. STDRH Front Fender, Yellow. STD
-
20705006934 RH Front Fender, White. XT, LSVRH Front Fender, White. XT, LSV
-
40705004337 CVT Inlet Cover, Yellow. STDCVT Inlet Cover, Yellow. STD
-
40705006805 CVT Inlet Cover, White. XT, LSVCVT Inlet Cover, White. XT, LSV
-
100705002915 Fixed Hood, Yellow. STDFixed Hood, Yellow. STD
-
100705006806 Fixed Hood, White. XT, LSVFixed Hood, White. XT, LSV
-
160705002881 Removable Hood, Yellow. STDRemovable Hood, Yellow. STD
-
160705006807 Removable Hood, White. XT, LSVRemovable Hood, White. XT, LSV
-
400a705003306 Front Facia. STDFront Facia. STD
-
400b705003306 Front Facia. XTFront Facia. XT
-
400c705003306 Front Facia. LSVFront Facia. LSV
-
680705002409 Reflector, Amber. XTReflector, Amber. XT
-
690233251414 Hex. Flanged Elastic Nut M5. XTHex. Flanged Elastic Nut M5. XT
-
700705003627 LH Flasher Cap. LSVLH Flasher Cap. LSV
-
720705003628 RH Flasher Cap. LSVRH Flasher Cap. LSV
-
725250000146 Truss Head Torx Screw K50 X 16. LSVTruss Head Torx Screw K50 X 16. LSV
-
730389804300 Push Nut. LSVPush Nut. LSV
-
860a705002887 LH Front Lateral Pannel, Yellow. STDLH Front Lateral Pannel, Yellow. STD
-
860b705005561 LH Front Lateral Pannel, Black. XT, LSVLH Front Lateral Pannel, Black. XT, LSV
-
870a705002888 RH Front Lateral Pannel, Yellow. STDRH Front Lateral Pannel, Yellow. STD
-
870b705005560 RH Front Lateral Pannel, Black. XT, LSVRH Front Lateral Pannel, Black. XT, LSV
-
940a705002904 LH Rear Lateral Pannel, Yellow. STDLH Rear Lateral Pannel, Yellow. STD
-
940b705006918 LH Rear Lateral Pannel, Black. XT, LSVLH Rear Lateral Pannel, Black. XT, LSV
-
950a705002905 RH Rear Lateral Pannel, Yellow. STDRH Rear Lateral Pannel, Yellow. STD
-
950b705006919 RH Rear Lateral Pannel, Black. XT, LSVRH Rear Lateral Pannel, Black. XT, LSV
-
1000a705005546 LH Center Lateral Panel. STDLH Center Lateral Panel. STD
-
1000b705004989 LH Middle Side Pannel. XT, LSVLH Middle Side Pannel. XT, LSV
-
1020a705005547 RH Center Lateral Panel. STDRH Center Lateral Panel. STD
-
1020b705004990 RH Middle Side Pannel. XT, LSVRH Middle Side Pannel. XT, LSV
