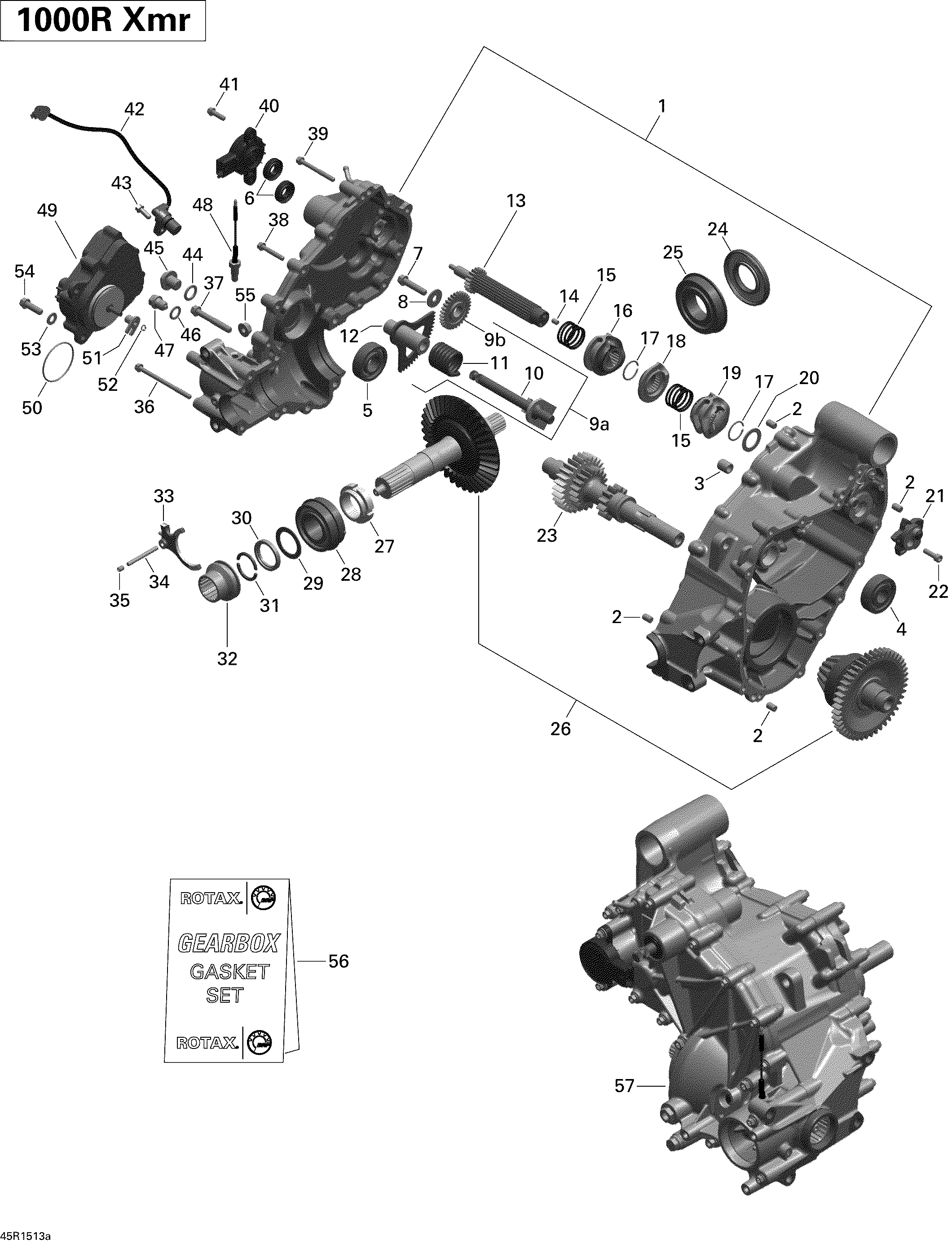

05- Gear Box 1_45R1513a для BRP Maverick 1000_XMR - 2015
-
№АртикулНазвание
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
4420932815 Ball Bearing 6303EBall Bearing 6303E
-
5420932433 Ball Bearing 6204Ball Bearing 6204
-
6420250450 Oil SealOil Seal
-
7420641188 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
8420227937 Plain WasherPlain Washer
-
9a420620929 Shift Shaft Ass'y. Includes 9a to 12Shift Shaft Ass'y. Includes 9a to 12
-
13420657232 Shift Drum Ass'y. Includes 13 to 20Shift Drum Ass'y. Includes 13 to 20
-
22420241939 Allen Screw M6 X 20Allen Screw M6 X 20
-
23420620677 CountershaftCountershaft
-
24420831955 Oil SealOil Seal
-
32420257676 Shifting Sleeve Kit. Includes 32 to 35Shifting Sleeve Kit. Includes 32 to 35
-
35420841771 Set Screw M6 X 8Set Screw M6 X 8
-
36420641228 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
37420641213 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
38420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
39420440702 Flanged Torx Screw M6 X 55Flanged Torx Screw M6 X 55
-
40420266168 Angle Rotation SensorAngle Rotation Sensor
-
41420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
42420265629 Speed SensorSpeed Sensor
-
43420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
44420650350 O-RingO-Ring
-
45420241660 Plug Screw M14 X 1.5Plug Screw M14 X 1.5
-
46420250640 Copper WasherCopper Washer
-
47420241786 Magnetic Drain PlugMagnetic Drain Plug
-
48420640192 Position SwitchPosition Switch
-
49415129174 Actuator Ass'y. Includes 49 to 52Actuator Ass'y. Includes 49 to 52
-
50293300117 O-RingO-Ring
-
51415129175 Shifting ForkShifting Fork
-
52293370042 CirclipCirclip
-
53420250311 Flat Washer 8.4 mmFlat Washer 8.4 mm
-
54420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
55420842619 Hex. Nut M8Hex. Nut M8
-
56420684149 Gasket SetGasket Set
-
57420685807 Gear BoxGear Box
