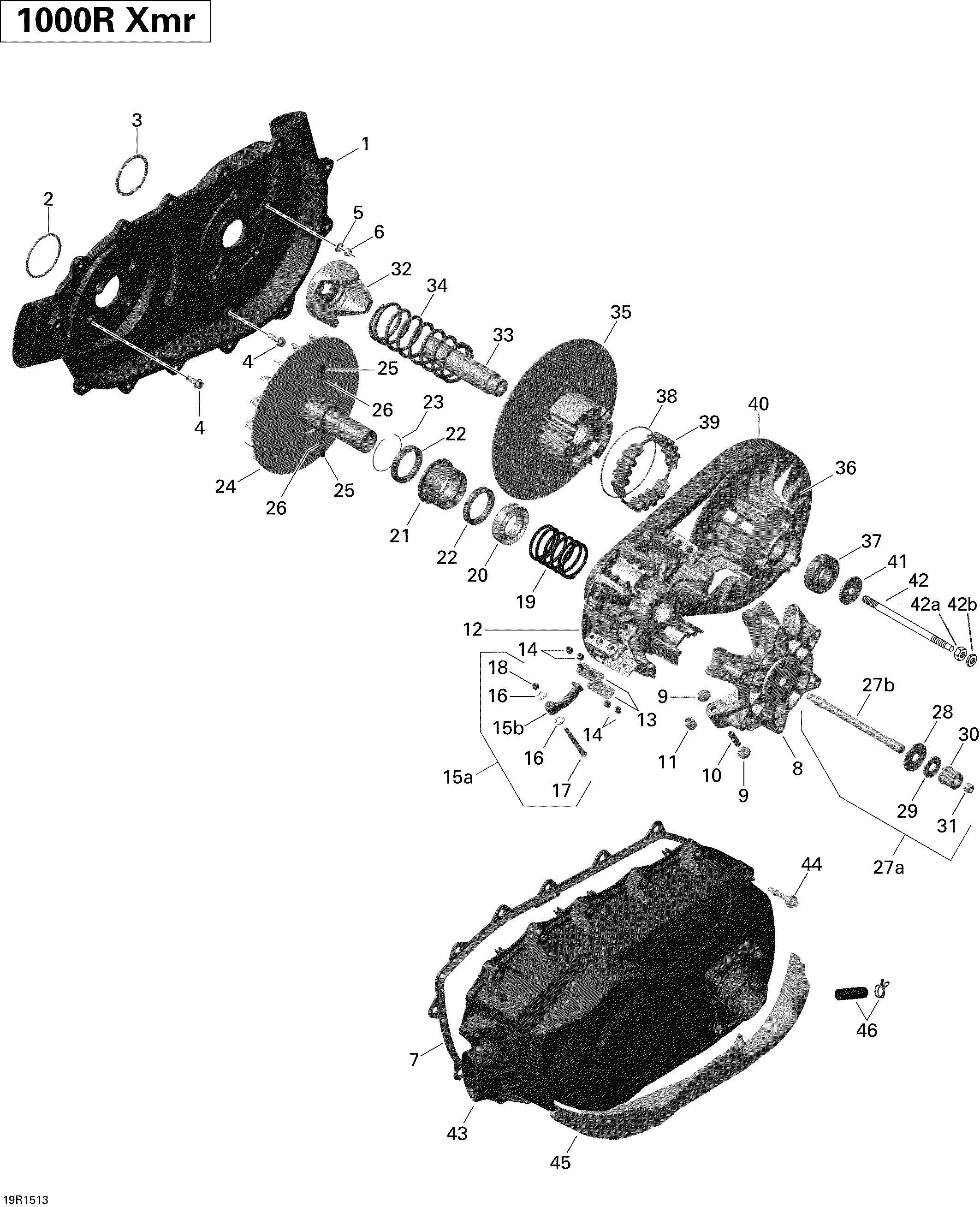

05- Transmission _19R1513 для BRP Maverick 1000_XMR - 2015
-
№АртикулНазвание
-
1420611409 CVT Air GuideCVT Air Guide
-
2420430408 O-RingO-Ring
-
3420631088 O-RingO-Ring
-
4420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
5224061121 Flat WasherFlat Washer
-
6232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
7420430126 GasketGasket
-
8420280523 Governor Cup Ass'y. Includes 8 to 11Governor Cup Ass'y. Includes 8 to 11
-
9420281296 Slider Shoe SetSlider Shoe Set
-
10417223257 Roller AxleRoller Axle
-
11420229999 RollerRoller
-
12420280462 Outher Haft Ass'y. Includes 12 to 14Outher Haft Ass'y. Includes 12 to 14
-
13420651763 Slide PlateSlide Plate
-
14232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
15a420248608 Centrifugal Lever Kit (Set Of 6). Includes 15a to 18Centrifugal Lever Kit (Set Of 6). Includes 15a to 18
-
19420238615 Compression Spring, Drive PulleyCompression Spring, Drive Pulley
-
20420627577 Spring SeatSpring Seat
-
21420657370 Drive Pulley ClutchDrive Pulley Clutch
-
22420632377 Ball BearingBall Bearing
-
23420245951 Retaining RingRetaining Ring
-
24420280577 Inner HalfInner Half
-
25420229577 Spring SleeveSpring Sleeve
-
26420239134 SpringSpring
-
27a703500842 Clutch Bolt Repair Kit. Includes 27a to 31Clutch Bolt Repair Kit. Includes 27a to 31
-
28420282830 Washer 40 mmWasher 40 mm
-
29420282820 Washer 30 mmWasher 30 mm
-
32420280474 CamCam
-
33420220914 Driven Pulley ShaftDriven Pulley Shaft
-
34420238176 Compression SpringCompression Spring
-
35420280188 Inner Half PulleyInner Half Pulley
-
36420280178 Outer Half Pulley Ass'y. Includes 36 to 39Outer Half Pulley Ass'y. Includes 36 to 39
-
37420932421 Ball BearingBall Bearing
-
38420245910 Retaining RingRetaining Ring
-
39420660124 Torque GearTorque Gear
-
40715900212 V-BeltV-Belt
-
41420627590 Thrust WasherThrust Washer
-
42420441900 Stud Screw M10 X 136Stud Screw M10 X 136
-
42a420242097 Nut M10Nut M10
-
42b420242402 Nut M10Nut M10
-
43420212286 Variator Cover. Includes 45Variator Cover. Includes 45
-
44420440567 Hex. Distance Screw M6 X 30.5Hex. Distance Screw M6 X 30.5
-
45715900388 Heat Protection MatHeat Protection Mat
-
46707001179 Drain Plug KitDrain Plug Kit
