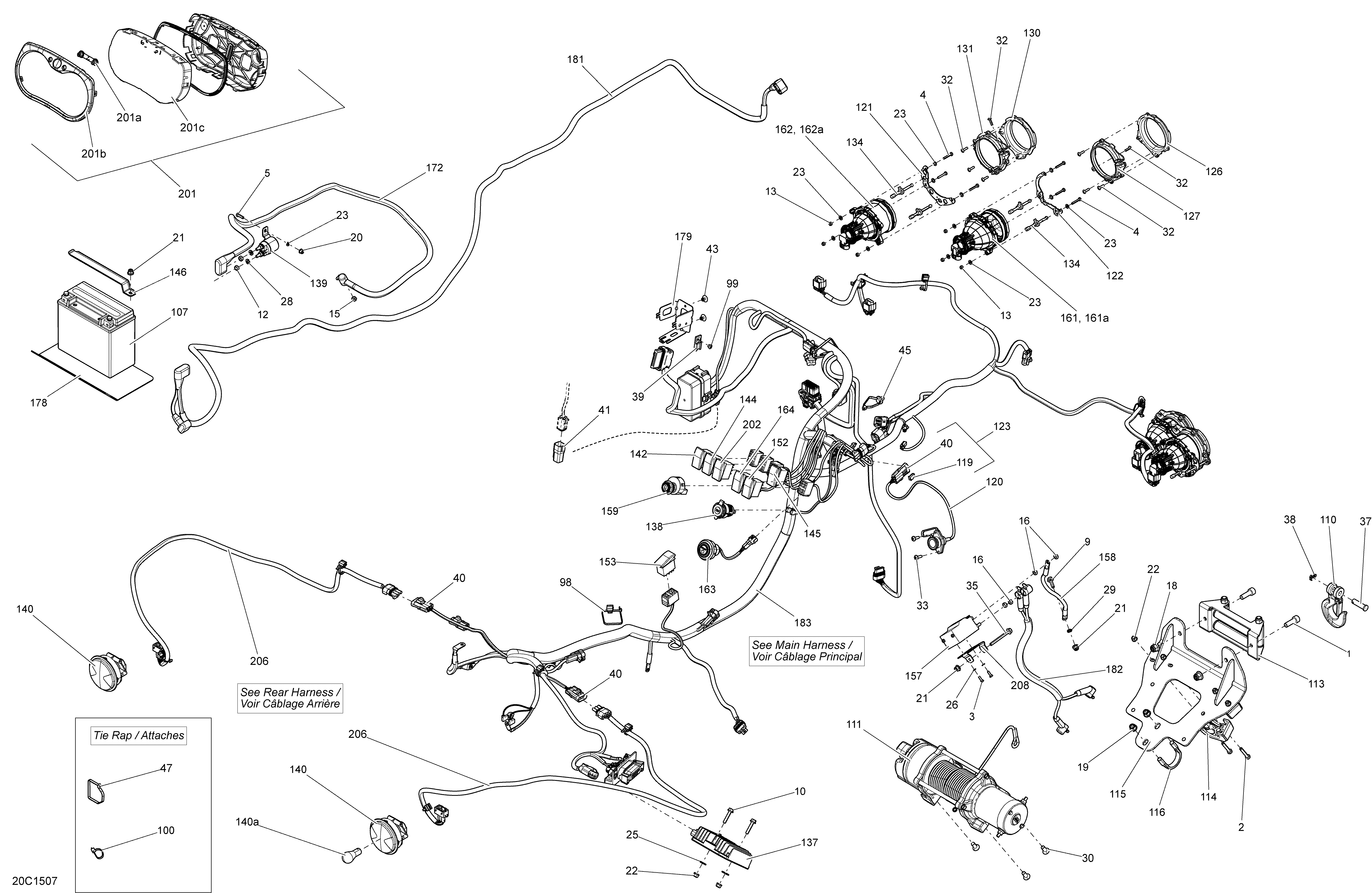

10- Electrical System _20C1507 для BRP Maverick 1000_XMR - 2015
-
№АртикулНазвание
-
1205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
2207064044 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
3207141044 Hex. Screw M4 X 10Hex. Screw M4 X 10
-
4207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
5207151644 Hex. Screw M5 X 16Hex. Screw M5 X 16
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
12232061600 Hex. Nut M6Hex. Nut M6
-
13232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
15232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
16232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
18233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
19233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
20233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
23234051410 Flat Washer M5Flat Washer M5
-
25234062670 Flat WasherFlat Washer
-
26234141601 Lock Washer 4 mmLock Washer 4 mm
-
28234161601 Lock Washer Helical M6Lock Washer Helical M6
-
29233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
30235382046 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
32250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
33250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
35250000397 Hex. Flanged Screw DIN.6921 M6 X 60Hex. Flanged Screw DIN.6921 M6 X 60
-
37250400021 Clevis PinClevis Pin
-
38250400022 Cotter PinCotter Pin
-
39270000141 ClipClip
-
40278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
41278002704 Diagnostic ConnectorDiagnostic Connector
-
43293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
45293730018 Mount DartMount Dart
-
47293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
98293750063 Clip Tie-RapClip Tie-Rap
-
99390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
100414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
107410301203 Lead Battery 18 AmperesLead Battery 18 Amperes
-
110705002329 HookHook
-
111705008547 WinchWinch
-
113715001119 Winch Cable GuideWinch Cable Guide
-
114705006999 ClampClamp
-
115705203110 Winch SupportWinch Support
-
116705203504 U-Bolt M10U-Bolt M10
-
119710000992 ClipClip
-
120710001023 Winch ConnectorWinch Connector
-
121710001115 RH High Light SupportRH High Light Support
-
121710001036 LH High Light SupportLH High Light Support
-
122710001094 RH Low Light SupportRH Low Light Support
-
122710001037 LH Low Light SupportLH Low Light Support
-
123710001059 Connector Ass'yConnector Ass'y
-
126710001081 RH Low Front HousingRH Low Front Housing
-
126710001083 LH Low Front HousingLH Low Front Housing
-
127710001082 RH Low Rear HousingRH Low Rear Housing
-
127710001084 LH Low Rear HousingLH Low Rear Housing
-
130710001085 RH High Front HousingRH High Front Housing
-
130710001087 LH High Front HousingLH High Front Housing
-
131710001086 RH High Rear HousingRH High Rear Housing
-
131710001088 LH High Rear HousingLH High Rear Housing
-
134710001147 Setting ScrewSetting Screw
-
137710001191 Voltage RegulatorVoltage Regulator
-
138710001248 Outlet DCOutlet DC
-
139710001364 Starter RelayStarter Relay
-
140710001645 Tail LightTail Light
-
140a520000758 BulbBulb
-
142710001725 Hi/Low SwitchHi/Low Switch
-
144710001737 SwitchSwitch
-
145710001781 Switch DPSSwitch DPS
-
146710001916 Battery HolderBattery Holder
-
152710002052 SwitchSwitch
-
153710002053 Switch, Over RideSwitch, Over Ride
-
157710004142 Winch SolenoidWinch Solenoid
-
158710002214 Negative CableNegative Cable
-
159710003847 Ignition SwitchIgnition Switch
-
161710002524 Low Beam Ass'yLow Beam Ass'y
-
161a415129249 Halogen BulbHalogen Bulb
-
162710002525 High Beam Ass'yHigh Beam Ass'y
-
162a415129249 Halogen BulbHalogen Bulb
-
163710002594 Engine START ButtonEngine START Button
-
164710002684 Switched AccessorySwitched Accessory
-
172710003151 Positive CablePositive Cable
-
178710003265 Heat DeflectorHeat Deflector
-
179710003335 Fuse HolderFuse Holder
-
181710003414 Winch CableWinch Cable
-
182710003418 Winch CableWinch Cable
-
183710004095 Wiring Harness AssemblyWiring Harness Assembly
-
201710003928 SpeedometerSpeedometer
-
201a415129355 Speedometer ButtonSpeedometer Button
-
201b415129348 Gauge RingGauge Ring
-
201c415129349 LensLens
-
202710003541 Switch PPS SportSwitch PPS Sport
-
206710003680 Rear HarnessRear Harness
-
208710004119 Solenoids SupportSolenoids Support
