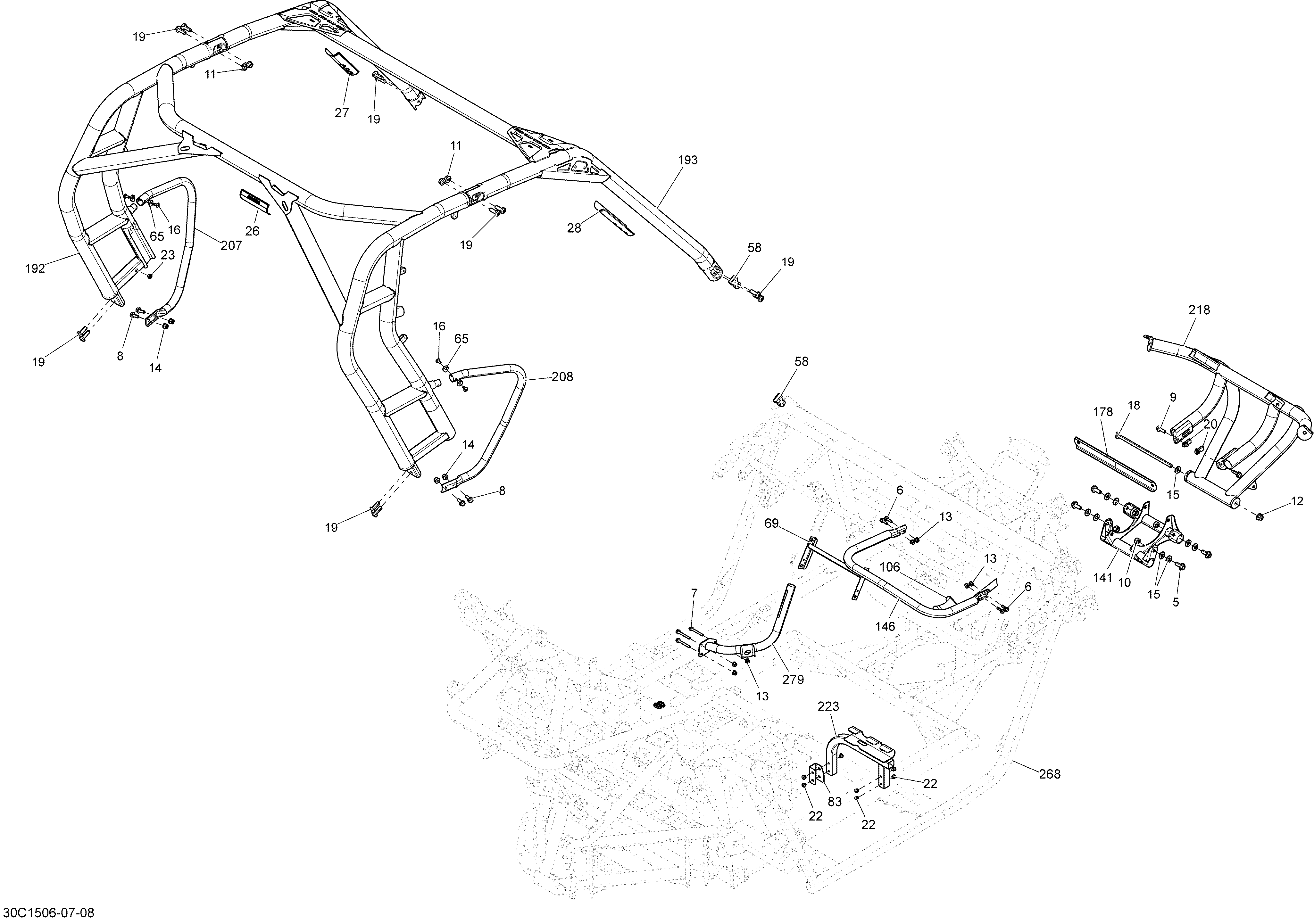

09- Frame _30C1507 для BRP Maverick 1000_XMR - 2015
-
№АртикулНазвание
-
5207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
6207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
8207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
9207382544 Hex. Flange ScrewHex. Flange Screw
-
10232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
11233101464 Hex. Elastic Flange Nut , M10 X 1.5Hex. Elastic Flange Nut , M10 X 1.5
-
12233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
13233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
14233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
16250000439 Torx Truss Screw M6 X 14Torx Truss Screw M6 X 14
-
18250000597 Hex. Flange ScrewHex. Flange Screw
-
19250000624 Screw Torx M10 X 30Screw Torx M10 X 30
-
20250100118 Panel Nut M8 X 1.25Panel Nut M8 X 1.25
-
22293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
23293450274 InsertInsert
-
26704903492 Warning LabelWarning Label
-
27704903679 Warning LabelWarning Label
-
28704903680 Warning LabelWarning Label
-
58705203415 Binding BlockBinding Block
-
65705202223 Offset WasherOffset Washer
-
69705203330 Reinforcement PanelReinforcement Panel
-
83705202602 Seat SupportSeat Support
-
141705203296 Differential SupportDifferential Support
-
146705203332 Black HandleBlack Handle
-
178705203454 Front Suspension LinkFront Suspension Link
-
192705204714 Black Cage KitBlack Cage Kit
-
192705204716 Manta Green Cage KitManta Green Cage Kit
-
207705203637 Black LH Side Protector Tube. Models with Black CageBlack LH Side Protector Tube. Models with Black Cage
-
207705204407 Green LH Side Protector Tube. Package-XMR Digital CamoGreen LH Side Protector Tube. Package-XMR Digital Camo
-
208705203640 Black RH Side Protector Tube. Models with Black CageBlack RH Side Protector Tube. Models with Black Cage
-
208705204408 Green RH Side Protector Tube. Package-XMR Digital CamoGreen RH Side Protector Tube. Package-XMR Digital Camo
-
218705203685 Black Front BumperBlack Front Bumper
-
268715002496 Black Frame Ass'yBlack Frame Ass'y
-
279705204399 Black Console HandleBlack Console Handle
