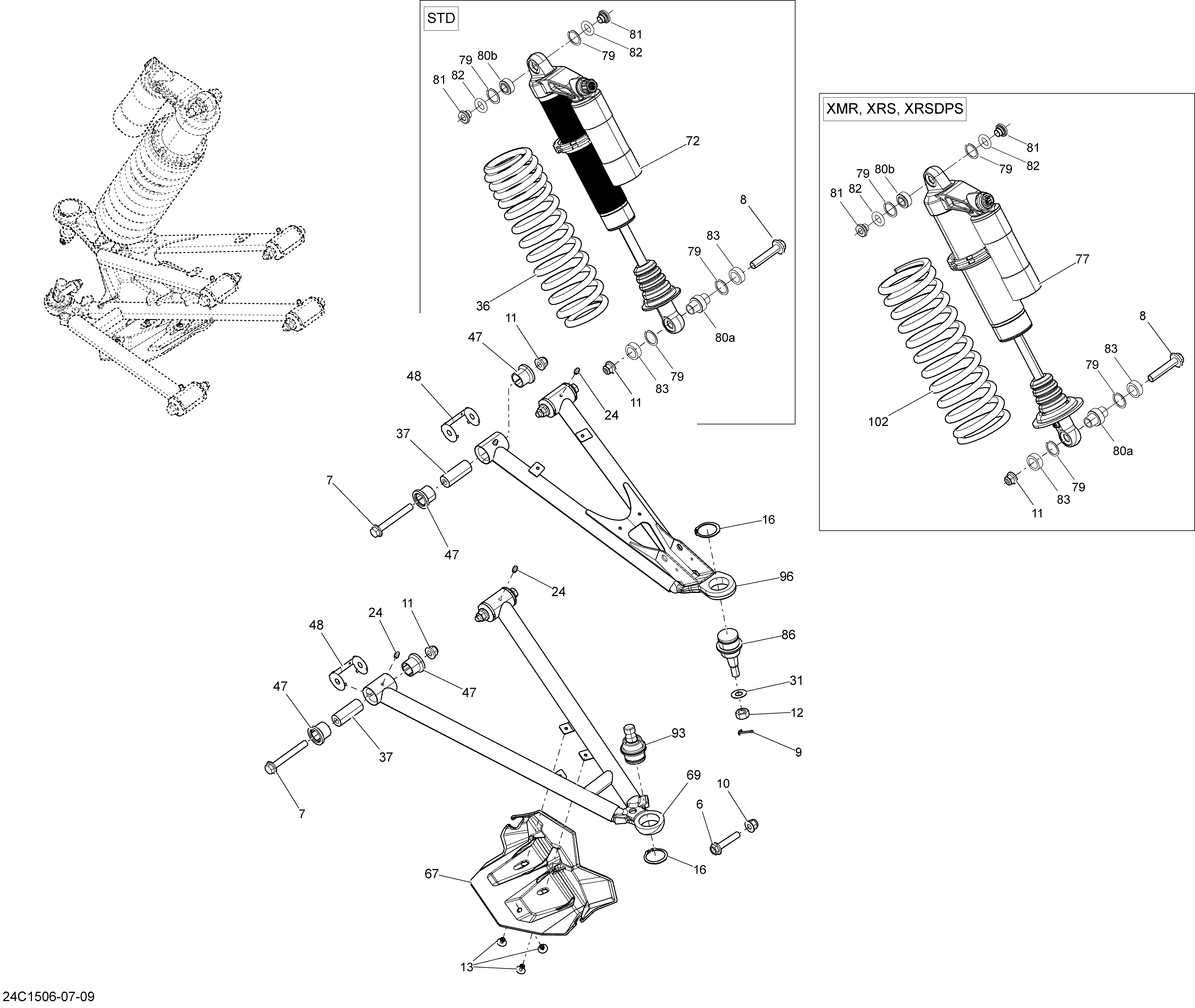

07- Front Suspension _24C1507 для BRP Maverick 1000_XMR - 2015
-
№АртикулНазвание
-
6207605044 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
7207608046 Hex Flanged Screw M10 X 80Hex Flanged Screw M10 X 80
-
8207626046 Hex. Flanged Screw M12 X 60Hex. Flanged Screw M12 X 60
-
9211400017 Cotter PinCotter Pin
-
10233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
11233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
12250100099 Nut M12Nut M12
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
16293370035 CirclipCirclip
-
24408200700 Grease FittingGrease Fitting
-
31250200086 Flat WasherFlat Washer
-
37706201590 SleeveSleeve
-
47706201659 CushionCushion
-
48706201660 Wear PlateWear Plate
-
67706201829 LH Joint ProtectorLH Joint Protector
-
67706201830 RH Joint ProtectorRH Joint Protector
-
69706201861 LH Front Lower ArmLH Front Lower Arm
-
69706201862 RH Front Lower ArmRH Front Lower Arm
-
77706202141 Front ShockFront Shock
-
79715900252 Retaining RingRetaining Ring
-
80a715900330 Spherical BearingSpherical Bearing
-
80b715900329 Spherical BearingSpherical Bearing
-
81715900267 Interior BushingInterior Bushing
-
82715900268 O-Ring BushingO-Ring Bushing
-
83715900331 ProtectorProtector
-
86706202044 Ball JointBall Joint
-
93706202045 Ball JointBall Joint
-
96706202090 Yellow Front Upper Arm. Package-XMR BlackYellow Front Upper Arm. Package-XMR Black
-
96706202092 Manta Green Front Upper Arm. Package-XMR Digital CamoManta Green Front Upper Arm. Package-XMR Digital Camo
-
102706202141 Front Shock. Package-XMR BlackFront Shock. Package-XMR Black
-
102706202142 Yellow Front Spring. Package-XMR BlackYellow Front Spring. Package-XMR Black
-
102706202141 Front Shock. Package-XMR Digital CamoFront Shock. Package-XMR Digital Camo
-
102706202144 Manta Green Front Spring. Package-XMR Digital CamoManta Green Front Spring. Package-XMR Digital Camo
