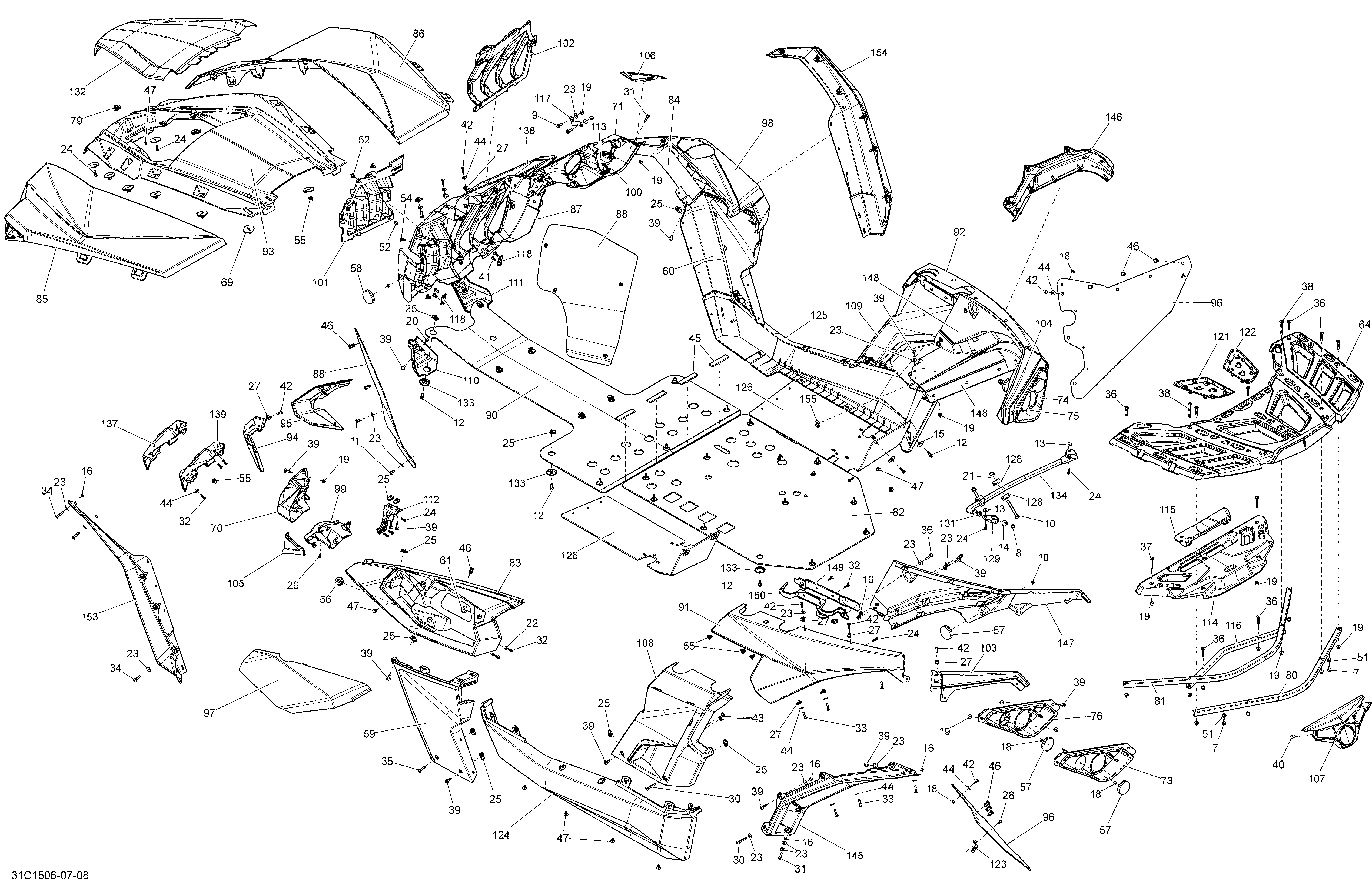

09- Body And Accessories _31C1507 для BRP Maverick 1000_XMR - 2015
-
№АртикулНазвание
-
7207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
9207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
11210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
12210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
13224060201 Flat WasherFlat Washer
-
14224061201 Flat WasherFlat Washer
-
15224081301 Flat WasherFlat Washer
-
16232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
18233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
19233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
21233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
22234051410 Flat Washer M5Flat Washer M5
-
23234062670 Flat WasherFlat Washer
-
24241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
25250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
27250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
29250000202 Self Tapping Screw #8 X 5/8Self Tapping Screw #8 X 5/8
-
30250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
31250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
32250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
33250000300 Torx Screw M5 X 25Torx Screw M5 X 25
-
34250000371 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
35250000398 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
36250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
36250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
37250000647 Torx Screw M6 X 45Torx Screw M6 X 45
-
38250000648 Torx Screw M6 X 60Torx Screw M6 X 60
-
39250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
40250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
41250000721 Torx ScrewTorx Screw
-
42250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
43250100129 Push NutPush Nut
-
44250200025 Washer M5Washer M5
-
45291001932 PadPad
-
46293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
47293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
51293450274 InsertInsert
-
52293830005 Rubber BumperRubber Bumper
-
54414644300 DartDart
-
55517302785 ClipClip
-
56517303756 GrommetGrommet
-
57705002408 Red ReflectorRed Reflector
-
58705002409 Amber ReflectorAmber Reflector
-
59705007846 Yellow LH Front Lateral Pannel. Model-Black/YellowYellow LH Front Lateral Pannel. Model-Black/Yellow
-
59705008486 Digital CAMO LH Front Lateral Pannel. Model-Digital CAMODigital CAMO LH Front Lateral Pannel. Model-Digital CAMO
-
60705007845 Yellow RH Front Lateral Pannel. Model-Black/YellowYellow RH Front Lateral Pannel. Model-Black/Yellow
-
60705008487 Digital CAMO RH Front Lateral Pannel. Model-Digital CAMODigital CAMO RH Front Lateral Pannel. Model-Digital CAMO
-
61705003264 GrommetGrommet
-
64715002367 Rear Rack KITRear Rack KIT
-
69705003841 Support PlateSupport Plate
-
70705004508 LH Front FaciaLH Front Facia
-
71705004509 RH Front FaciaRH Front Facia
-
73705004731 LH Rear FaciaLH Rear Facia
-
74705004732 RH Rear FaciaRH Rear Facia
-
79705005156 Oval WasherOval Washer
-
80705005469 TubeTube
-
81705005470 TubeTube
-
82705005480 Rear Skid PlateRear Skid Plate
-
83705006558 Black LH Front Fender. Model-Black/YellowBlack LH Front Fender. Model-Black/Yellow
-
83705008466 Digital CAMO LH Front Fender. Model-Digital CAMODigital CAMO LH Front Fender. Model-Digital CAMO
-
84705006559 Black RH Front Fender. Model-Black/YellowBlack RH Front Fender. Model-Black/Yellow
-
84705008467 Digital CAMO RH Front Fender. Model-Digital CAMODigital CAMO RH Front Fender. Model-Digital CAMO
-
85705005781 Yellow LH Fixe Hood. Model-Black/YellowYellow LH Fixe Hood. Model-Black/Yellow
-
85705008481 Digital CAMO LH Fixe Hood. Model-Digital CAMODigital CAMO LH Fixe Hood. Model-Digital CAMO
-
86705005782 Yellow RH Fixe Hood. Model-Black/YellowYellow RH Fixe Hood. Model-Black/Yellow
-
86705008482 Digital CAMO RH Fixe Hood. Model-Digital CAMODigital CAMO RH Fixe Hood. Model-Digital CAMO
-
87705005784 Front Radiator GrillFront Radiator Grill
-
88705007827 Inner FenderInner Fender
-
90705005798 Front Skid PlateFront Skid Plate
-
91705009035 Black LH Rear Fender. Model-Black/YellowBlack LH Rear Fender. Model-Black/Yellow
-
91705008496 Digital CAMO LH Rear Fender. Model-Digital CAMODigital CAMO LH Rear Fender. Model-Digital CAMO
-
92705009036 Black RH Rear Fender. Model-Black/YellowBlack RH Rear Fender. Model-Black/Yellow
-
92705008497 Digital CAMO RH Rear Fender. Model-Digital CAMODigital CAMO RH Rear Fender. Model-Digital CAMO
-
93705005821 Fixe Center HoodFixe Center Hood
-
94705005824 Yellow LH Bumper Cap. Model-Black/YellowYellow LH Bumper Cap. Model-Black/Yellow
-
94705008613 Manta Green LH Bumper Cap. Model-Digital CAMOManta Green LH Bumper Cap. Model-Digital CAMO
-
95705005825 Yellow RH Bumper Cap. Model-Black/YellowYellow RH Bumper Cap. Model-Black/Yellow
-
95705008614 Manta Green RH Bumper Cap. Model-Digital CAMOManta Green RH Bumper Cap. Model-Digital CAMO
-
96705007828 DeflectorDeflector
-
97705006566 Black LH Cover Front Fender. Model-Black/YellowBlack LH Cover Front Fender. Model-Black/Yellow
-
97705008477 Digital CAMO LH Cover Front Fender. Model-Digital CAMODigital CAMO LH Cover Front Fender. Model-Digital CAMO
-
98705006567 Black RH Cover Front Fender. Model-Black/YellowBlack RH Cover Front Fender. Model-Black/Yellow
-
98705008478 Digital CAMO RH Cover Front Fender. Model-Digital CAMODigital CAMO RH Cover Front Fender. Model-Digital CAMO
-
99705006562 Black LH Front Fender Trim. Model-Black/YellowBlack LH Front Fender Trim. Model-Black/Yellow
-
99705008611 Manta Green LH Front Fender Trim. Model-Digital CAMOManta Green LH Front Fender Trim. Model-Digital CAMO
-
100705006563 Black RH Front Fender Trim. Model-Black/YellowBlack RH Front Fender Trim. Model-Black/Yellow
-
100705008612 Manta Green RH Front Fender Trim. Model-Digital CAMOManta Green RH Front Fender Trim. Model-Digital CAMO
-
101705005983 LH Rear Radiator GrillLH Rear Radiator Grill
-
102705005984 RH Rear Radiator GrillRH Rear Radiator Grill
-
103705006583 Black LH Rear Facia Trim. Model-Black/YellowBlack LH Rear Facia Trim. Model-Black/Yellow
-
103705008504 Digital CAMO LH Rear Facia Trim. Model-Digital CAMODigital CAMO LH Rear Facia Trim. Model-Digital CAMO
-
104705006584 Black RH Rear Facia Trim. Model-Black/YellowBlack RH Rear Facia Trim. Model-Black/Yellow
-
104705008505 Digital CAMO RH Rear Facia Trim. Model-Digital CAMODigital CAMO RH Rear Facia Trim. Model-Digital CAMO
-
105705005992 LH Front Facia TrimLH Front Facia Trim
-
106705005993 RH Front Facia TrimRH Front Facia Trim
-
107705005994 LOGO SupportLOGO Support
-
108705007864 Yellow LH Rear Lateral Panel. Model-Black/YellowYellow LH Rear Lateral Panel. Model-Black/Yellow
-
108705008490 Digital CAMO LH Rear Lateral Panel. Model-Digital CAMODigital CAMO LH Rear Lateral Panel. Model-Digital CAMO
-
109705007865 Yellow RH Rear Lateral Panel. Model-Black/YellowYellow RH Rear Lateral Panel. Model-Black/Yellow
-
109705008491 Digital CAMO RH Rear Lateral Panel. Model-Digital CAMODigital CAMO RH Rear Lateral Panel. Model-Digital CAMO
-
110705006038 LH Bumper Skid CapLH Bumper Skid Cap
-
111705006039 RH Bumper Skid CapRH Bumper Skid Cap
-
112705006078 LH Front Facia SupportLH Front Facia Support
-
113705006079 RH Front Facia SupportRH Front Facia Support
-
114705006128 Bagage Central RackBagage Central Rack
-
115705006132 Central Bagage Rack CapCentral Bagage Rack Cap
-
116705006279 Bagage Rack TubeBagage Rack Tube
-
117705006623 ClampClamp
-
118705006635 Radiator Grill BracketRadiator Grill Bracket
-
121705006713 LH Bagage Rack CoverLH Bagage Rack Cover
-
122705006714 RH Bagage Rack CoverRH Bagage Rack Cover
-
124705006991 LH Lateral Middle PanelLH Lateral Middle Panel
-
125705006992 RH Lateral Middle PanelRH Lateral Middle Panel
-
126705007038 Lateral Skid PlateLateral Skid Plate
-
128705007044 Rear Support Facia ClipRear Support Facia Clip
-
129705007045 LH Rear Facia SupportLH Rear Facia Support
-
129705007046 RH Rear Facia SupportRH Rear Facia Support
-
131705007047 Tube ConnectorTube Connector
-
132705007060 Black Removable HoodBlack Removable Hood
-
133705007171 CupCup
-
134705007299 Body TubeBody Tube
-
137705007497 LH Bumper GrillLH Bumper Grill
-
138705007498 RH Bumper GrillRH Bumper Grill
-
145705007637 LH Rear DeflectorLH Rear Deflector
-
146705007638 RH Rear DeflectorRH Rear Deflector
-
147705007910 LH Rear Inner FenderLH Rear Inner Fender
-
148705007911 RH Rear Inner FenderRH Rear Inner Fender
-
149705007917 Support PlateSupport Plate
-
150705007918 LH Rear Fender SupportLH Rear Fender Support
-
150705007919 RH Rear Fender SupportRH Rear Fender Support
-
153705008988 LH Front DeflectorLH Front Deflector
-
154705008989 RH Front DeflectorRH Front Deflector
