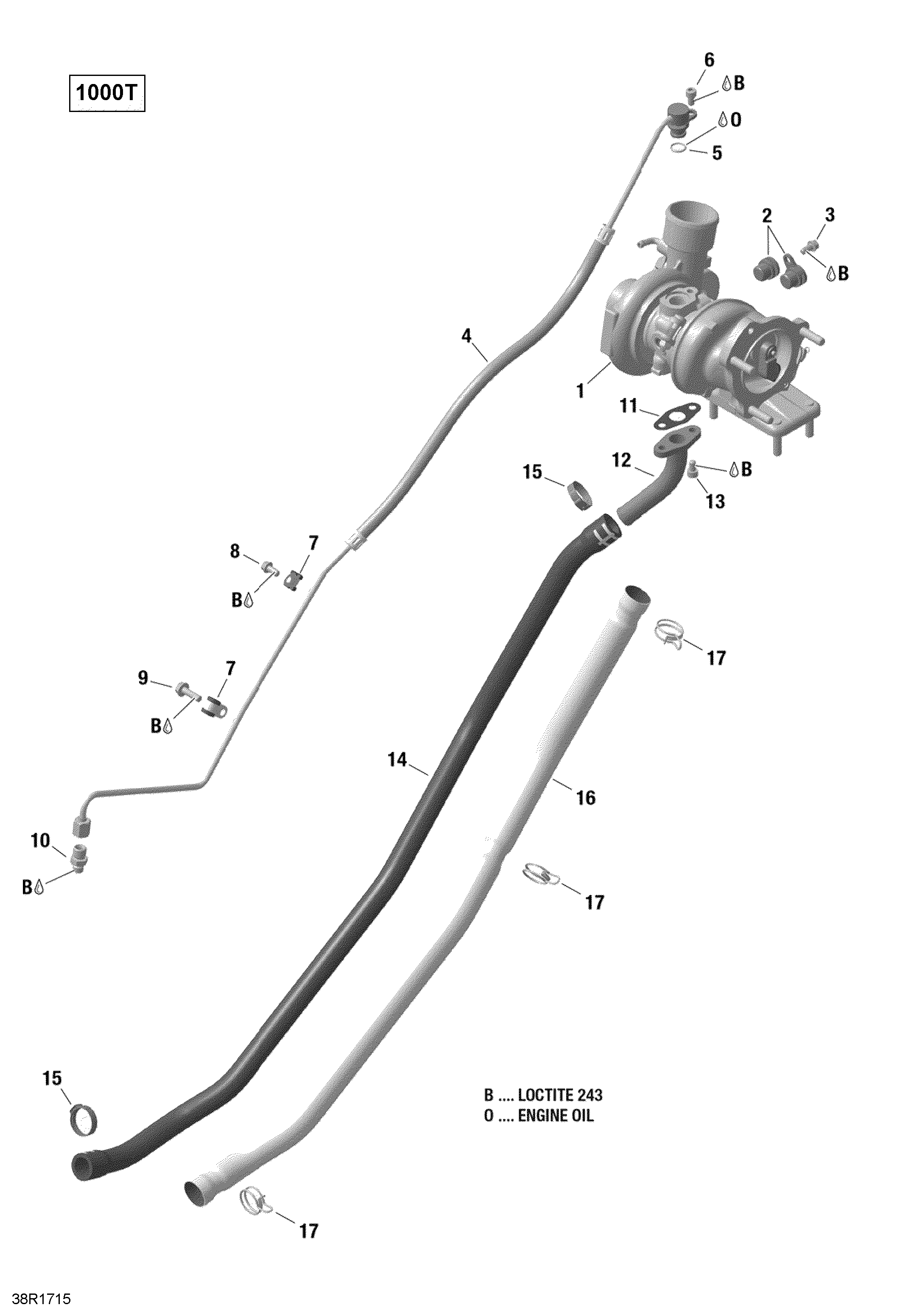

01- Turbocharger для BRP 1-Maverick - 2017
-
№АртикулНазвание
-
1420893840 TurbochargerTurbocharger
-
2420622030 PlugPlug
-
3420440149 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
4420456353 Oil Line. Include 7Oil Line. Include 7
-
5420650928 O-RingO-Ring
-
6420440164 Flanged Hex. Screw M6 X 16Flanged Hex. Screw M6 X 16
-
8420440149 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
9420441311 ScrewScrew
-
10420456420 Adapter M10/M12Adapter M10/M12
-
11420631205 GasketGasket
-
12420456400 Oil TubeOil Tube
-
13420440164 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
14420456360 Oil LineOil Line
-
15420851668 ClampClamp
-
16420860652 Protection TubeProtection Tube
-
17420851440 ClampClamp
