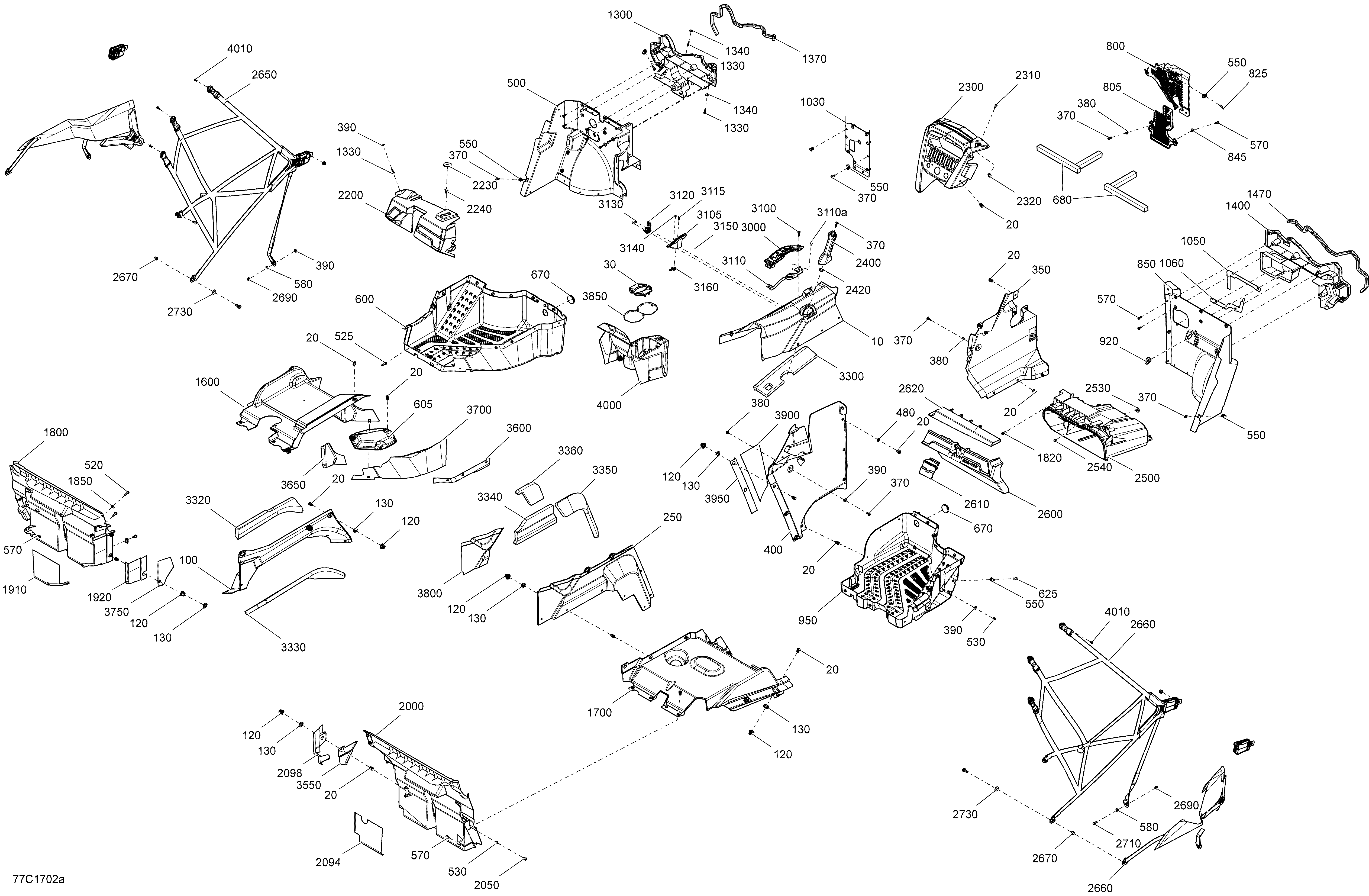

09- Cab Interior - Except Package XMR для BRP 1-Maverick - 2017
-
№АртикулНазвание
-
10715004335 Console Kit. Package XDS STD North AmericaConsole Kit. Package XDS STD North America
-
10715004177 Console Kit. Package XDS STD InternationalConsole Kit. Package XDS STD International
-
10715003355 Console Kit. Engine 1000R EFI Except EuropeConsole Kit. Engine 1000R EFI Except Europe
-
10715003359 Console Kit. Engine 1000R EFI EuropeConsole Kit. Engine 1000R EFI Europe
-
20293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
30707900036 Cup RetainerCup Retainer
-
100707900001 LH Side Console. Engine 1000R EFILH Side Console. Engine 1000R EFI
-
100707900308 LH Side Console. Engine 1000T EFILH Side Console. Engine 1000T EFI
-
120707900133 InsertInsert
-
130503189273 WasherWasher
-
250707900002 RH Side ConsoleRH Side Console
-
350707900193 Front Side Dash PanelFront Side Dash Panel
-
370250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
380293450274 InsertInsert
-
390234062670 Flat Washer, StainlessFlat Washer, Stainless
-
400707900021 RH Fixe Side ConsoleRH Fixe Side Console
-
480506151252 WasherWasher
-
500707900181 LH Front FloorLH Front Floor
-
520250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
525250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
530233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
550250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
570250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
580234062410 Flat Washer 6 mmFlat Washer 6 mm
-
600707900022 LH Lower Floor. Engine 1000R EFILH Lower Floor. Engine 1000R EFI
-
600707900309 LH Lower Floor. Engine 1000T EFILH Lower Floor. Engine 1000T EFI
-
605707900311 Floor Cap. Engine 1000T EFIFloor Cap. Engine 1000T EFI
-
625250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
670293250242 Rubber CoverRubber Cover
-
680293250381 Seal TraySeal Tray
-
800707900178 GrillGrill
-
805707900180 GrillGrill
-
825250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
845250200025 Washer M5Washer M5
-
850707900004 RH Front FloorRH Front Floor
-
920705003668 Oblong GrommetOblong Grommet
-
950707900023 RH Lower FloorRH Lower Floor
-
1030707900152 Deflector. Package XC_XDSDeflector. Package XC_XDS
-
1030707900204 Deflector. Except Package XC, XDSDeflector. Except Package XC, XDS
-
1050293250252 Upper SealUpper Seal
-
1060293250253 Bottom SealBottom Seal
-
1300707900561 Floor Support LHFloor Support LH
-
1330250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
1340224060201 Flat WasherFlat Washer
-
1370293200093 Neoprene SealNeoprene Seal
-
1400707900562 Floor Support RHFloor Support RH
-
1470293200093 Neoprene SealNeoprene Seal
-
1600707900218 LH Under Seat Plate. Engine 1000R EFILH Under Seat Plate. Engine 1000R EFI
-
1600707900310 LH Under Seat Plate. Engine 1000T EFILH Under Seat Plate. Engine 1000T EFI
-
1700707900006 RH Under Seat PlateRH Under Seat Plate
-
1800707900164 LH Rear DeflectorLH Rear Deflector
-
1820207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1850250200040 Flat WasherFlat Washer
-
1910707900182 Heat ShieldHeat Shield
-
1920707900183 Heat ShieldHeat Shield
-
2000707900166 RH Rear DeflectorRH Rear Deflector
-
2050250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
2094707900167 Heat ShieldHeat Shield
-
2098707900184 Heat ShieldHeat Shield
-
2200715001250 Dashboard Ass'yDashboard Ass'y
-
2230705003841 Support PlateSupport Plate
-
2240517302785 ClipClip
-
2300715002178 Central Dashboard Ass'yCentral Dashboard Ass'y
-
2310250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
2320250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
2400707900011 Passenger HandlePassenger Handle
-
2420707900048 Connector TubeConnector Tube
-
2500707900009 Storage BinStorage Bin
-
2530414859400 CapCap
-
2540293830005 Rubber BumperRubber Bumper
-
2600707900221 Luggage Cover KitLuggage Cover Kit
-
2610707900031 LatchLatch
-
2620707900062 Trim Glove BoxTrim Glove Box
-
2650707900237 Front LH Safety Net. Include Buckle 715900398Front LH Safety Net. Include Buckle 715900398
-
2660707900238 Front RH Safety Net. Include Buckle 715900398Front RH Safety Net. Include Buckle 715900398
-
2670233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2690233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2710207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2730234082410 Flat Washer 8 mmFlat Washer 8 mm
-
3000707900070 Lever Indicator. Engine 1000R EFI Except EuropeLever Indicator. Engine 1000R EFI Except Europe
-
3000707900071 Lever Indicator. Engine 1000R EFI EuropeLever Indicator. Engine 1000R EFI Europe
-
3000707900088 Shift Lever Indicator. Engine 1000T EFIShift Lever Indicator. Engine 1000T EFI
-
3100250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
3105707900373 Padlock Trim. Package XDSPadlock Trim. Package XDS
-
3110707900303 Lock Support. Engine 1000R EFI EuropeLock Support. Engine 1000R EFI Europe
-
3115250000578 Torx Truss Screw M5 X 16. Package XDSTorx Truss Screw M5 X 16. Package XDS
-
3120707000666 Lock. EuropeLock. Europe
-
3130205951046 Socket Head Screw M5 X 10. EuropeSocket Head Screw M5 X 10. Europe
-
3140250000577 Torx Truss K40 X 12. Package XDSTorx Truss K40 X 12. Package XDS
-
3140390401400 Rivet. Engine 1000R EFI EuropeRivet. Engine 1000R EFI Europe
-
3150391301000 Washer. Engine 1000R EFI EuropeWasher. Engine 1000R EFI Europe
-
3160707900060 Cap. EuropeCap. Europe
-
3300707900214 Front Central Console Foam. Engine 1000R EFIFront Central Console Foam. Engine 1000R EFI
-
3320707900043 LH Upper Lateral Console Foam. Engine 1000R EFILH Upper Lateral Console Foam. Engine 1000R EFI
-
3320707900312 LH Upper Lateral Console Foam. Engine 1000T EFILH Upper Lateral Console Foam. Engine 1000T EFI
-
3330707900044 LH Lower Lateral Console Foam. Engine 1000R EFILH Lower Lateral Console Foam. Engine 1000R EFI
-
3340707900045 RH Lateral Console FoamRH Lateral Console Foam
-
3350707900055 RH Lateral Console FoamRH Lateral Console Foam
-
3360707900056 RH Lateral Console FoamRH Lateral Console Foam
-
3550707900148 Heat SheetHeat Sheet
-
3600707900149 Heat Sheet. Engine 1000R EFIHeat Sheet. Engine 1000R EFI
-
3600707900313 Heat Sheet. Engine 1000T EFIHeat Sheet. Engine 1000T EFI
-
3650707900150 Heat Sheet. Engine 1000R EFIHeat Sheet. Engine 1000R EFI
-
3650707900314 Heat Sheet. Engine 1000T EFIHeat Sheet. Engine 1000T EFI
-
3700707900151 Heat Sheet. Engine 1000R EFIHeat Sheet. Engine 1000R EFI
-
3700707900315 Heat Sheet. Engine 1000T EFIHeat Sheet. Engine 1000T EFI
-
3750707900146 Heat SheetHeat Sheet
-
3800707900147 Heat SheetHeat Sheet
-
3850707900145 Heat Sheet. Engine 1000R EFIHeat Sheet. Engine 1000R EFI
-
3850707900302 Heat Sheet. Engine 1000T EFIHeat Sheet. Engine 1000T EFI
-
3900707900190 Heat SheetHeat Sheet
-
3950707900191 Heat SheetHeat Sheet
-
4000707900278 Rear Lower Console. Engine 1000T EFIRear Lower Console. Engine 1000T EFI
-
4010250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
3110>3110a707900376 Lock Support Ass'y. Package XDS. Includes 3110 to 3110aLock Support Ass'y. Package XDS. Includes 3110 to 3110a
-
3110a293450268 Insert. Package XDSInsert. Package XDS
