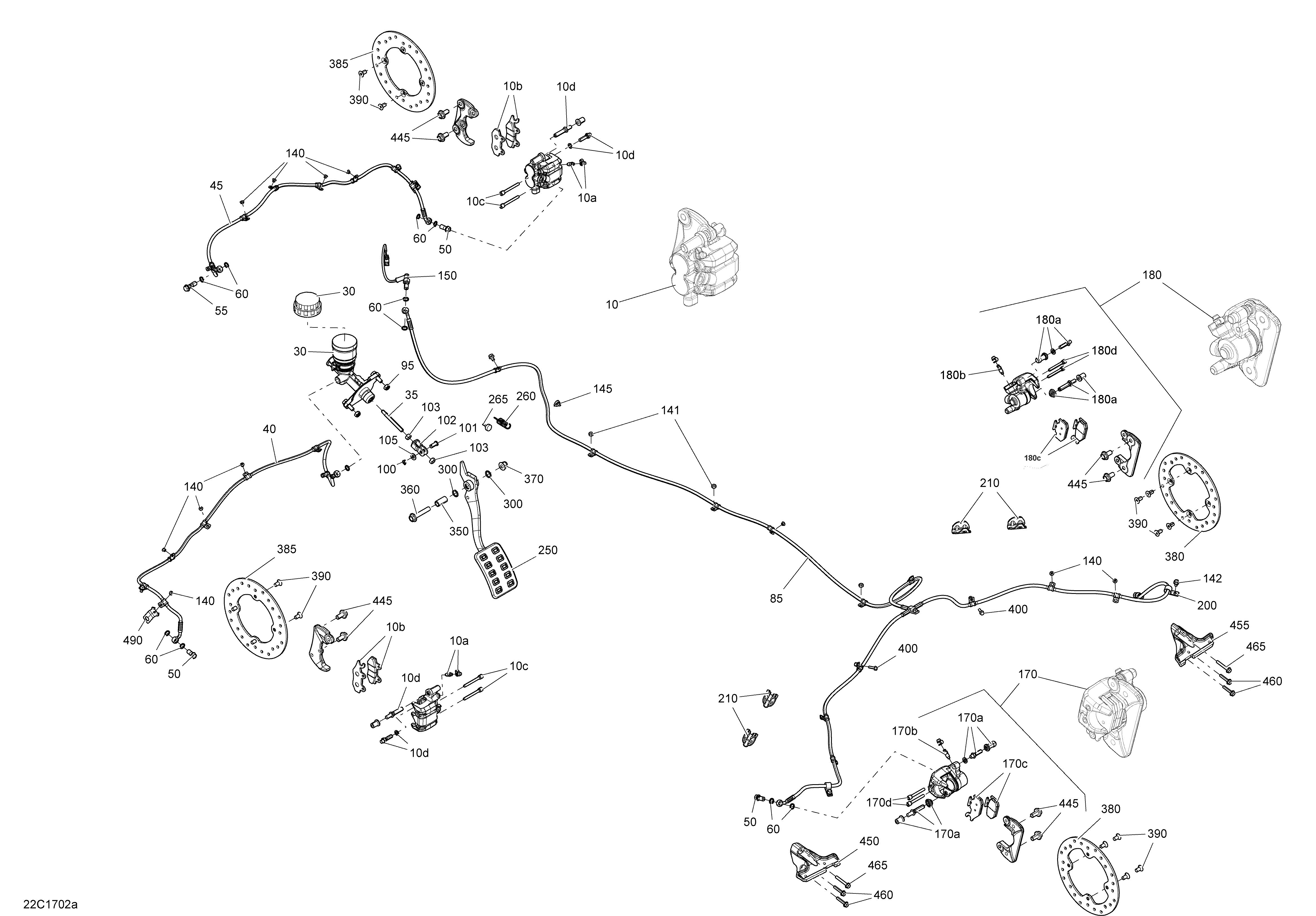

06- Brakes - All Models для BRP 1-Maverick - 2017
-
№АртикулНазвание
-
10705600678 RH Caliper. Package XC, XC DPS, XXC, DPS. Includes 10 to 10dRH Caliper. Package XC, XC DPS, XXC, DPS. Includes 10 to 10d
-
10705601129 RH Caliper Ass'y. Package XDS, XMR, XDS STD. Includes 10 to 10dRH Caliper Ass'y. Package XDS, XMR, XDS STD. Includes 10 to 10d
-
10705600679 LH Caliper. Package XC, XC DPS, XXC, DPS. Includes 10 to 10dLH Caliper. Package XC, XC DPS, XXC, DPS. Includes 10 to 10d
-
10705601128 LH Caliper Ass'y. Package XDS, XMR, XDS STD. Includes 10 to 10dLH Caliper Ass'y. Package XDS, XMR, XDS STD. Includes 10 to 10d
-
10a705600080 Bleeding ScrewBleeding Screw
-
10b715500336 Brake Pad Kit RH. Package XC, XC DPS, XXC, DPSBrake Pad Kit RH. Package XC, XC DPS, XXC, DPS
-
10b705601150 Brake Pad Kit RH. Package XDS, XMR, XDS STDBrake Pad Kit RH. Package XDS, XMR, XDS STD
-
10b715500335 Brake Pad Kit LH. Package XC, XC DPS, XXC, DPSBrake Pad Kit LH. Package XC, XC DPS, XXC, DPS
-
10b705601149 Brake Pad Kit LH. Package XDS, XMR, XDS STDBrake Pad Kit LH. Package XDS, XMR, XDS STD
-
10c715500337 Pin Kit. Package XC, XC DPS, XXC, DPSPin Kit. Package XC, XC DPS, XXC, DPS
-
10c705601151 Hanger Pin Kit. Package XDS, XMR, XDS STDHanger Pin Kit. Package XDS, XMR, XDS STD
-
10d715500383 Spring Boot Bolt Kit. Package XC, XC DPS, XXC, DPSSpring Boot Bolt Kit. Package XC, XC DPS, XXC, DPS
-
10d715500385 Spring And Bolt Kit. Package XDS, XMR, XDS STDSpring And Bolt Kit. Package XDS, XMR, XDS STD
-
30705601505 Master Cylinder Ass'yMaster Cylinder Ass'y
-
35705600833 Master Cylinder RodMaster Cylinder Rod
-
40705601079 LH Front Flexible Hose. Package DPSLH Front Flexible Hose. Package DPS
-
40705601192 LH Front Flexible Hose Ass'y. Package XMR, XDS STD, XDSLH Front Flexible Hose Ass'y. Package XMR, XDS STD, XDS
-
40705601219 LH Front Flexible Hose Ass'y. Package XC, XCDPS, XXCLH Front Flexible Hose Ass'y. Package XC, XCDPS, XXC
-
45705601080 RH Front Flexible Hose. Package DPSRH Front Flexible Hose. Package DPS
-
45705601193 RH Front Flexible Hose Ass'y. Package XMR, XDS STD, XDSRH Front Flexible Hose Ass'y. Package XMR, XDS STD, XDS
-
45705601220 RH Front Flexible Hose Ass'y. Package XC, XCDPS, XXCRH Front Flexible Hose Ass'y. Package XC, XCDPS, XXC
-
50705600609 Banjo BoltBanjo Bolt
-
55705600958 Banjo BoltBanjo Bolt
-
60705600310 Copper WasherCopper Washer
-
85705601145 Rear Flexible Hose. Package XC, XCDPS, XXCRear Flexible Hose. Package XC, XCDPS, XXC
-
85705601218 Rear Flexible Hose. Package DPS, XMRRear Flexible Hose. Package DPS, XMR
-
85705601529 Rear Flexible Hose. Package XDS STD, XDSRear Flexible Hose. Package XDS STD, XDS
-
95232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
100371800700 Cotter PinCotter Pin
-
101250400058 PinPin
-
102705601142 YokeYoke
-
103232081414 Hex. Nut M8Hex. Nut M8
-
105234081430 Flat Washer M8Flat Washer M8
-
140390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
141232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
142210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
145414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
150705601250 Brake SwitchBrake Switch
-
170705601089 LH Caliper Ass'y. Includes 170 to 170dLH Caliper Ass'y. Includes 170 to 170d
-
170a715500384 Spring, Protector And Bolt KitSpring, Protector And Bolt Kit
-
170b705600080 Bleeding ScrewBleeding Screw
-
170c705600398 LH Brake Pad KitLH Brake Pad Kit
-
170d705600081 Pin KitPin Kit
-
180705601090 RH Caliper Ass'y. Includes 180 to 180dRH Caliper Ass'y. Includes 180 to 180d
-
180a715500384 Spring, Protector And Bolt KitSpring, Protector And Bolt Kit
-
180b705600080 Bleeding ScrewBleeding Screw
-
180c705601147 RH Brake Pad KitRH Brake Pad Kit
-
180d705600081 Pin KitPin Kit
-
200518321570 Open ClampOpen Clamp
-
210705601380 Hose Clamp. Package XDS, XDS DPSHose Clamp. Package XDS, XDS DPS
-
250705600724 Brake PedalBrake Pedal
-
260705600792 Brake Pedal SpringBrake Pedal Spring
-
265708000759 Rubber StopperRubber Stopper
-
300293300144 O-RingO-Ring
-
350705600815 Inner SpacerInner Spacer
-
360207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
370233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
380705600999 Disc BrakeDisc Brake
-
385705601178 Disc BrakeDisc Brake
-
390235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
400210251650 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
445250000601 Hex. Flanged Screw M10 X 20, Scotch GripHex. Flanged Screw M10 X 20, Scotch Grip
-
450705601403 LH DeflectorLH Deflector
-
455705601404 RH DeflectorRH Deflector
-
460207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
465207564044 Hex. Flanged Screw M6 X 40, Scotch GripHex. Flanged Screw M6 X 40, Scotch Grip
-
490705601337 BracketBracket
