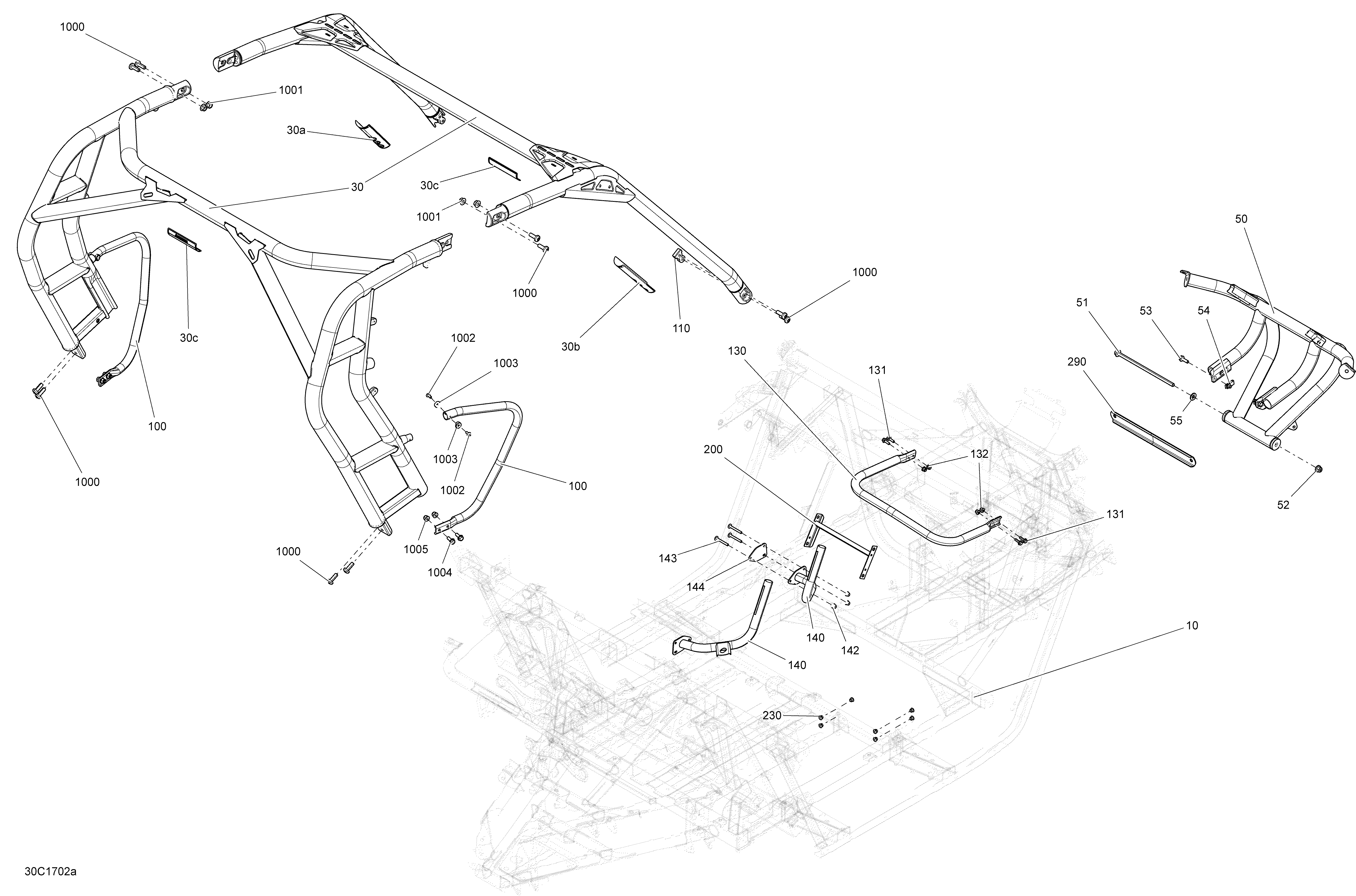

09- Frame - All Models для BRP 1-Maverick - 2017
-
№АртикулНазвание
-
10715003793 Frame Ass'y Black. DPS_XC_XCDPS_XXC_XMRFrame Ass'y Black. DPS_XC_XCDPS_XXC_XMR
-
10715003798 Frame Ass'y Black. XDS_XDSSTDFrame Ass'y Black. XDS_XDSSTD
-
30>30c715003420 Black Cage Kit, front and Rear Section. Includes 30 to 30cBlack Cage Kit, front and Rear Section. Includes 30 to 30c
-
30>30c715003427 Red Cage Kit. Includes 30 to 30cRed Cage Kit. Includes 30 to 30c
-
30>30c715003423 Blue Cage Kit, Front And Rear Section. Includes 30 to 30cBlue Cage Kit, Front And Rear Section. Includes 30 to 30c
-
30a704903679 Warning LabelWarning Label
-
30b704903680 Warning LabelWarning Label
-
30c704903492 Warning LabelWarning Label
-
50705203685 Black Front BumperBlack Front Bumper
-
51250000597 Hex. Flange ScrewHex. Flange Screw
-
52233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
53207382544 Hex. Flange ScrewHex. Flange Screw
-
54250100118 Panel Nut M8 X 1.25Panel Nut M8 X 1.25
-
55234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
100705203640 Black RH Side Protector TubeBlack RH Side Protector Tube
-
100705204410 Red RH Front Side Protector TubeRed RH Front Side Protector Tube
-
100705204817 Blue RH Side Protector TubeBlue RH Side Protector Tube
-
110705203415 Binding BlockBinding Block
-
120705203637 Black LH Side Protector TubeBlack LH Side Protector Tube
-
120705204409 Red LH Front Side Protector TubeRed LH Front Side Protector Tube
-
120705204816 Blue LH Side Protector TubeBlue LH Side Protector Tube
-
130705203332 Black HandleBlack Handle
-
131207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
132233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
140705204253 Black Console Handle. 1000TEFIBlack Console Handle. 1000TEFI
-
140705204399 Black Console Handle. 1000REFIBlack Console Handle. 1000REFI
-
142233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
143250000317 Torx Screw M6 X 50Torx Screw M6 X 50
-
144705204606 Steel PlateSteel Plate
-
200705203330 Reinforcement PanelReinforcement Panel
-
230293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
290705203454 Front Suspension LinkFront Suspension Link
-
1000250000848 Screw Pan M10 X 30Screw Pan M10 X 30
-
1001233101464 Hex. Elastic Flange Nut , M10 X 1.5Hex. Elastic Flange Nut , M10 X 1.5
-
1002250000789 Torx Truss M6X14Torx Truss M6X14
-
1003705202223 Offset WasherOffset Washer
-
1004207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
1005233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
