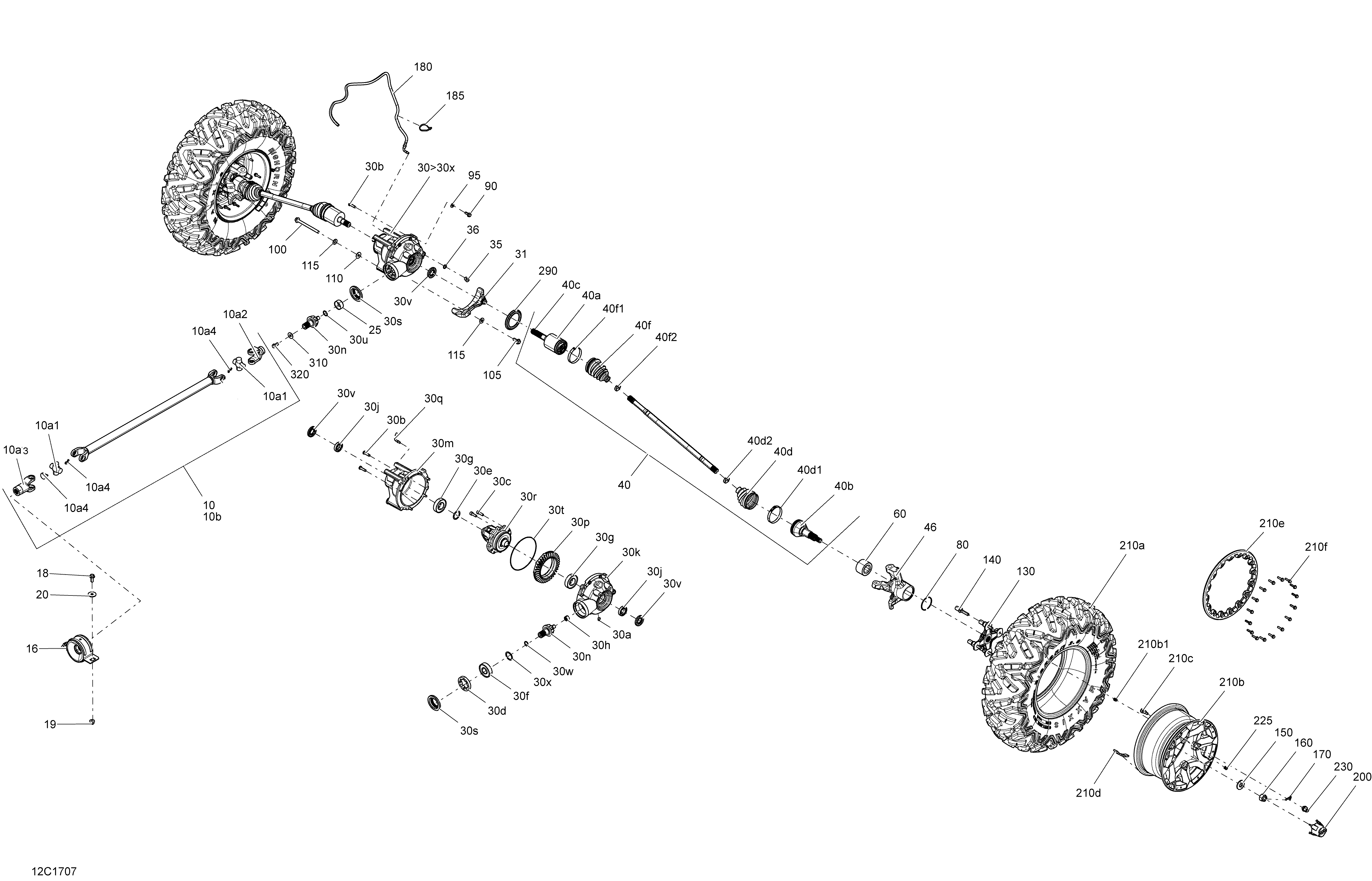

07- Drive System, Front - All Models для BRP 1-Maverick - 2017
-
№АртикулНазвание
-
10>10b703500940 Drive Shaft Ass'y. Includes 10 to 10bDrive Shaft Ass'y. Includes 10 to 10b
-
10>10b703500940 Drive Shaft Ass'y. Includes 10 to 10bDrive Shaft Ass'y. Includes 10 to 10b
-
10a1715900435 U-Joint Cross KitU-Joint Cross Kit
-
10a1715900435 U-Joint Cross KitU-Joint Cross Kit
-
10a2715900116 Fixed Yoke JointFixed Yoke Joint
-
10a2715900116 Fixed Yoke JointFixed Yoke Joint
-
10a3715900231 Yoke JointYoke Joint
-
10a3715900231 Yoke JointYoke Joint
-
10a4715900483 CoverCover
-
10a4703500815 Grease FittingGrease Fitting
-
10a4703500815 Grease FittingGrease Fitting
-
10b705400036 Wear RingWear Ring
-
10b705400036 Wear RingWear Ring
-
25705400036 Wear RingWear Ring
-
25705400036 Wear RingWear Ring
-
30>30x703500907 Front Differential. XDS_XC. Includes 30 to 30xFront Differential. XDS_XC. Includes 30 to 30x
-
30>30x703500907 Front Differential. Package XDS, XC. Includes 30 to 30xFront Differential. Package XDS, XC. Includes 30 to 30x
-
30>30x703500908 Front Differential. XCDPS_XMR_XXC. Includes 30 to 30xFront Differential. XCDPS_XMR_XXC. Includes 30 to 30x
-
30>30x703500908 Front Differential. Package XC DPS, XMR, XXC. Includes 30 to 30xFront Differential. Package XC DPS, XMR, XXC. Includes 30 to 30x
-
30>30x703500908 Front Differential. XDSSTD_DPS. Includes 30 to 30xFront Differential. XDSSTD_DPS. Includes 30 to 30x
-
30>30x703500908 Front Differential. Package XDS STD, DPS. Includes 30 to 30xFront Differential. Package XDS STD, DPS. Includes 30 to 30x
-
30a705501885 Drain PlugDrain Plug
-
30a705501885 Drain PlugDrain Plug
-
30b705401601 ScrewScrew
-
30b705401601 ScrewScrew
-
30c705401602 ScrewScrew
-
30c705401602 ScrewScrew
-
30d705401603 NutNut
-
30d705401603 NutNut
-
30e705401604 ShimShim
-
30e705401604 ShimShim
-
30f705401605 Ball BearingBall Bearing
-
30f705401605 Ball BearingBall Bearing
-
30g705401606 Ball BearingBall Bearing
-
30g705401606 Ball BearingBall Bearing
-
30h705401607 Needle BearingNeedle Bearing
-
30h705401607 Needle BearingNeedle Bearing
-
30j705401608 Ball BearingBall Bearing
-
30j705401608 Ball BearingBall Bearing
-
30k705401792 Front Cover, PinionFront Cover, Pinion
-
30k705401792 Front Cover, PinionFront Cover, Pinion
-
30m705401610 Front CoverFront Cover
-
30m705401610 Front CoverFront Cover
-
30n705401791 Pinion 10 TeethPinion 10 Teeth
-
30n705401791 Pinion 10 TeethPinion 10 Teeth
-
30p705401612 Gear 36 TeethGear 36 Teeth
-
30p705401612 Gear 36 TeethGear 36 Teeth
-
30q705401613 Vent ValveVent Valve
-
30q705401613 Vent ValveVent Valve
-
30r705401506 Differential. XCDPS_XMR_XXCDifferential. XCDPS_XMR_XXC
-
30r705401506 Differential. Package XC DPS, XMR, XXCDifferential. Package XC DPS, XMR, XXC
-
30r705401506 Differential. XDSSTD_DPSDifferential. XDSSTD_DPS
-
30r705401506 Differential. Package XDS STD, DPSDifferential. Package XDS STD, DPS
-
30r705401614 Differential. XDS_XCDifferential. XDS_XC
-
30r705401614 Differential. Package XDS, XCDifferential. Package XDS, XC
-
30s705401615 GasketGasket
-
30s705401615 Oil SealOil Seal
-
30t705401616 SealSeal
-
30t705401616 SealSeal
-
30u705401617 O'RingO'Ring
-
30u705401617 O'RingO'Ring
-
30v705401618 GasketGasket
-
30v705401618 GasketGasket
-
30w705401769 ShimShim
-
30w705401769 ShimShim
-
30x705401770 ShimShim
-
30x705401770 ShimShim
-
31705401600 SupportSupport
-
31705401600 SupportSupport
-
35705500504 Fill Level PlugFill Level Plug
-
35705500504 Fill Level PlugFill Level Plug
-
36705500506 Copper WasherCopper Washer
-
36705500506 Copper WasherCopper Washer
-
40>40f2705401874 CV Joint RH. DPS_XDSSTD_XDS. Includes 40 to 40f2CV Joint RH. DPS_XDSSTD_XDS. Includes 40 to 40f2
-
40>40f2705401874 CV Joint RH. Package DPS, XDS STD, XDS. Includes 40 to 40f2CV Joint RH. Package DPS, XDS STD, XDS. Includes 40 to 40f2
-
40>40f2705401876 CV Joint RH. XC_XCDPS_XXC. Includes 40 to 40f2CV Joint RH. XC_XCDPS_XXC. Includes 40 to 40f2
-
40>40f2705401876 CV Joint RH. Package XC, XC DPS, XXC. Includes 40 to 40f2CV Joint RH. Package XC, XC DPS, XXC. Includes 40 to 40f2
-
40>40f2705401878 CV Joint RH. XMR. Includes 40 to 40f2CV Joint RH. XMR. Includes 40 to 40f2
-
40>40f2705401878 CV Joint RH. Package XMR. Includes 40 to 40f2CV Joint RH. Package XMR. Includes 40 to 40f2
-
40>40f2705401873 CV Joint LH. DPS_XDSSTD_XDS. Includes 40 to 40f2CV Joint LH. DPS_XDSSTD_XDS. Includes 40 to 40f2
-
40>40f2705401873 CV Joint LH. Package DPS, XDS STD, XDS. Includes 40 to 40f2CV Joint LH. Package DPS, XDS STD, XDS. Includes 40 to 40f2
-
40>40f2705401875 CV Joint LH. XC_XCDPS_XXC. Includes 40 to 40f2CV Joint LH. XC_XCDPS_XXC. Includes 40 to 40f2
-
40>40f2705401875 CV Joint LH. Package XC, XC DPS, XXC. Includes 40 to 40f2CV Joint LH. Package XC, XC DPS, XXC. Includes 40 to 40f2
-
40>40f2705401877 CV Joint LH. XMR. Includes 40 to 40f2CV Joint LH. XMR. Includes 40 to 40f2
-
40>40f2705401877 CV Joint LH. Package XMR. Includes 40 to 40f2CV Joint LH. Package XMR. Includes 40 to 40f2
-
40a715900431 RH Plunging Joint. DPS_XDSSTD_XDSRH Plunging Joint. DPS_XDSSTD_XDS
-
40a715900431 RH Plunging Joint. Package DPS, XDS STD, XDSRH Plunging Joint. Package DPS, XDS STD, XDS
-
40a715900431 RH Plunging Joint. Package XC, XC DPS, XXCRH Plunging Joint. Package XC, XC DPS, XXC
-
40a715900431 RH Plunging Joint. XC_XCDPS_XXCRH Plunging Joint. XC_XCDPS_XXC
-
40a715900395 RH Plunging CV Joint. XMRRH Plunging CV Joint. XMR
-
40a715900395 RH Plunging CV Joint. Package XMRRH Plunging CV Joint. Package XMR
-
40a715900430 LH Plunging Joint. DPS_XDSSTD_XDSLH Plunging Joint. DPS_XDSSTD_XDS
-
40a715900430 LH Plunging Joint. Package DPS, XDS STD, XDSLH Plunging Joint. Package DPS, XDS STD, XDS
-
40a715900430 LH Plunging Joint. Package XC, XC DPS, XXCLH Plunging Joint. Package XC, XC DPS, XXC
-
40a715900430 LH Plunging Joint. XC_XCDPS_XXCLH Plunging Joint. XC_XCDPS_XXC
-
40a715900396 LH Plunging CV Joint. XMRLH Plunging CV Joint. XMR
-
40a715900396 LH Plunging CV Joint. Package XMRLH Plunging CV Joint. Package XMR
-
40b715900427 CV Joint. DPS_XDSSTD_XDSCV Joint. DPS_XDSSTD_XDS
-
40b715900427 CV Joint. Package DPS, XDS STD, XDSCV Joint. Package DPS, XDS STD, XDS
-
40b715900427 CV Joint. Package XC, XC DPS, XXCCV Joint. Package XC, XC DPS, XXC
-
40b715900427 CV Joint. XC_XCDPS_XXCCV Joint. XC_XCDPS_XXC
-
40b715900428 CV Joint. XMRCV Joint. XMR
-
40b715900428 CV Joint. Package XMRCV Joint. Package XMR
-
40c705401349 Circlip JointCirclip Joint
-
40c705401349 Circlip JointCirclip Joint
-
40d>40d2705401345 Boot Kit, Wheel Side. DPS_XDSSTD_XDS. Includes 40d to 40d2Boot Kit, Wheel Side. DPS_XDSSTD_XDS. Includes 40d to 40d2
-
40d>40d2705401345 Boot Kit, Wheel Side. Package DPS, XDS STD, XDS. Includes 40d to 40d2Boot Kit, Wheel Side. Package DPS, XDS STD, XDS. Includes 40d to 40d2
-
40d>40d2705401345 Boot Kit, Wheel Side. XC_XCDPS_XXC. Includes 40d to 40d2Boot Kit, Wheel Side. XC_XCDPS_XXC. Includes 40d to 40d2
-
40d>40d2705401345 Boot Kit, Wheel Side. Package XC, XC DPS, XXC. Includes 40d to 40d2Boot Kit, Wheel Side. Package XC, XC DPS, XXC. Includes 40d to 40d2
-
40d>40d2705401354 Boot Kit, Wheel Side. XMR. Includes 40d to 40d2Boot Kit, Wheel Side. XMR. Includes 40d to 40d2
-
40d>40d2705401354 Boot Kit, Wheel Side. Package XMR. Includes 40d to 40d2Boot Kit, Wheel Side. Package XMR. Includes 40d to 40d2
-
40d1715900282 Oetiker Clamp, Large. Package DPS, XDS STD, XDSOetiker Clamp, Large. Package DPS, XDS STD, XDS
-
40d1715900282 Oetiker Clamp, Large. DPS_XDSSTD_XDSOetiker Clamp, Large. DPS_XDSSTD_XDS
-
40d1715900282 Oetiker Clamp, Large. XC_XCDPS_XXCOetiker Clamp, Large. XC_XCDPS_XXC
-
40d1715900282 Oetiker Clamp, Large. Package XC, XC DPS, XXCOetiker Clamp, Large. Package XC, XC DPS, XXC
-
40d1715900260 Oetiker Clamp, Large. XMROetiker Clamp, Large. XMR
-
40d1715900260 Oetiker Clamp, Large. Package XMROetiker Clamp, Large. Package XMR
-
40d2715900283 Oetiker Clamp, Small. DPS_XDSSTD_XDSOetiker Clamp, Small. DPS_XDSSTD_XDS
-
40d2715900283 Oetiker Clamp, Small. Package DPS, XDS STD, XDSOetiker Clamp, Small. Package DPS, XDS STD, XDS
-
40d2715900283 Oetiker Clamp, Small. Package XC, XC DPS, XXCOetiker Clamp, Small. Package XC, XC DPS, XXC
-
40d2715900283 Oetiker Clamp, Small. XC_XCDPS_XXCOetiker Clamp, Small. XC_XCDPS_XXC
-
40d2715900261 Oetiker Clamp, Small. Package XMROetiker Clamp, Small. Package XMR
-
40d2715900261 Oetiker Clamp, Small. XMROetiker Clamp, Small. XMR
-
40f>f2705401346 Boot Kit, Differential Side. DPS_XDSSTD_XDS. Includes 40f to 40f2Boot Kit, Differential Side. DPS_XDSSTD_XDS. Includes 40f to 40f2
-
40f>f2705401346 Boot Kit, Differential Side. Package DPS, XDS STD, XDS. Includes 40f to 40f2Boot Kit, Differential Side. Package DPS, XDS STD, XDS. Includes 40f to 40f2
-
40f>f2705401346 Boot Kit, Differential Side. XC_XCDPS_XXC. Includes 40f to 40f2Boot Kit, Differential Side. XC_XCDPS_XXC. Includes 40f to 40f2
-
40f>f2705401346 Boot Kit, Differential Side. Package XC, XC DPS, XXC. Includes 40f to 40f2Boot Kit, Differential Side. Package XC, XC DPS, XXC. Includes 40f to 40f2
-
40f>f2705401355 Boot Kit, Differential Side. XMR. Includes 40f to 40f2Boot Kit, Differential Side. XMR. Includes 40f to 40f2
-
40f>f2705401355 Boot Kit, Differential Side. Package XMR. Includes 40f to 40f2Boot Kit, Differential Side. Package XMR. Includes 40f to 40f2
-
40f1715900284 Oetiker Clamp, Large. DPS_XDSSTD_XDSOetiker Clamp, Large. DPS_XDSSTD_XDS
-
40f1715900284 Oetiker Clamp, Large. Package DPS, XDS STD, XDSOetiker Clamp, Large. Package DPS, XDS STD, XDS
-
40f1715900284 Oetiker Clamp, Large. Package XC, XC DPS, XXCOetiker Clamp, Large. Package XC, XC DPS, XXC
-
40f1715900284 Oetiker Clamp, Large. XC_XCDPS_XXCOetiker Clamp, Large. XC_XCDPS_XXC
-
40f1715900261 Oetiker Clamp, Small. Package XMROetiker Clamp, Small. Package XMR
-
40f1715900261 Oetiker Clamp, Small. XMROetiker Clamp, Small. XMR
-
40f2715900261 Oetiker Clamp, Small. DPS_XDSSTD_XDSOetiker Clamp, Small. DPS_XDSSTD_XDS
-
40f2715900261 Oetiker Clamp, Small. Package DPS, XDS STD, XDSOetiker Clamp, Small. Package DPS, XDS STD, XDS
-
40f2715900261 Oetiker Clamp, Small. Package XC, XC DPS, XXCOetiker Clamp, Small. Package XC, XC DPS, XXC
-
40f2715900261 Oetiker Clamp, Small. XC_XCDPS_XXCOetiker Clamp, Small. XC_XCDPS_XXC
-
40f2715900262 Oetiker Clamp, Large. XMROetiker Clamp, Large. XMR
-
40f2715900262 Oetiker Clamp, Large. Package XMROetiker Clamp, Large. Package XMR
-
45705401548 LH Front KnuckleLH Front Knuckle
-
45705401548 LH Front KnuckleLH Front Knuckle
-
46705401549 RH Front KnuckleRH Front Knuckle
-
46705401549 RH Front KnuckleRH Front Knuckle
-
60293350118 Cone BearingCone Bearing
-
60293350118 Cone BearingCone Bearing
-
80293370019 CirclipCirclip
-
80293370019 CirclipCirclip
-
90207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
90207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
95234281474 Conical Spring Washer M8Conical Spring Washer M8
-
95234281474 Conical Spring Washer M8Conical Spring Washer M8
-
100230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
100230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
105207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
105207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
110250200014 Flat Washer M10Flat Washer M10
-
110250200014 Flat Washer M10Flat Washer M10
-
115234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
115234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
130705501900 Wheel HubWheel Hub
-
130705501900 Wheel HubWheel Hub
-
140250300060 Wheel StudWheel Stud
-
140250300060 Wheel StudWheel Stud
-
150250200049 Spring WasherSpring Washer
-
150250200049 Spring WasherSpring Washer
-
160250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
160250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
170250400071 Cotter PinCotter Pin
-
170250400071 Cotter PinCotter Pin
-
180414834000 Formed HoseFormed Hose
-
180414834000 Formed HoseFormed Hose
-
180414834000 Formed HoseFormed Hose
-
180414834000 Formed HoseFormed Hose
-
185414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
185414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
200705400928 Wheel Cap. Except XMR_XDSSTDWheel Cap. Except XMR_XDSSTD
-
200705400928 Wheel Cap. Except Package XMR, XDS STDWheel Cap. Except Package XMR, XDS STD
-
200705401541 Wheel Cap. XMR_XDSSTDWheel Cap. XMR_XDSSTD
-
200705401541 Wheel Cap. Package XMR, XDS STDWheel Cap. Package XMR, XDS STD
-
210a705401385 Front Tire Maxxis 27X9X12. XC_XCDPS_DPSFront Tire Maxxis 27X9X12. XC_XCDPS_DPS
-
210a705401385 Front Tire Maxxis 27X9X12. Package XC, XC DPS, DPSFront Tire Maxxis 27X9X12. Package XC, XC DPS, DPS
-
210a705401386 Front Tire. XXC EuropeFront Tire. XXC Europe
-
210a705401386 Front Tire. Package XXC EuropeFront Tire. Package XXC Europe
-
210a705401385 Front Tire Maxxis 27X9X12. XXC Except EuropeFront Tire Maxxis 27X9X12. XXC Except Europe
-
210a705401385 Front Tire Maxxis 27X9X12. Package XXC Except EuropeFront Tire Maxxis 27X9X12. Package XXC Except Europe
-
210a705401592 Front Tire. XDSSTDFront Tire. XDSSTD
-
210a705401592 Front Tire. Package XDS STDFront Tire. Package XDS STD
-
210a705401046 Front Tire. XDSFront Tire. XDS
-
210a705401046 Front Tire. Package XDSFront Tire. Package XDS
-
210a705401501 Tire. XMRTire. XMR
-
210a705401501 Tire. Package XMRTire. Package XMR
-
210b705401417 Black Front Rim. XC_XCDPS_DPS_XDSBlack Front Rim. XC_XCDPS_DPS_XDS
-
210b705401417 Black Front Rim. Package XC, XC DPS, DPS, XDSBlack Front Rim. Package XC, XC DPS, DPS, XDS
-
210b705401564 Black Front Rim. XDSSTDBlack Front Rim. XDSSTD
-
210b705401564 Front Rim. Package XDS STDFront Rim. Package XDS STD
-
210b705401848 Front Rim. Package XMRFront Rim. Package XMR
-
210b705401848 Rim. XMRRim. XMR
-
210b>210b1705401678 Black Front Rim. XXC. Includes 210b to 210b1Black Front Rim. XXC. Includes 210b to 210b1
-
210b>210b1705401678 Black Front Rim. Package XXC. Includes 210b to 210b1Black Front Rim. Package XXC. Includes 210b to 210b1
-
210b1293450317 InsertInsert
-
210b1293450317 InsertInsert
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
210d705501385 1/2 OZ Weight1/2 OZ Weight
-
210d705501385 1/2 OZ Weight1/2 OZ Weight
-
210e705401695 Bead Lock Gulfstream Blue. Package XXCBead Lock Gulfstream Blue. Package XXC
-
210e705401695 Blue Reinforcement Disk. XXCBlue Reinforcement Disk. XXC
-
210f250000787 Hex. Flanged Screw M6 X 25. XXCHex. Flanged Screw M6 X 25. XXC
-
210f250000787 Hex. Flanged Screw M6 X 25. Package XXCHex. Flanged Screw M6 X 25. Package XXC
-
225293000110 Valve CapValve Cap
-
225293000110 Valve CapValve Cap
-
230250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
230250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
290705400780 Wear Sleeve. Except XMRWear Sleeve. Except XMR
-
290705400780 Wear Sleeve. Except Package XMRWear Sleeve. Except Package XMR
-
310250200014 Flat Washer M10Flat Washer M10
-
310250200014 Flat Washer M10Flat Washer M10
-
320250000847 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
320250000847 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
Все узлы модели:
- 00- Model Numbers
- 01- Cooling System - All Models
- 01- Crankcase - 1000R
- 01- Crankcase - Turbo
- 01- Crankshaft, Piston and Cylinder - 1000R
- 01- Crankshaft, Piston and Cylinder - Turbo
- 01- Cylinder Head, Front - 1000R
- 01- Cylinder Head, Front - Turbo
- 01- Cylinder Head, Rear - 1000R
- 01- Cylinder Head, Rear - Turbo
- 01- Engine - 1000R EFI Except XMR
- 01- Engine - 1000R XMR
- 01- Engine - Turbo
- 01- Engine Cooling - 1000R
- 01- Engine Cooling - Turbo
- 01- Engine Lubrication - 1000R
- 01- Engine Lubrication - Turbo
- 01- Exhaust System - 1000R EFI
- 01- Exhaust System - Turbo
- 01- Gear Box and Components - GBPS - Maverick Turbo-Maverick MAX Turbo
- 01- Gear Box and Components - GBPS - Maverick-Maverick MAX, XMR
- 01- Gear Box Assy - GBPS - Maverick Turbo-Maverick MAX Turbo
- 01- Gear Box Assy - GBPS - Maverick-Maverick MAX, XMR
- 01- Gear Box Output Shaft - GBPS - Maverick Turbo-Maverick MAX Turbo
- 01- Gear Box Output Shaft - GBPS - Maverick-Maverick MAX, XMR
- 01- Turbocharger
- 02- Air Intake - 1000R EFI
- 02- Air Intake - Turbo
- 02- Air Intake Manifold and Throttle Body - 1000R
- 02- Air Intake Manifold and Throttle Body - Turbo
- 02- Fuel System - All Models
- 03- Magneto and Electric Starter - 1000R
- 03- Magneto and Electric Starter - Turbo
- 05- Transmission - 1000R
- 05- Transmission - Turbo
- 05- Transmission - XMR
- 05- Transmission, Driven Pulley - Turbo
- 05- Transmission, Driven Pulley - XMR
- 06- Brakes - All Models
- • 07- Drive System, Front - All Models
- 07- Front Suspension - All Models
- 07- Steering - All Models
- 08- Drive Shaft - 1000R
- 08- Drive Shaft - Turbo
- 08- Drive System, Rear - All Models
- 08- Rear Suspension - All Models
- 09- Body And Accessories - Front Section All Models
- 09- Body And Accessories - Middle Section All Models
- 09- Body And Accessories - Rear Section All Models
- 09- Cab Interior - Except Package XMR
- 09- Cab Interior - Package XMR
- 09- Decals - 1000R EFI
- 09- Decals - Turbo
- 09- Frame - All Models
- 09- Mirrors And Tools - All Models
- 09- Seat - 1000R EFI
- 09- Seat - Turbo
- 10- Electrical Harness - All Models
- 10- Electrical Harness - Europe
- 10- Electrical System - 1000R EFI Except Package XMR
- 10- Electrical System - 1000R EFI Package XMR
- 10- Electrical System - 1000R EFI Package XXC EUROPE
- 10- Electrical System - Turbo
- 10- Electrical System - Turbo Europe
- 10- Engine Harness and Electronic Module - Maverick 1000R
- 10- Engine Harness and Electronic Module - Turbo
- 10- Engine Harness and Electronic Module - XMR
