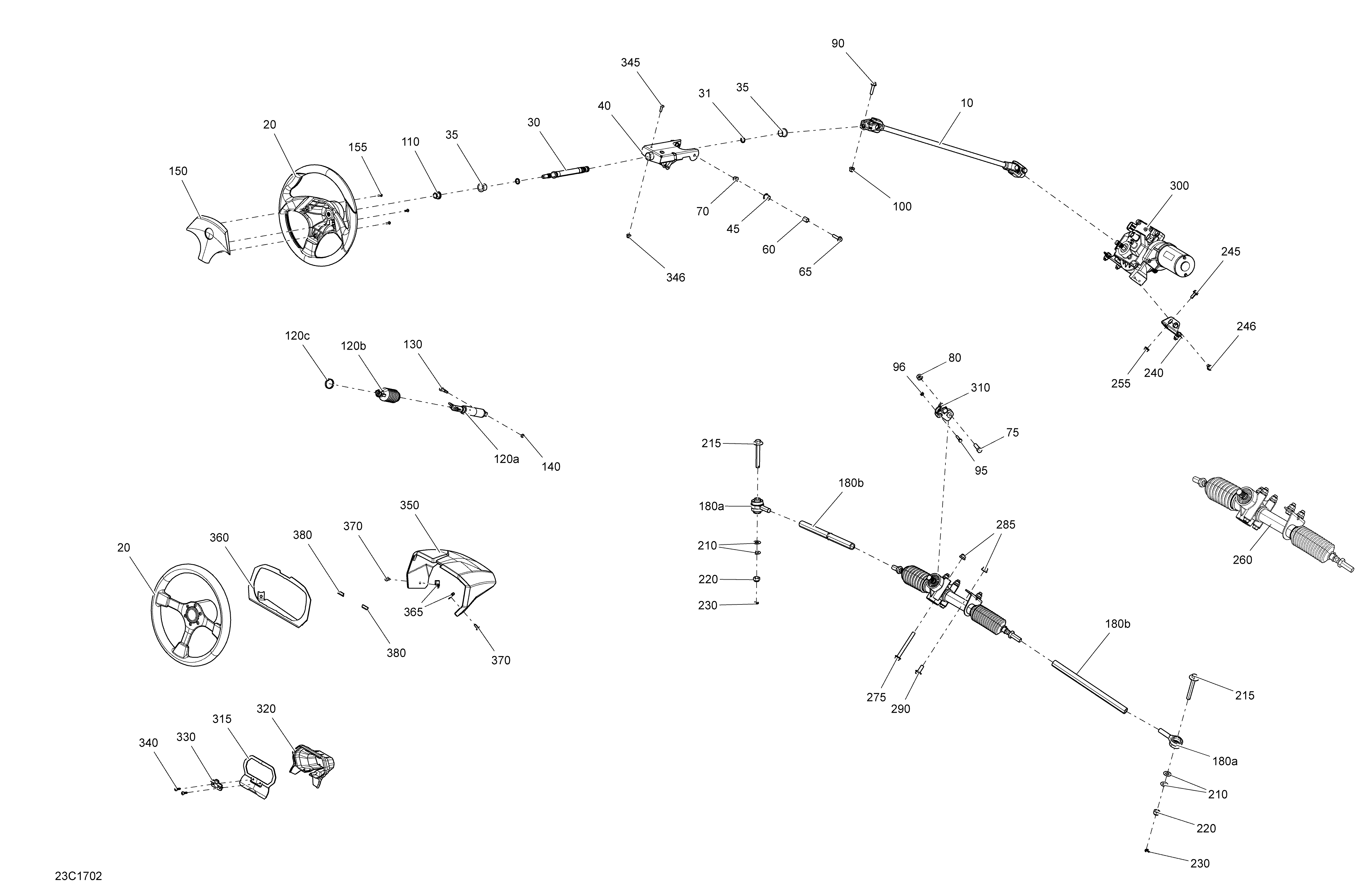

07- Steering - All Models для BRP 1-Maverick - 2017
-
№АртикулНазвание
-
10709401388 Steering Shaft Ass'y. Package XC, XDSSteering Shaft Ass'y. Package XC, XDS
-
10709401607 Steering Shaft Ass'y. Except Package XC, XDSSteering Shaft Ass'y. Except Package XC, XDS
-
20709400650 Steering Wheel. Package XC, XC DPS, DPS, XDS STDSteering Wheel. Package XC, XC DPS, DPS, XDS STD
-
20715001134 Steering Wheel Kit. Package XXC, XMR, XDSSteering Wheel Kit. Package XXC, XMR, XDS
-
30709401167 Steering ShaftSteering Shaft
-
31293300144 O-RingO-Ring
-
35415108000 CushionCushion
-
40709401391 Painted Steering Wheel SupportPainted Steering Wheel Support
-
45705600799 BushingBushing
-
60293900106 BushingBushing
-
65207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
70233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
75207103586 Hex. Screw M10 X 35. Except Package XC, XDSHex. Screw M10 X 35. Except Package XC, XDS
-
80232500416 Elastic Stop Nut M10. Except Package XC, XDSElastic Stop Nut M10. Except Package XC, XDS
-
90207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
95207063044 Hex. Screw M6 X 30. Except Package XC, XDSHex. Screw M6 X 30. Except Package XC, XDS
-
96232561414 Elastic Stop Nut M6. Except Package XC, XDSElastic Stop Nut M6. Except Package XC, XDS
-
100233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
110233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
120a709400656 Adjustment CylinderAdjustment Cylinder
-
120b709401232 Boot Kit, Tube SideBoot Kit, Tube Side
-
120c414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
130250000669 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
140232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
150709400780 Steering Center. Package XC, XC DPS, DPS, XDS STDSteering Center. Package XC, XC DPS, DPS, XDS STD
-
155250000723 Phillips Screw K40 X 16. Package XC, XC DPS, DPS, XDS STDPhillips Screw K40 X 16. Package XC, XC DPS, DPS, XDS STD
-
180a709401125 Ball JointBall Joint
-
180b709401272 Tie Rod. Package XC, XC DPS, XXCTie Rod. Package XC, XC DPS, XXC
-
180b709401427 Tie Rod. Except Package XC, XC DPS, XXCTie Rod. Except Package XC, XC DPS, XXC
-
210250200086 Flat WasherFlat Washer
-
215250000657 Hexagonal Screw M12 X 88Hexagonal Screw M12 X 88
-
220232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
230211400017 Cotter PinCotter Pin
-
240709401612 DPS Support. Except Package XC, XDSDPS Support. Except Package XC, XDS
-
245207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. Except Package XC, XDSHex. Flanged Screw M8 X 20, Scotch Grip. Except Package XC, XDS
-
246207581644 Hex. Flanged Screw M8 X 16, Scotch Grip. Except Package XC, XDSHex. Flanged Screw M8 X 16, Scotch Grip. Except Package XC, XDS
-
255233281414 Hex. Flanged Elastic Nut M8. Except Package XC, XDSHex. Flanged Elastic Nut M8. Except Package XC, XDS
-
260709401325 Rack And Pinion Steering. Package XC, XDSRack And Pinion Steering. Package XC, XDS
-
260709401610 Rack and Pinion Steering. Package XMR, XC DPS, DPS, XXCRack and Pinion Steering. Package XMR, XC DPS, DPS, XXC
-
260709401611 Rack and Pinion Steering. Package XDS STDRack and Pinion Steering. Package XDS STD
-
275230500046 Hex. Screw M10 X 100, Scotch GripHex. Screw M10 X 100, Scotch Grip
-
285233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
290207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
300709401921 Power Steering Ass'y. Except Package XC, XDSPower Steering Ass'y. Except Package XC, XDS
-
310709401494 Machined Coupling. Except Package XC, XDSMachined Coupling. Except Package XC, XDS
-
315709400760 Cluster Support. Package XC, XC DPS, DPSCluster Support. Package XC, XC DPS, DPS
-
320709400514 Speedometer Cover. Package XC, XC DPS, DPSSpeedometer Cover. Package XC, XC DPS, DPS
-
330709400573 Latch Indicator Cover. Package XC, XC DPS, DPSLatch Indicator Cover. Package XC, XC DPS, DPS
-
340250000760 Torx Screw Truss Head PT.K50 X 20. Package XC, XC DPS, DPSTorx Screw Truss Head PT.K50 X 20. Package XC, XC DPS, DPS
-
345250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
346233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
350707900124 Upper Cluster Cover. Package XXC, XMRUpper Cluster Cover. Package XXC, XMR
-
350707900124 Upper Cluster Cover. Package XDS, XDS STDUpper Cluster Cover. Package XDS, XDS STD
-
360707900013 Cluster Support. Package XXC, XMRCluster Support. Package XXC, XMR
-
360707900013 Cluster Support. Package XDS, XDS STDCluster Support. Package XDS, XDS STD
-
365250000048 Panel Nut M6 X 1.0. Package XXC, XMRPanel Nut M6 X 1.0. Package XXC, XMR
-
365250000048 Panel Nut M6 X 1.0. Package XDS, XDS STDPanel Nut M6 X 1.0. Package XDS, XDS STD
-
370250000721 Torx Screw. Package XXC, XMRTorx Screw. Package XXC, XMR
-
370250000721 Torx Screw. Package XDS, XDS STDTorx Screw. Package XDS, XDS STD
-
380293250087 Gasket, NeopreneGasket, Neoprene
