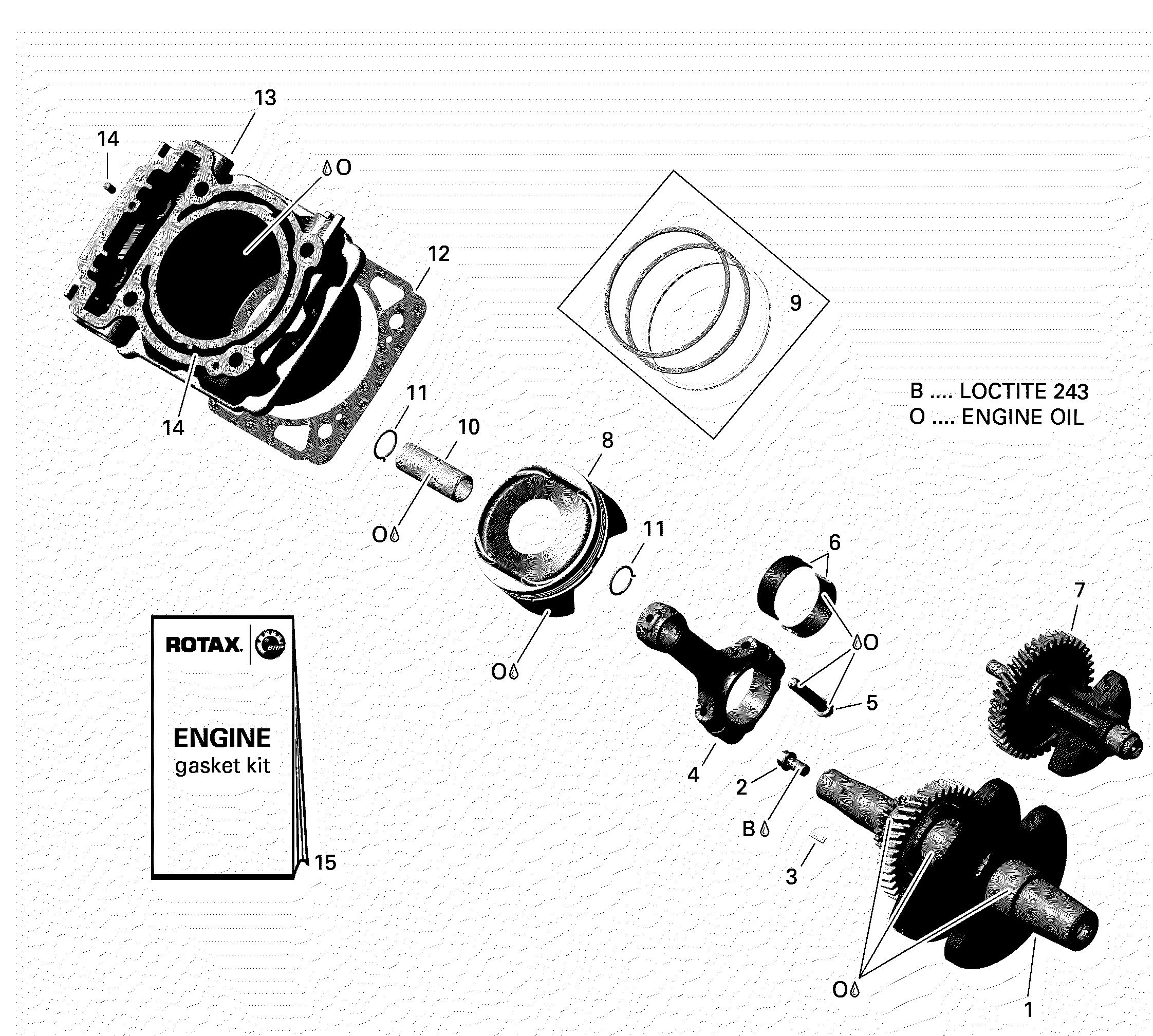

01- Crankshaft And Piston для BRP Traxter HD5 - 2017
-
№АртикулНазвание
-
1420295030 Crankshaft Ass'yCrankshaft Ass'y
-
2295501162 Hex ScrewHex Screw
-
3420246571 Woodruff KeyWoodruff Key
-
4>5420217429 Connecting Rod Ass'yConnecting Rod Ass'y
-
5420641645 Connecting Rod Screw M8 X 1Connecting Rod Screw M8 X 1
-
6420233980 Plain Bearing 40 X 43 X 15Plain Bearing 40 X 43 X 15
-
7420637455 Balance ShaftBalance Shaft
-
8420686310 Piston Ass'y, 93.958 mmPiston Ass'y, 93.958 mm
-
9
-
10420216270 Piston PinPiston Pin
-
11420845107 Piston CirclipPiston Circlip
-
12420450330 GasketGasket
-
13420413265 Cylinder With SleeveCylinder With Sleeve
-
14420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
15420685125 Brush KitBrush Kit
