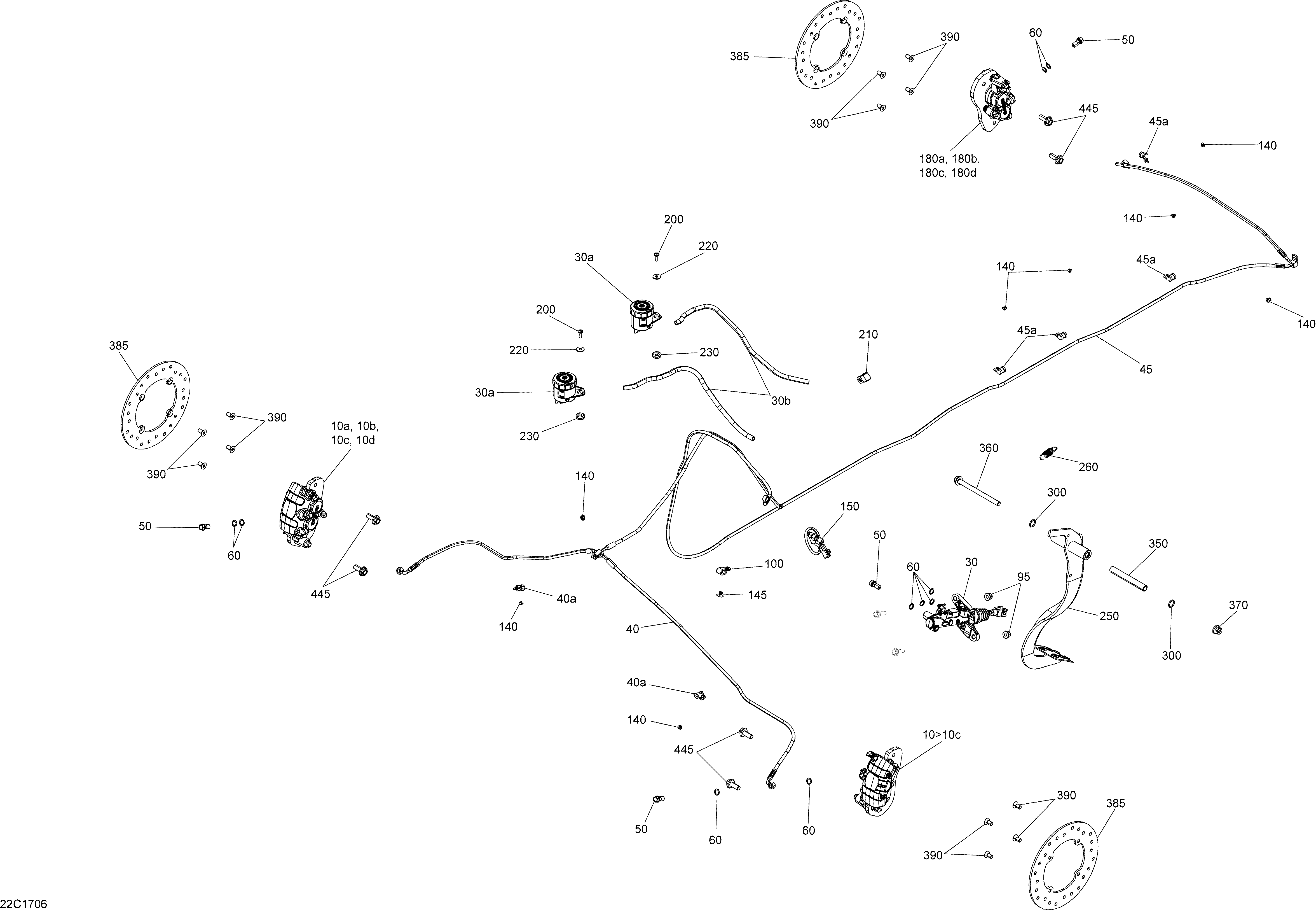

06- Brakes для BRP Traxter HD5 - 2017
-
№АртикулНазвание
-
10>10c705601462 Front Caliper LH. Includes 10 to 10cFront Caliper LH. Includes 10 to 10c
-
10>10c705601463 Front Caliper RH. Includes 10 to 10cFront Caliper RH. Includes 10 to 10c
-
10a715900379 Brake Pads LHBrake Pads LH
-
10a715900380 Brake Pads RHBrake Pads RH
-
10a1715900384 Pin KitPin Kit
-
10b705601017 Bleeding ScrewBleeding Screw
-
10c715900385 Cap Spring KitCap Spring Kit
-
30>30b705601549 Master Cylinder. Includes 30 to 30bMaster Cylinder. Includes 30 to 30b
-
30a705601020 Oil TankOil Tank
-
30b705601019 Housing Oil HoseHousing Oil Hose
-
40>40a705601594 Brake Hose. Includes 40 to 40aBrake Hose. Includes 40 to 40a
-
40a715900250 Hose ClipHose Clip
-
45>45a705601540 Brake Hose. Includes 45 to 45aBrake Hose. Includes 45 to 45a
-
45a715900250 Hose ClipHose Clip
-
50705600609 Banjo BoltBanjo Bolt
-
60705600310 Copper WasherCopper Washer
-
95233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
100293650220 ClampClamp
-
140390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
145293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
150705601250 Brake SwitchBrake Switch
-
180>180d705601467 Rear Caliper RH. Includes 180 to 180dRear Caliper RH. Includes 180 to 180d
-
180a715900380 Brake Pads RHBrake Pads RH
-
180a1715900384 Pin KitPin Kit
-
180b705601017 Bleeding ScrewBleeding Screw
-
180c715900384 Pin KitPin Kit
-
180d715900385 Cap Spring KitCap Spring Kit
-
200250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
210515175507 ClipClip
-
220234062410 Flat Washer 6 mmFlat Washer 6 mm
-
230414036300 GrommetGrommet
-
250705601306 Brake PedalBrake Pedal
-
260705600792 Brake Pedal SpringBrake Pedal Spring
-
300293300144 O-RingO-Ring
-
350705601373 Inside SleeveInside Sleeve
-
360230603046 Flanged Hex. Screw, M10 X 130Flanged Hex. Screw, M10 X 130
-
370233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
385705601511 Brake DiscBrake Disc
-
390235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
445207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
