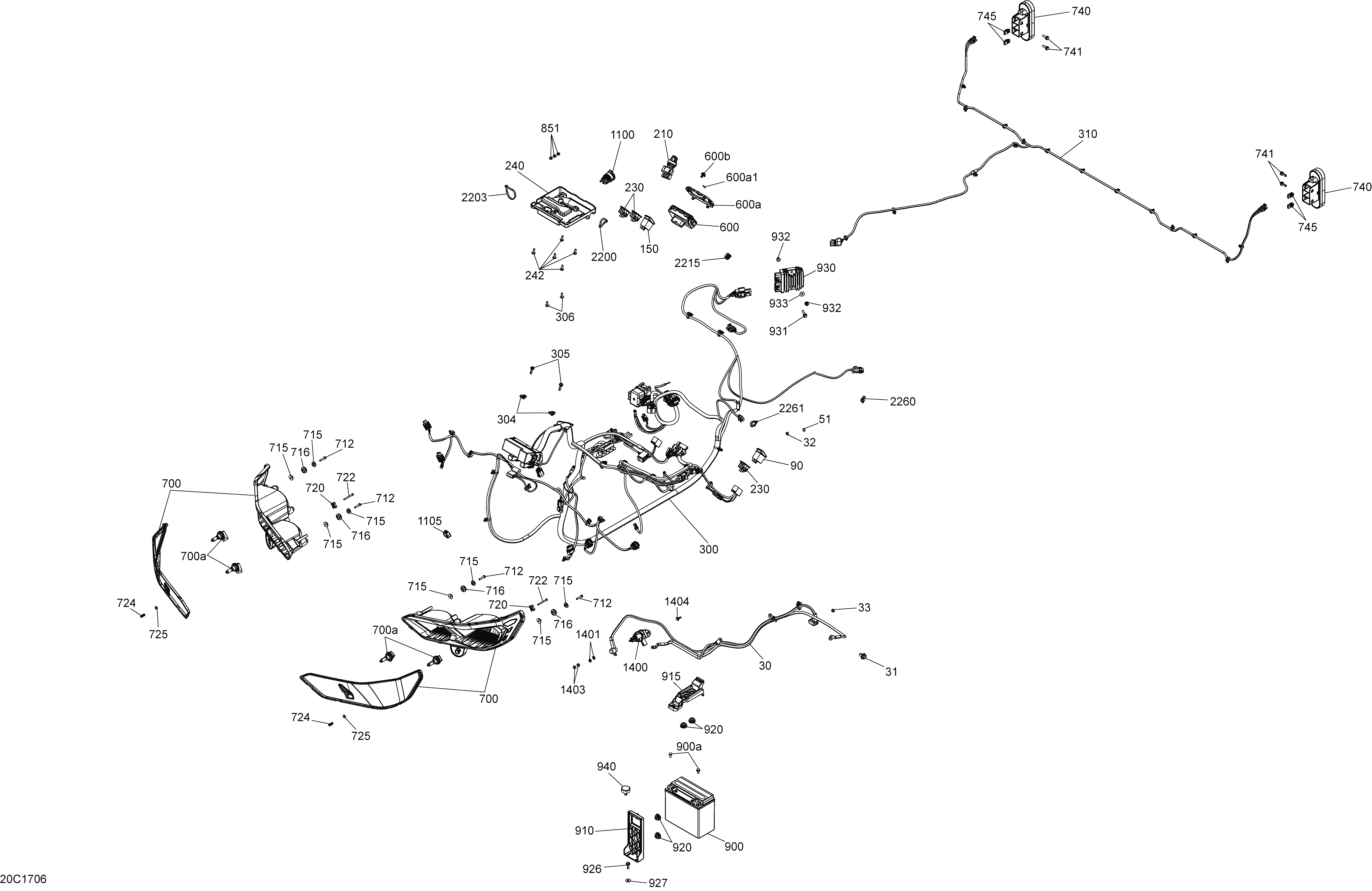

10- Electrical System для BRP Traxter HD5 - 2017
-
№АртикулНазвание
-
30710005331 Negative CableNegative Cable
-
31207501644 Hex. Flanged Screw M10 X 16, Scotch GripHex. Flanged Screw M10 X 16, Scotch Grip
-
32234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
33232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
51232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
90710004492 Light SwitchLight Switch
-
150710004814 2 X 4 Switch2 X 4 Switch
-
210710004198 Ignition Switch With KeysIgnition Switch With Keys
-
230710001999 Plug CarlingPlug Carling
-
240710004741 Housing SupportHousing Support
-
242243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
300710005530 Main Harness Ass'yMain Harness Ass'y
-
304250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
305207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
306243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
310710004458 Rear HarnessRear Harness
-
600>600b710005087 Speedometer. Includes 600 to 600bSpeedometer. Includes 600 to 600b
-
600a>600a1710001183 Trim Ring Ass'y. Includes 600a to 600a1Trim Ring Ass'y. Includes 600a to 600a1
-
600a1704904615 BRP Logo, 13 mmBRP Logo, 13 mm
-
600b715900265 ButtonButton
-
700>700a710005729 LH Beam Ass'y. Includes 700 to 700aLH Beam Ass'y. Includes 700 to 700a
-
700>700a710005730 RH Beam Ass'y. Includes 700 to 700aRH Beam Ass'y. Includes 700 to 700a
-
700a219800149 Halogen Bulb H8 12V 35WHalogen Bulb H8 12V 35W
-
712241152540 Hex. Flanged Screw K50 X 25Hex. Flanged Screw K50 X 25
-
715710004749 Shoulder BushingShoulder Bushing
-
716293720053 GrommetGrommet
-
720572106600 HandleHandle
-
722250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
724517168600 SpringSpring
-
724a517168600 SpringSpring
-
725234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
740710004497 Tail LightTail Light
-
741207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
745250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
851232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
900>900a410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
910710004788 Fixation PlateFixation Plate
-
915710004789 Fixation PlateFixation Plate
-
920705003666 Rubber GrommetRubber Grommet
-
926207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
927234062410 Flat Washer 6 mmFlat Washer 6 mm
-
930515177325 Voltage RegulatorVoltage Regulator
-
931207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
932233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
933234062410 Flat Washer 6 mmFlat Washer 6 mm
-
940708001827 Rubber StopperRubber Stopper
-
1100710001248 Outlet DCOutlet DC
-
1105710004993 CapCap
-
1400278003012 Starter RelayStarter Relay
-
1401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
1403232061600 Hex. Nut M6Hex. Nut M6
-
1404243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
2200414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2203293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2215293750058 Locking Tie RapLocking Tie Rap
-
2260710003168 Christmas Tree Tie-Rap 200 mmChristmas Tree Tie-Rap 200 mm
-
2261710005237 Christmas Tree Tie-RapChristmas Tree Tie-Rap
