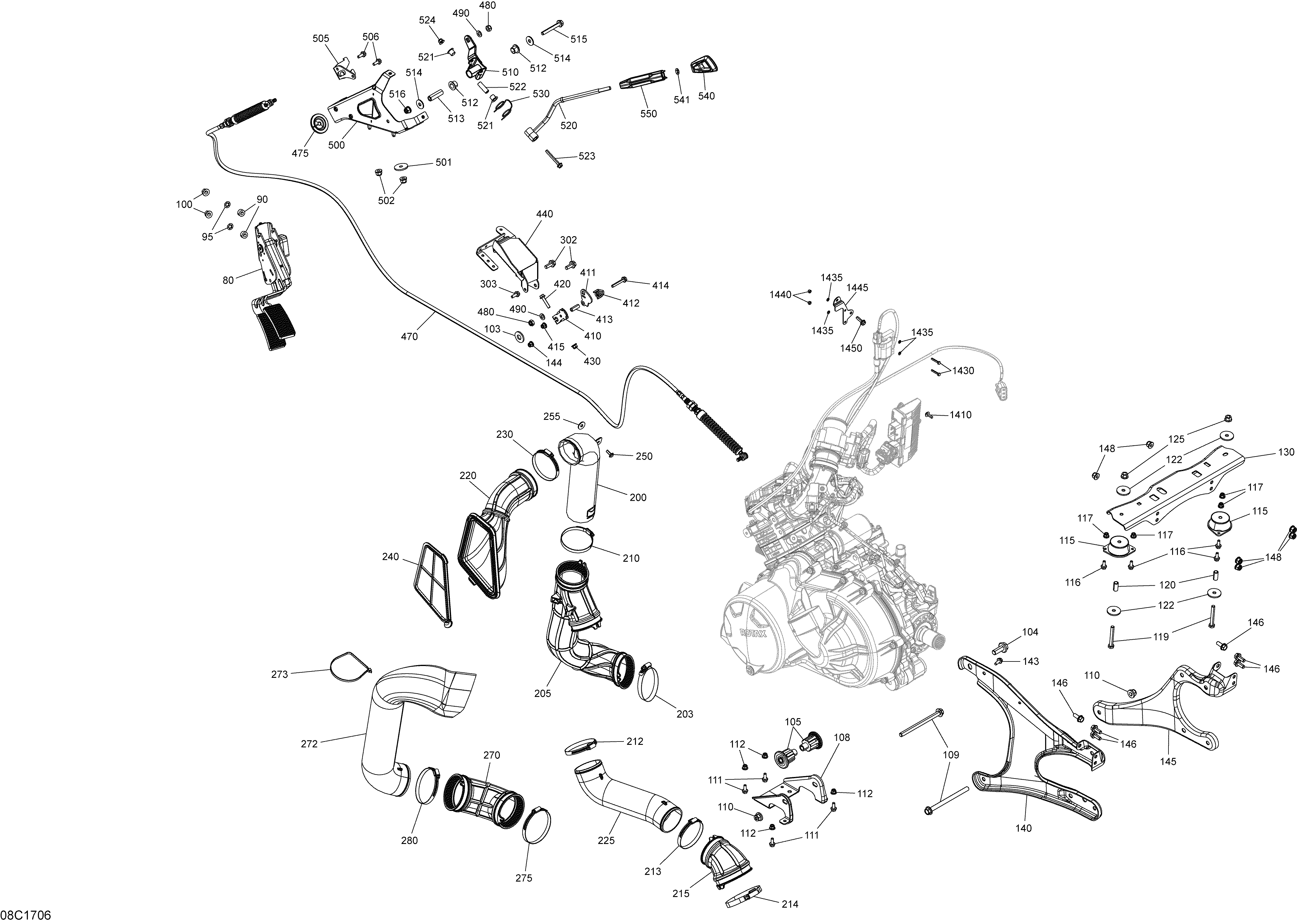

01- Engine для BRP Traxter HD5 - 2017
-
№АртикулНазвание
-
80707001599 Accelerator PedalAccelerator Pedal
-
90707000848 BushingBushing
-
95250100031 Push NutPush Nut
-
100233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
103250200005 Conical Spring Washer M12Conical Spring Washer M12
-
104207523056 Hex. Flanged Screw M12 X 30, Scotch GripHex. Flanged Screw M12 X 30, Scotch Grip
-
105707001169 DamperDamper
-
108707001989 Front Engine BracketFront Engine Bracket
-
109230603546 Hex. Flanged Screw M10 X 135Hex. Flanged Screw M10 X 135
-
110233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
111207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
112233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
115707001867 Rubber MountRubber Mount
-
116207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
117233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
119207186044 Hex. screw M8 x 60Hex. screw M8 x 60
-
120707001908 BushingBushing
-
122250200158 Flat Washer M8Flat Washer M8
-
125233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
130707002007 Link BracketLink Bracket
-
140707001991 Bracket -EngineBracket -Engine
-
143207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
144233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
145707001992 Bracket -EngineBracket -Engine
-
146207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
148233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
200a706600157 Front DuctFront Duct
-
203293650091 Norma ClampNorma Clamp
-
205706600144 Adap -Flex.Adap -Flex.
-
210293650091 Norma ClampNorma Clamp
-
212293650091 Norma ClampNorma Clamp
-
213293650091 Norma ClampNorma Clamp
-
214514052924 Norma ClampNorma Clamp
-
215706600153 Adap -Flex.Adap -Flex.
-
220706600084 Flexible AdaptorFlexible Adaptor
-
225706600154 DuctDuct
-
230293650091 Norma ClampNorma Clamp
-
240706600156 CVT FilterCVT Filter
-
250243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
255250200025 Washer M5Washer M5
-
270706600145 Adap -Flex.Adap -Flex.
-
272706600155 DuctDuct
-
273293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
275514052924 Norma ClampNorma Clamp
-
280514052924 Norma ClampNorma Clamp
-
302207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
303207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
410707000503 LeverLever
-
411707001988 Pivot PlatePivot Plate
-
412707000310 SpringSpring
-
413293900079 BushingBushing
-
414207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
415233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
420207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
430233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
440707001986 Cable SupportCable Support
-
470707001468 Shifting CableShifting Cable
-
475293720109 GrommetGrommet
-
480232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
490234081410 Flat Washer 8 mmFlat Washer 8 mm
-
500707002003 Shifter BraketShifter Braket
-
501250200158 Flat Washer M8Flat Washer M8
-
502233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
505707002038 Cable SupportCable Support
-
506207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
510707002005 Lower Shifter ArmLower Shifter Arm
-
512293900001 Venturi BushingVenturi Bushing
-
513707001863 Internal BushingInternal Bushing
-
514234082410 Flat Washer 8 mmFlat Washer 8 mm
-
515207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
516233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
520707001999 Shifter ArmShifter Arm
-
521707000869 Flanged BushingFlanged Bushing
-
522707001376 BushingBushing
-
523207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
524233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
530707000750 Lever Arm SpringLever Arm Spring
-
540707000965 Lever ButtonLever Button
-
541232180491 Hex. Jam Nut M8Hex. Jam Nut M8
-
550707001899 Shifting Arm CoverShifting Arm Cover
-
1410243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
1430207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
1435234040600 Flat Washer 4 mmFlat Washer 4 mm
-
1440232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
1445707002024 Ignition Coil BracketIgnition Coil Bracket
-
1450207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
