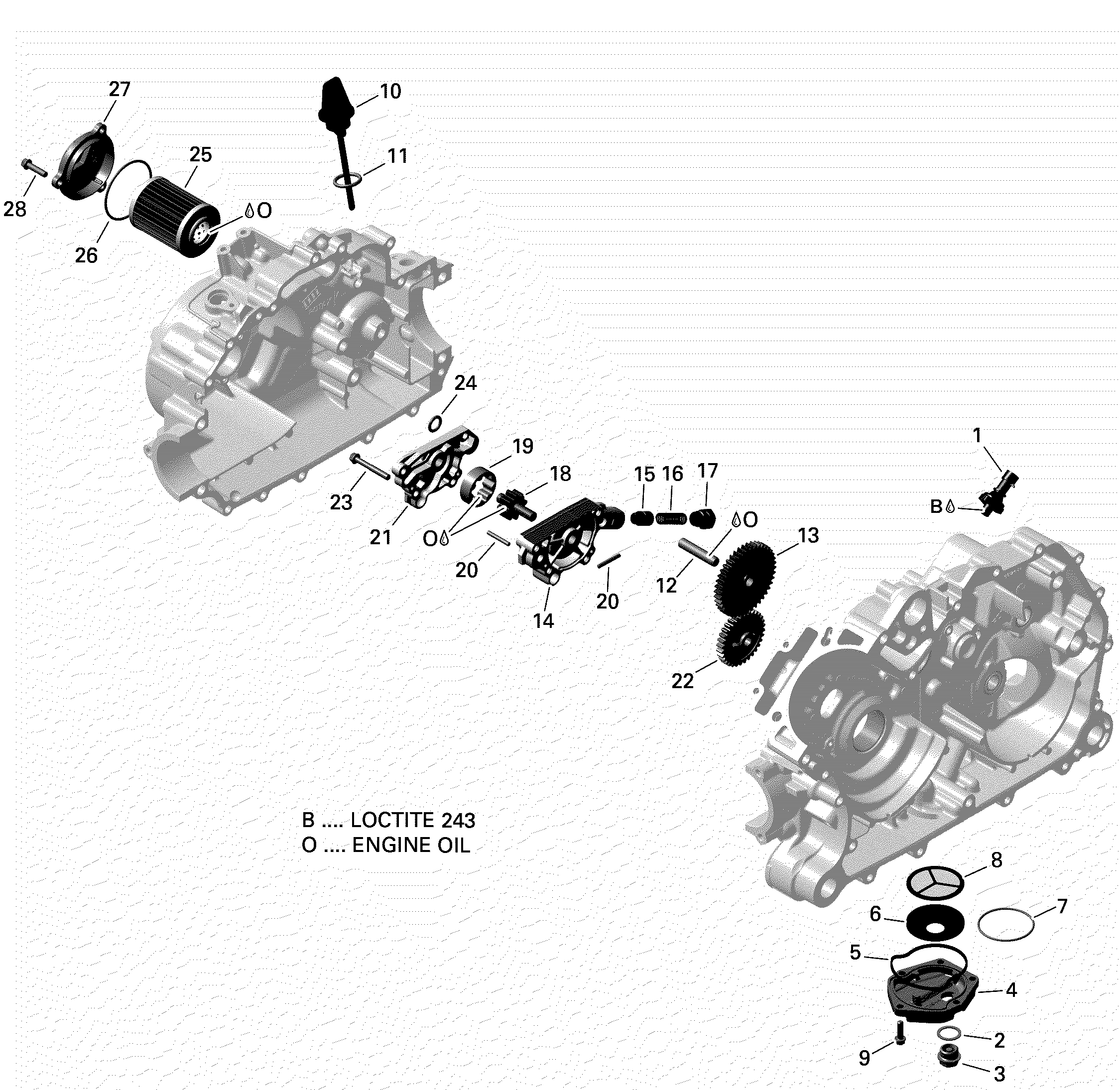

01- Engine Lubrication для BRP Traxter HD5 - 2017
-
№АртикулНазвание
-
1420256915 Oil Pressure SwitchOil Pressure Switch
-
2420552280 O-RingO-Ring
-
3420840277 Drain Plug M18 X 1.5Drain Plug M18 X 1.5
-
4420211944 Oil Sieve CoverOil Sieve Cover
-
5420650560 Rubber RingRubber Ring
-
6420256650 Oil CollectorOil Collector
-
7420650695 O-RingO-Ring
-
8420256576 Oil SieveOil Sieve
-
9420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
10420256800 Oil DipstickOil Dipstick
-
11420631640 O-RingO-Ring
-
12420229302 Location PinLocation Pin
-
13420635660 Idle Gear, 42 TeethIdle Gear, 42 Teeth
-
14>21420296507 Oil Pump Ass'yOil Pump Ass'y
-
14420610221 Oil Pump HousingOil Pump Housing
-
15420256921 Piston ValvePiston Valve
-
16420238220 Compression SpringCompression Spring
-
17420641167 Plug Screw M16Plug Screw M16
-
18420220814 Oil Pump ShaftOil Pump Shaft
-
19420256935 Oil Pump Outer RotorOil Pump Outer Rotor
-
20420232431 Needle PinNeedle Pin
-
21420610570 Oil Pump CoverOil Pump Cover
-
22420635220 Oil Pump Gear, 32 TeethOil Pump Gear, 32 Teeth
-
23420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
24420250290 O-ringO-ring
-
25420256188 Oil FilterOil Filter
-
26420230920 O-RingO-Ring
-
27420612132 Oil Filter CoverOil Filter Cover
-
28420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
