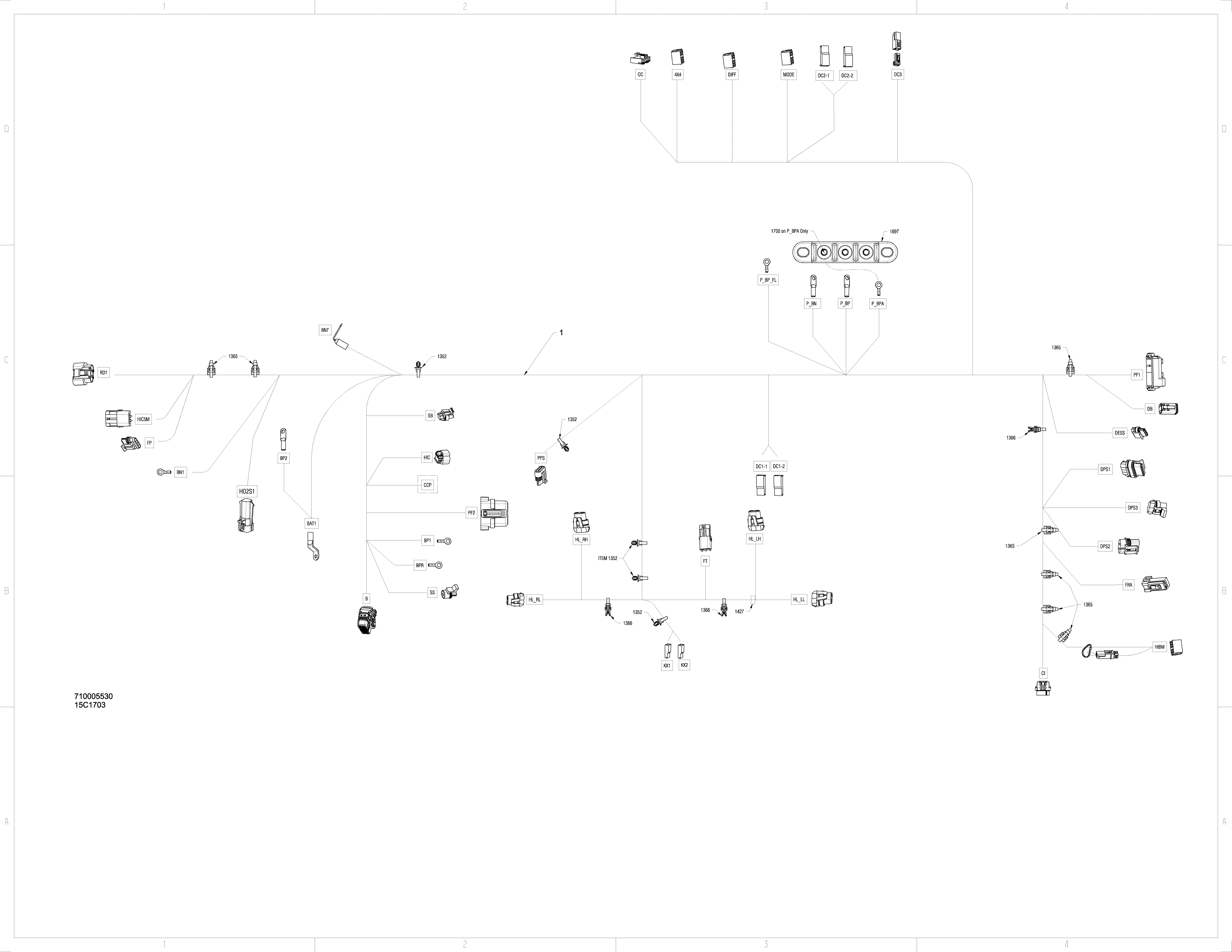

10- Electrical Harness - 710005530_710005531 для BRP Traxter HD5 - 2017
-
№АртикулНазвание
-
1710005530 Main Harness Ass'y. Non Max VersionMain Harness Ass'y. Non Max Version
-
1710005531 Main Harness Ass'y. Max VersionMain Harness Ass'y. Max Version
-
4X4710002000 HousingHousing
-
4X4710005491 Female TerminalFemale Terminal
-
4X4710003047 TerminalTerminal
-
4X4710003048 TerminalTerminal
-
B710001591 CoverCover
-
B710001588 Female Terminal Housing, 48 CircuitsFemale Terminal Housing, 48 Circuits
-
B710001592 PlugPlug
-
B710001593 PlugPlug
-
B710001727 Female TerminalFemale Terminal
-
B710001589 Female TerminalFemale Terminal
-
BAT-1710000519 Open BarrelOpen Barrel
-
BAT-1710001829 Protector CapProtector Cap
-
BN1710000913 TerminalTerminal
-
BP1278000992 Open BarrelOpen Barrel
-
BP2710000518 Open BarrelOpen Barrel
-
BPR710000913 TerminalTerminal
-
CC710000849 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
CC710000848 LockLock
-
CC710001635 TerminalTerminal
-
CCP278001665 Female TerminalFemale Terminal
-
CI515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CI515175802 Retainer BlockRetainer Block
-
CI515175812 PlugPlug
-
CI710000399 Female HousingFemale Housing
-
CI515175803 Wire SealWire Seal
-
CI710001131 Female TerminalFemale Terminal
-
D1409012700 DiodeDiode
-
D2409012700 DiodeDiode
-
DB278002896 Housing, 6 CircuitsHousing, 6 Circuits
-
DB515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
DB293000052 Sealing CapSealing Cap
-
DB278001665 Female TerminalFemale Terminal
-
DB278000632 Female TerminalFemale Terminal
-
DC1_1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
DC1_1409010600 Female TerminalFemale Terminal
-
DC1_2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
DC1_2409010600 Female TerminalFemale Terminal
-
DC2_1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
DC2_1409010600 Female TerminalFemale Terminal
-
DC2_2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
DC2_2409010600 Female TerminalFemale Terminal
-
DC3515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DC3515175231 Female TerminalFemale Terminal
-
DESS710001161 HousingHousing
-
DESS710001162 LockLock
-
DESS710001225 CapCap
-
DESS710001163 Wire SealWire Seal
-
DESS710001164 Female TerminalFemale Terminal
-
DIFF710002000 HousingHousing
-
DIFF710005491 Female TerminalFemale Terminal
-
DIFF710003047 TerminalTerminal
-
DIFF710003048 TerminalTerminal
-
DPS1710001161 HousingHousing
-
DPS1710001162 LockLock
-
DPS1710001225 CapCap
-
DPS1710001163 Wire SealWire Seal
-
DPS1710001164 Female TerminalFemale Terminal
-
DPS2278001326 Fuse Holder CapFuse Holder Cap
-
DPS2278001325 Fuse HolderFuse Holder
-
DPS2710000113 Female TerminalFemale Terminal
-
DPS3710001157 HousingHousing
-
DPS3710001323 LockLock
-
F10710001047 Fuse, 40 AMPFuse, 40 AMP
-
F11710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
F12710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
F13710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F14710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
F15710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F16710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F18710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F2710001047 Fuse, 40 AMPFuse, 40 AMP
-
F4710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F5710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F6710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F7710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F8710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F9710002590 Fuse, 25 AmpsFuse, 25 Amps
-
FL-2715002538 Fuse Link 41-50AMPFuse Link 41-50AMP
-
FP409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
FP278001013 Wire SealWire Seal
-
FP515176621 Wire SealWire Seal
-
FP278001014 Female TerminalFemale Terminal
-
FP710001340 Female TerminalFemale Terminal
-
FRA515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FRA710003896 Female TerminalFemale Terminal
-
FT710000992 ClipClip
-
FT278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FT278000218 Wire SealWire Seal
-
FT409004300 Male TerminalMale Terminal
-
H02S1409210100 ClipClip
-
H02S1710002466 HousingHousing
-
H02S1710002469 LockLock
-
H02S1278001482 SealSeal
-
H02S1710002597 Gold TerminalGold Terminal
-
HIBM710002000 HousingHousing
-
HIBM710003047 TerminalTerminal
-
HIBM710003048 TerminalTerminal
-
HIBM710005491 Female TerminalFemale Terminal
-
HIBM_JMP_F515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
HIBM_JMP_F515175231 Female TerminalFemale Terminal
-
HIBM_JMP_M515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
HIBM_JMP_M515175232 Male TerminalMale Terminal
-
HIC710001928 HousingHousing
-
HIC710001222 LockLock
-
HIC710001225 CapCap
-
HIC710001233 SealSeal
-
HIC710001332 Seal WireSeal Wire
-
HIC710001229 TerminalTerminal
-
HIC710001228 TerminalTerminal
-
HIC5M293650187 ClipClip
-
HIC5M278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
HIC5M278001065 Wire SealWire Seal
-
HIC5M278000222 Male TerminalMale Terminal
-
HL_LH710002578 HousingHousing
-
HL_LH710001427 Wire SealWire Seal
-
HL_LH278002578 TerminalTerminal
-
HL_LL710002578 HousingHousing
-
HL_LL710001427 Wire SealWire Seal
-
HL_LL278002578 TerminalTerminal
-
HL_RH710002578 HousingHousing
-
HL_RH710001427 Wire SealWire Seal
-
HL_RH278002578 TerminalTerminal
-
HL_RL710002578 HousingHousing
-
HL_RL710001427 Wire SealWire Seal
-
HL_RL278002578 TerminalTerminal
-
JB-1710004826 CoverCover
-
JB-1710004825 3-Positions Pole3-Positions Pole
-
JB-1232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
KX1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
KX1409010100 Female TerminalFemale Terminal
-
KX2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
KX2409010100 Female TerminalFemale Terminal
-
MODE710002000 HousingHousing
-
MODE710003047 TerminalTerminal
-
MODE710003048 TerminalTerminal
-
MODE710005491 Female TerminalFemale Terminal
-
P_BP_FL278000992 Open BarrelOpen Barrel
-
P_BPA278001392 Open BarrelOpen Barrel
-
PF1710004855 CoverCover
-
PF1710004854 CoverCover
-
PF1710005467 Fuse DecalFuse Decal
-
PF1710004973 Fuse HolderFuse Holder
-
PF1710004975 LockLock
-
PF1710004976 LockLock
-
PF1710004977 LockLock
-
PF1710004978 LockLock
-
PF1710005201 TerminalTerminal
-
PF1710005200 TerminalTerminal
-
PF1710005199 TerminalTerminal
-
PF1710005198 TerminalTerminal
-
PF1710005197 TerminalTerminal
-
PF1710005196 TerminalTerminal
-
PF1710005195 TerminalTerminal
-
PF1710005194 TerminalTerminal
-
PF1710005193 TerminalTerminal
-
PF1710005192 TerminalTerminal
-
PF1710005191 TerminalTerminal
-
PF1710005190 TerminalTerminal
-
PF1710005189 TerminalTerminal
-
PF1710005473 TerminalTerminal
-
PF2515177451 Fuse Box CoverFuse Box Cover
-
PF2710005393 Fuse DecalFuse Decal
-
PF2278002824 Case Ass'yCase Ass'y
-
PF2278002745 SealSeal
-
PF2278000216 Wire SealWire Seal
-
PF2293300198 SealSeal
-
PF2278000218 Wire SealWire Seal
-
PF2278001065 Wire SealWire Seal
-
PF2710000918 Female TerminalFemale Terminal
-
PF2_SP1278002578 TerminalTerminal
-
PF2_SP2710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2_SP3710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PPS710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PPS278002299 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
R1710001119 Female TerminalFemale Terminal
-
R2515176774 Relay, 30 AMPRelay, 30 AMP
-
R3710001778 RelayRelay
-
R8710003143 50 Amps Relay50 Amps Relay
-
R9715900135 RelayRelay
-
RD1710004974 RelayRelay
-
RD1710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
RD1710000882 CapCap
-
RD1710001932 SealSeal
-
SB710001934 TerminalTerminal
-
SB710002177 HousingHousing
-
SB710002043 LockLock
-
SB278001482 SealSeal
-
SPARE1710001134 Female TerminalFemale Terminal
-
SS710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
SS515177192 Female HousingFemale Housing
-
SS710001153 Seal WireSeal Wire
-
710001164 Female TerminalFemale Terminal
