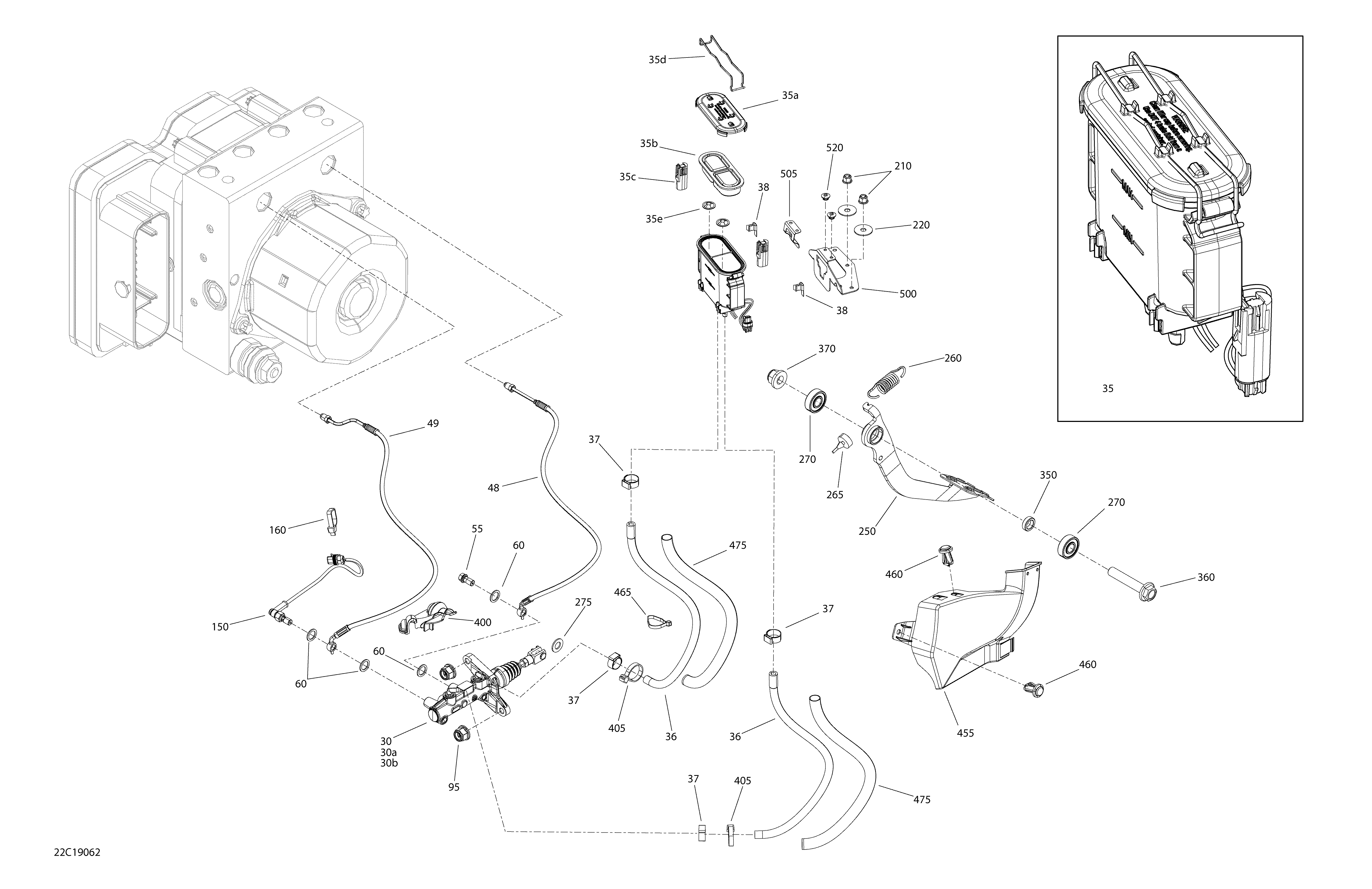

06- Brakes - Master Cylinder для BRP 001 - Maverick Sport 1000R - DPS - T1B Series - 2019
-
№АртикулНазвание
-
30705601568 Master Cylinder. Includes 30 to 30bMaster Cylinder. Includes 30 to 30b
-
30a715900373 Boot Rod KitBoot Rod Kit
-
30b715900374 Fork KitFork Kit
-
35705601526 Master Cylinder Reservoir. Includes 35 to 35eMaster Cylinder Reservoir. Includes 35 to 35e
-
35a219800350 Diaphragm Cover AssemblyDiaphragm Cover Assembly
-
35b219800350 Diaphragm Cover AssemblyDiaphragm Cover Assembly
-
35c705601073 Oil Level SensorOil Level Sensor
-
35d705601294 Spindle LockSpindle Lock
-
35e211100002 Push NutPush Nut
-
36705601801 HoseHose
-
37293650046 Oetiker ClampOetiker Clamp
-
38710001343 ClipClip
-
48705601663 Front Master Cylinder HoseFront Master Cylinder Hose
-
49705601664 Rear Master Cylinder HoseRear Master Cylinder Hose
-
55705600609 Banjo Bolt (M10 x 1.25 thread)Banjo Bolt (M10 x 1.25 thread)
-
60705601628 Copper WasherCopper Washer
-
95233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
150705601669 Brake SwitchBrake Switch
-
160293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
210233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
220250200040 Flat WasherFlat Washer
-
250705601537 Brake PedalBrake Pedal
-
260705600792 Brake Pedal SpringBrake Pedal Spring
-
265708000759 Rubber StopperRubber Stopper
-
270705600458 BearingBearing
-
275250200183 Nylon Flat Washer M8Nylon Flat Washer M8
-
350705601622 BushingBushing
-
360207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
370233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
400705601750 Support HoseSupport Hose
-
405293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
455705601626 Master Cylinder DeflectorMaster Cylinder Deflector
-
460293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
465293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
475415079900 Tubing 10 mmTubing 10 mm
-
500705601644 Reservoir SupportReservoir Support
-
505705601608 Stopper BracketStopper Bracket
-
520390402200 Pop Rivet 3/16''Pop Rivet 3/16''
