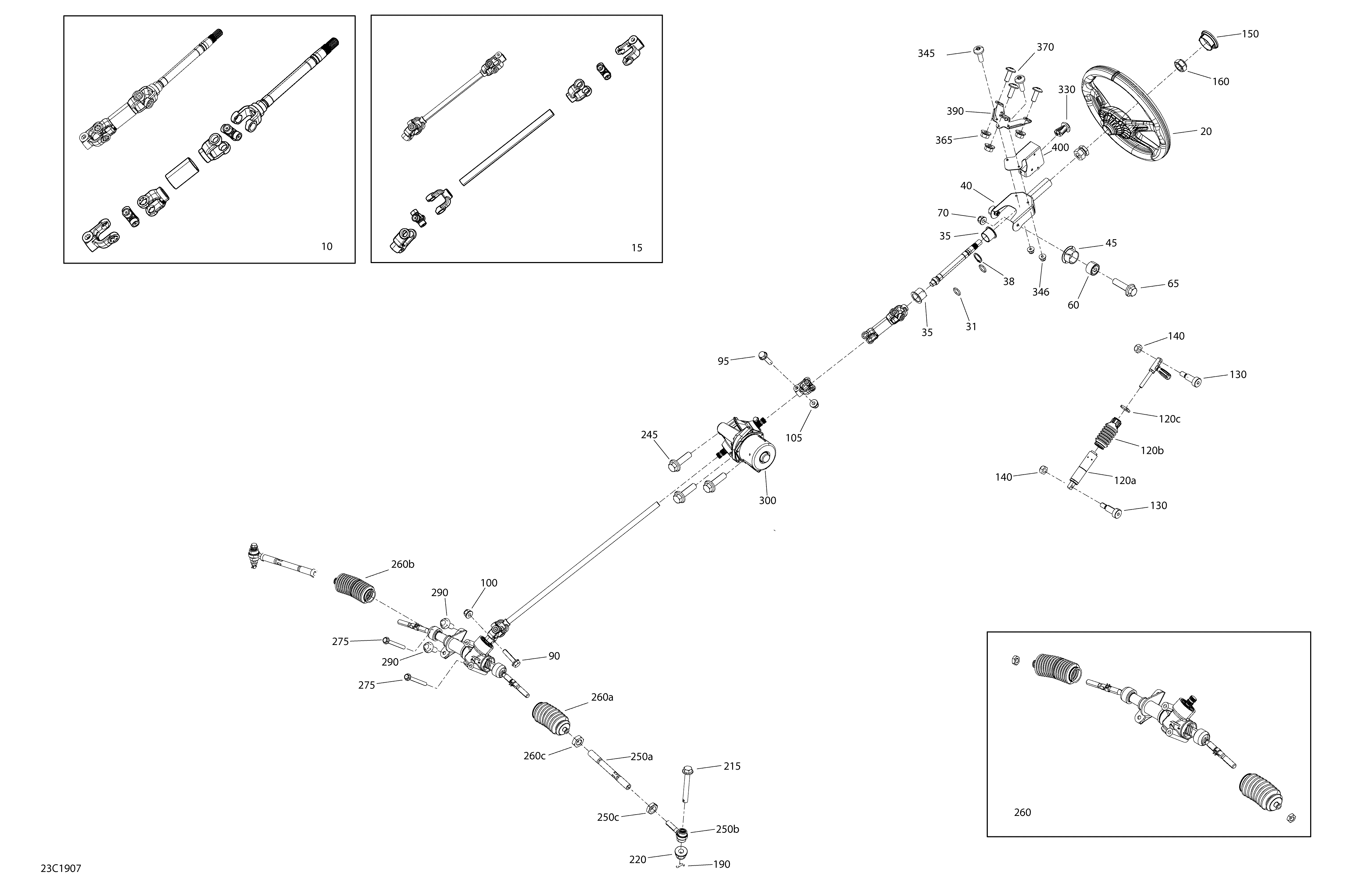

07- Steering для BRP 001 - Maverick Sport 1000R - DPS - T1B Series - 2019
-
№АртикулНазвание
-
10709402127 Upper DPS Shaft Ass'yUpper DPS Shaft Ass'y
-
15709401988 Lower Dps Shaft Ass'yLower Dps Shaft Ass'y
-
20709401966 Steering WheelSteering Wheel
-
31293300144 O-RingO-Ring
-
35709401733 BushingBushing
-
38293370110 CirclipCirclip
-
40709401602 Steering SupportSteering Support
-
45709401603 BushingBushing
-
60709401604 BushingBushing
-
65207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
70233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
90250001021 Flanged Hex. Screw M8 X 35Flanged Hex. Screw M8 X 35
-
95250001021 Flanged Hex. Screw M8 X 35Flanged Hex. Screw M8 X 35
-
100233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
105233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
120a709400656 Adjustment CylinderAdjustment Cylinder
-
120b709401232 Boot Kit, Tube SideBoot Kit, Tube Side
-
120c414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
130250000669 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
140232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
150709401514 Steering CapSteering Cap
-
160232511414 Elastic Lock Nut M16Elastic Lock Nut M16
-
190211400017 Cotter PinCotter Pin
-
215250000814 Screw Hex Cap M10 X 75Screw Hex Cap M10 X 75
-
220233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
245207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
250a>250c709402023 Rod ass'y. Includes 250 to 250cRod ass'y. Includes 250 to 250c
-
250B709401991 Ball JointBall Joint
-
250c715900238 Steering Rode NutSteering Rode Nut
-
260>260c709402289 Rack & Pinion Ass'y. Includes 260 to 260cRack & Pinion Ass'y. Includes 260 to 260c
-
260a715900235 Boot Kit, Pinion SideBoot Kit, Pinion Side
-
260b715900236 Boot Kit, Tube SideBoot Kit, Tube Side
-
260c715900238 Steering Rode NutSteering Rode Nut
-
275230500046 Hex. Screw M10 X 100, Scotch GripHex. Screw M10 X 100, Scotch Grip
-
290207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
300709402322 Power Steering Ass'yPower Steering Ass'y
-
330293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
345250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
346233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
365233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
370250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
390707900394 Cluster SupportCluster Support
-
400709402187 Flasher ArmSupportFlasher ArmSupport
