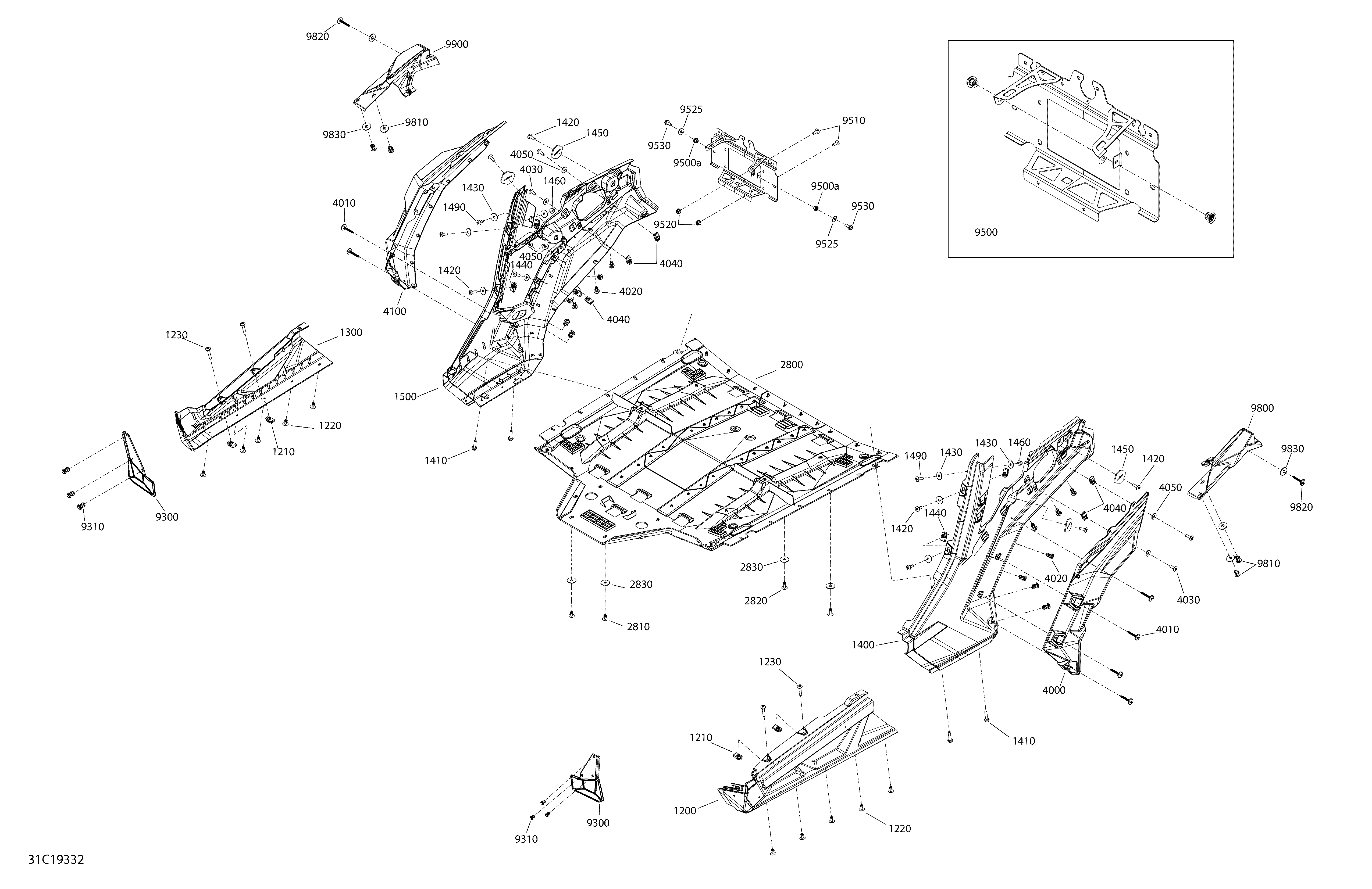

09- Body - 1000R - Red - Middle Section для BRP 001 - Maverick Sport 1000R - DPS - T1B Series - 2019
-
№АртикулНазвание
-
1200705011331 LH Rocker PanelLH Rocker Panel
-
1210250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1220293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
1230250000867 Torx-truss M6 X 35Torx-truss M6 X 35
-
1300705011332 RH Rocker PanelRH Rocker Panel
-
1400705011335 LH Rear PannelLH Rear Pannel
-
1410207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1420250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1430250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1440250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1450705003841 Support PlateSupport Plate
-
1460233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
1490250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1500705011336 RH Rear PannelRH Rear Pannel
-
2800705011427 Front Skid PlateFront Skid Plate
-
2810293150087 Pop Rivet 3/16”Pop Rivet 3/16”
-
2820293150087 Pop Rivet 3/16”Pop Rivet 3/16”
-
2830224060251 WasherWasher
-
4000705012097 LH Rear Mud GuardLH Rear Mud Guard
-
4010250000840 Torx-Screw Truss Head PT.K50 X 40Torx-Screw Truss Head PT.K50 X 40
-
4020293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4030250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4040250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4050234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4100705012098 RH Rear 60'' Mud Guard ExtensionRH Rear 60'' Mud Guard Extension
-
9300705012793 Front Mud Flap Model TFront Mud Flap Model T
-
9310293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
9500705013731 Licence Plate Support Ass'y. Includes 9500 to 9500aLicence Plate Support Ass'y. Includes 9500 to 9500a
-
9500a250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
9510250000721 Torx ScrewTorx Screw
-
9520233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
9525234062670 Flat Washer, StainlessFlat Washer, Stainless
-
9530207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
9800705012799 LH Rear Flasher Support Model TLH Rear Flasher Support Model T
-
9810293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
9820250000840 Torx-Screw Truss Head PT.K50 X 40Torx-Screw Truss Head PT.K50 X 40
-
9830234082670 Flat Washer, StainlessFlat Washer, Stainless
-
9900705012800 RH Rear Flasher Support Model TRH Rear Flasher Support Model T
-
10000250000717 Torx Head Screw M6 X 16. Non ShownTorx Head Screw M6 X 16. Non Shown
