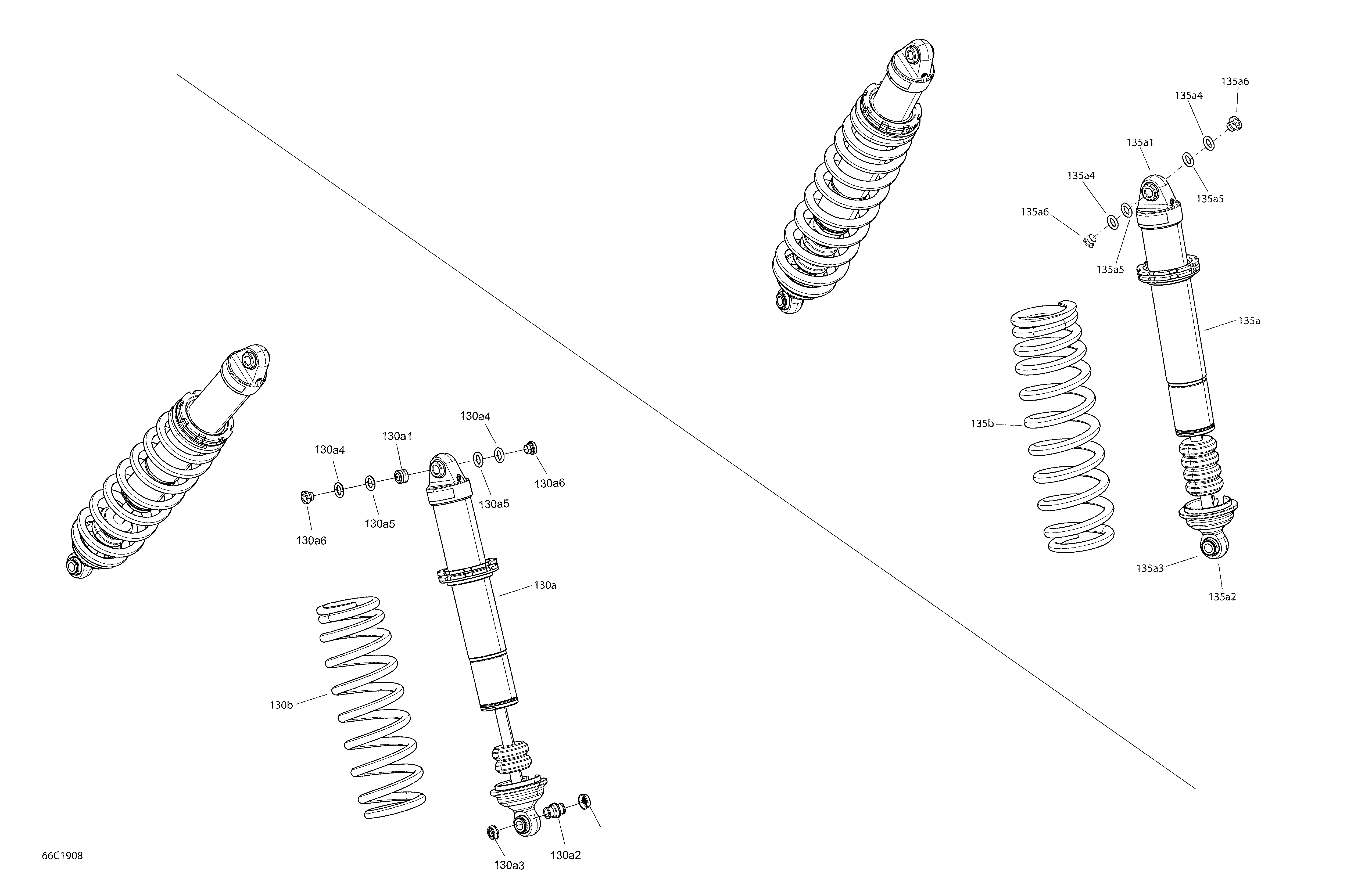

07- Shocks - Package DPS для BRP 001 - Maverick Sport 1000R - DPS - T1B Series - 2019
-
№АртикулНазвание
-
130a706203194 Front Shock. Includes 130a to 130a6Front Shock. Includes 130a to 130a6
-
130a1715900329 Spherical BearingSpherical Bearing
-
130a2715900330 Spherical BearingSpherical Bearing
-
130a3715900331 ProtectorProtector
-
130a4715900268 O-Ring BushingO-Ring Bushing
-
130a5715900252 Retaining RingRetaining Ring
-
130a6715900267 Internal BushingInternal Bushing
-
130b706203560 Red Front Spring. RedRed Front Spring. Red
-
130b706203561 Sunburst Yellow Front Spring. Sunburst YellowSunburst Yellow Front Spring. Sunburst Yellow
-
135a706003029 Rear Shock. Includes 135a to 135a6Rear Shock. Includes 135a to 135a6
-
135a1715900329 Spherical BearingSpherical Bearing
-
135a2715900330 Spherical BearingSpherical Bearing
-
135a3715900331 ProtectorProtector
-
135a4715900268 O-Ring BushingO-Ring Bushing
-
135a5715900252 Retaining RingRetaining Ring
-
135a6715900267 Internal BushingInternal Bushing
-
135b706003354 Can-Am Red, Rear Spring. RedCan-Am Red, Rear Spring. Red
-
135b706003355 Sunburst Yellow, Rear Spring. Sunburst YellowSunburst Yellow, Rear Spring. Sunburst Yellow
