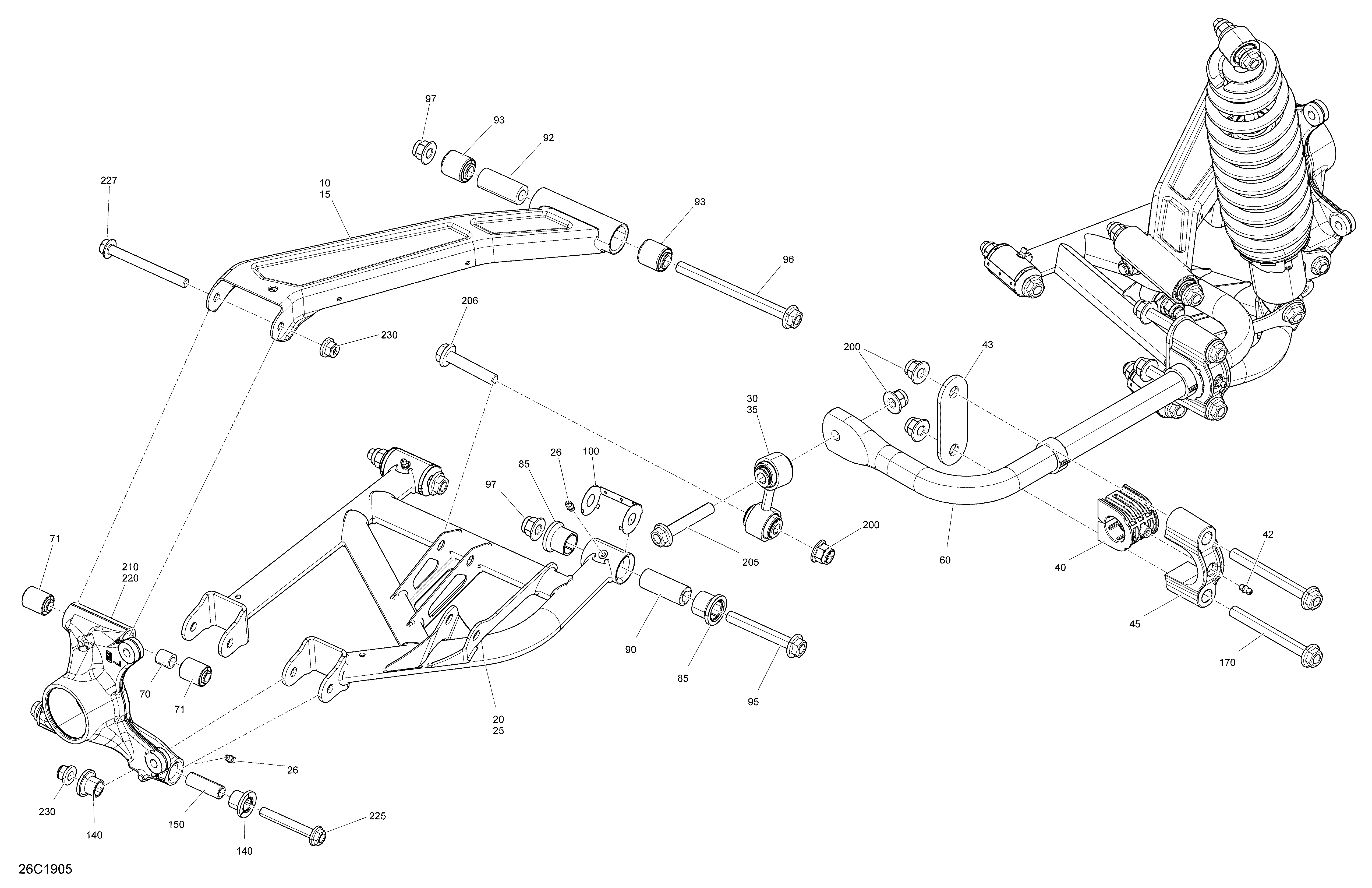

08- Rear Suspension для BRP 001 - Maverick Sport 1000R - DPS - T1B Series - 2019
-
№АртикулНазвание
-
10715006131 Black LH Rear Upper Susp Arm Ass'y. Incl 92,93Black LH Rear Upper Susp Arm Ass'y. Incl 92,93
-
15715006132 Black RH Rear Upper Susp Arm Ass'y. Incl 92,93Black RH Rear Upper Susp Arm Ass'y. Incl 92,93
-
20706002731 LH Lower Suspension ArmLH Lower Suspension Arm
-
25706002732 RH Lower Suspension ArmRH Lower Suspension Arm
-
26408200700 Grease FittingGrease Fitting
-
30706003004 Swaybar Double LinkSwaybar Double Link
-
35706003003 Swaybar Double LinkSwaybar Double Link
-
40706003411 CushionCushion
-
42408200700 Grease FittingGrease Fitting
-
43706002977 Plate SupportPlate Support
-
45706002970 ClampClamp
-
60706002972 Sway Bar Ass'ySway Bar Ass'y
-
85706201659 CushionCushion
-
90706202257 Interior BushingInterior Bushing
-
95250000859 Screw Flange M12 X 85Screw Flange M12 X 85
-
96250000861 Screw Flange M12 X 145Screw Flange M12 X 145
-
97233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
100706202300 Wear PlateWear Plate
-
140703500875 Bushing KitBushing Kit
-
150703500875 Bushing KitBushing Kit
-
170250000860 Screw Flange M12 X 115Screw Flange M12 X 115
-
200233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
205250000858 Hexagonal Flanged Screw M12 X 70Hexagonal Flanged Screw M12 X 70
-
206250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
210715006137 LH Rear Knuckle Ass'y. Incl 70, 71LH Rear Knuckle Ass'y. Incl 70, 71
-
220715006138 RH Rear Knuckle Ass'y. Incl 70, 71RH Rear Knuckle Ass'y. Incl 70, 71
-
225207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
227230600046 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
230233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
