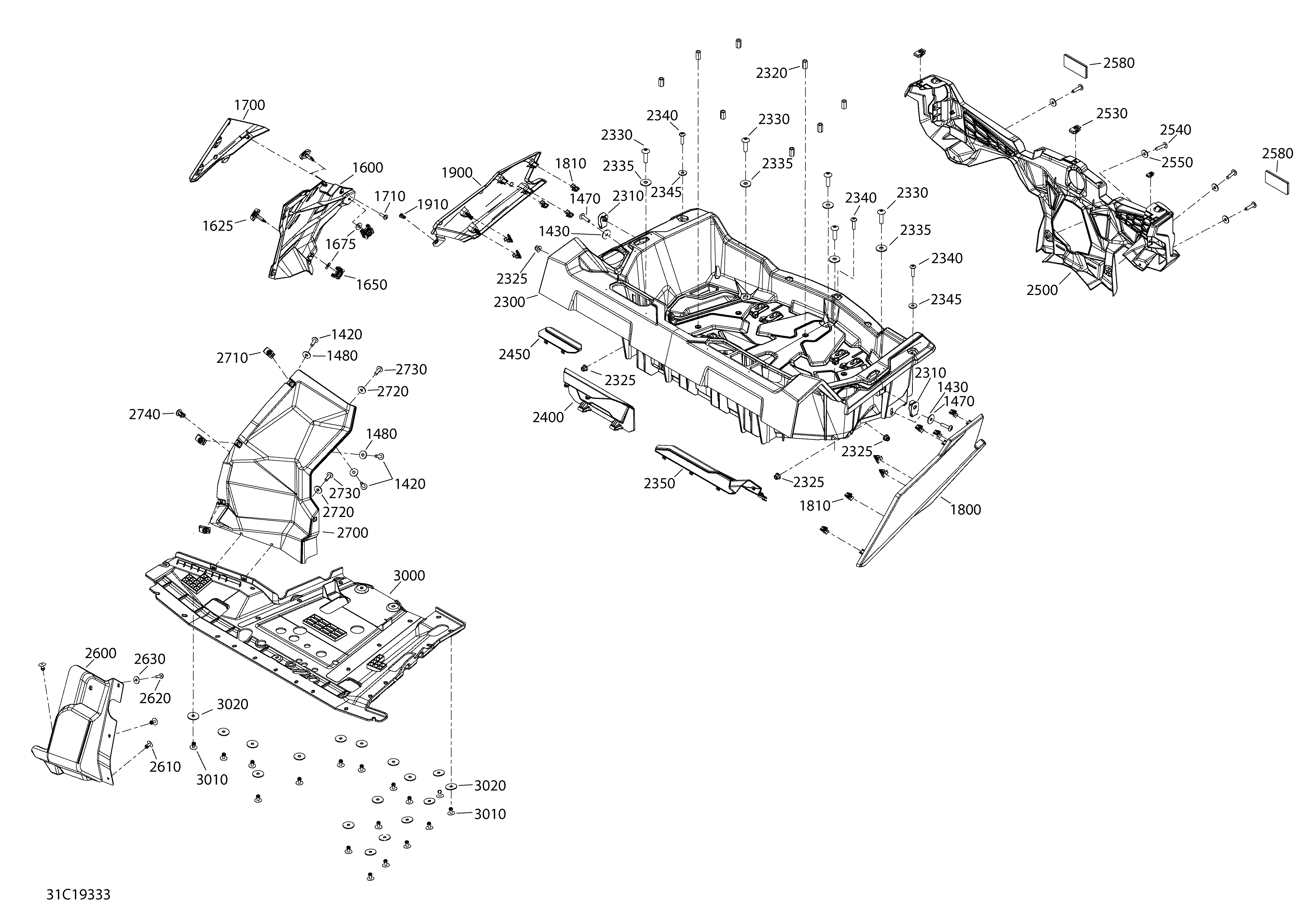

09- Body - 1000R - Red - Rear Section для BRP 001 - Maverick Sport 1000R - DPS - T1B Series - 2019
-
№АртикулНазвание
-
1420250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1430250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1470250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
1480234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1600705011338 Air Filter Acces DoorAir Filter Acces Door
-
1625708400278 Quarter TurnQuarter Turn
-
1650708400285 ClipClip
-
1675708400286 WasherWasher
-
1700705012623 Red, Acces Panel TrimRed, Acces Panel Trim
-
1710250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1800705012427 Red, LH Rear Cargo TrimRed, LH Rear Cargo Trim
-
1810517306478 ClipClip
-
1900705012428 Red, RH Rear Cargo TrimRed, RH Rear Cargo Trim
-
1910293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2300705011337 Rear BoxRear Box
-
2310250100177 Panel nut M6Panel nut M6
-
2320250100207 Hex. Coupling Nut M6Hex. Coupling Nut M6
-
2325233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2330250000745 Hex Torx Truss M8 X30Hex Torx Truss M8 X30
-
2335234082670 Flat Washer, StainlessFlat Washer, Stainless
-
2340250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
2345234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2350705011339 Cvt Air Inlet CoverCvt Air Inlet Cover
-
2400715006150 Liquid Acces CoverLiquid Acces Cover
-
2450705011340 Air Intake CoverAir Intake Cover
-
2500705011426 Rear FasciaRear Fascia
-
2530250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2540250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
2550234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2580520001820 Red ReflectorRed Reflector
-
2600705011512 LH Rear Inner FenderLH Rear Inner Fender
-
2610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2620250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2630250200025 Washer M5Washer M5
-
2700705011513 RH Rear Inner FenderRH Rear Inner Fender
-
2710250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2720234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2730250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2740293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3000705011429 Rear Skid PlateRear Skid Plate
-
3010293150087 Pop Rivet 3/16”Pop Rivet 3/16”
-
3020224060251 WasherWasher
