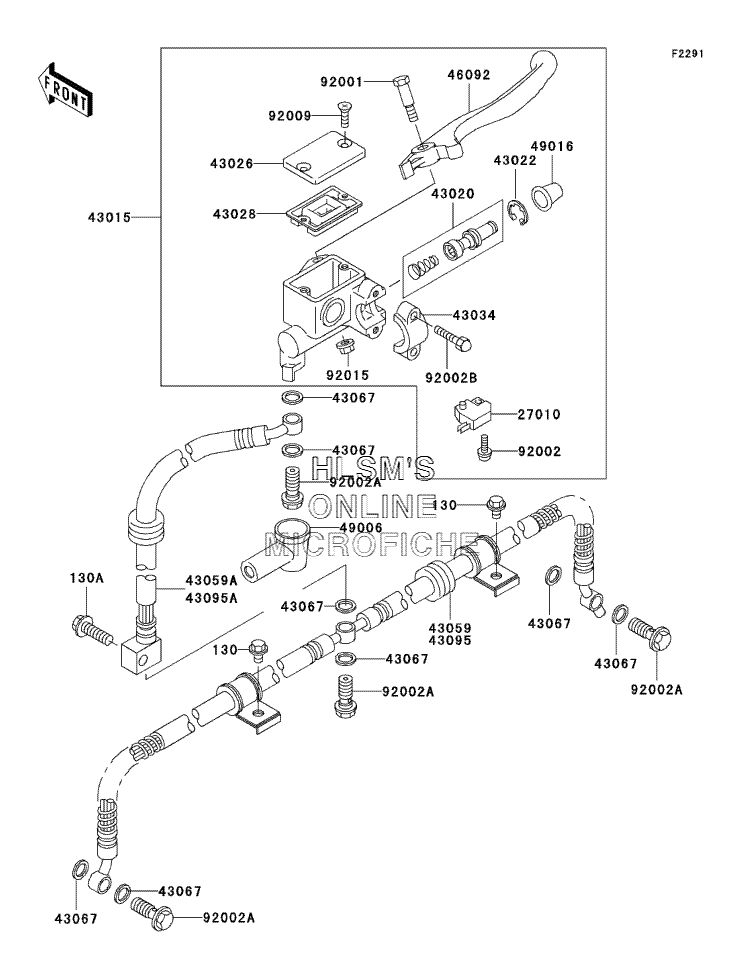

BRAKE - MASTER CYLINDER - FRONT для Kawasaki Lakota Sport (KEF300-B2) - 2002 года выпуска
-
№АртикулНазвание
-
130130B0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
130A130B0825 BOLT, FLANGED, 8X25BOLT, FLANGED, 8X25
-
2701027010-1170 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-1646 CYLINDER, ASSY, MASTER (FRONT)CYLINDER, ASSY, MASTER (FRONT)
-
4302043020-1056 PISTON, COMP, BRAKE (FRONT)PISTON, COMP, BRAKE (FRONT)
-
4302243022-1010 STOPPER, BRAKE, PISTONSTOPPER, BRAKE, PISTON
-
4302643026-1074 CAP, BRAKECAP, BRAKE
-
4302843028-1061 DIAPHRAGMDIAPHRAGM
-
4303443034-1016 HOLDER, BRAKE, MASTER CYLINDERHOLDER, BRAKE, MASTER CYLINDER
-
4305943059-1875 HOSE, BRAKE (FRONT)HOSE, BRAKE (FRONT)
-
43059A43059-1876 HOSE, BRAKE (FRONT)HOSE, BRAKE (FRONT)
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4609246092-1208 LEVER, GRIP (FRONT) BRAKELEVER, GRIP (FRONT) BRAKE
-
4900649006-1040 BOOT, DUSTBOOT, DUST
-
4901649016-1044 COVER, SEAL, MASTER CYLINDERCOVER, SEAL, MASTER CYLINDER
-
9200192001-1728 BOLT, FRONT BRAKE LEVERBOLT, FRONT BRAKE LEVER
-
9200292002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002A92002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
92002B92002-1894 BOLTBOLT
-
9200992009-1458 SCREW, 4MMSCREW, 4MM
-
9201592015-1233 NUT, FLANGED, 6MM (BLACK)NUT, FLANGED, 6MM (BLACK)
