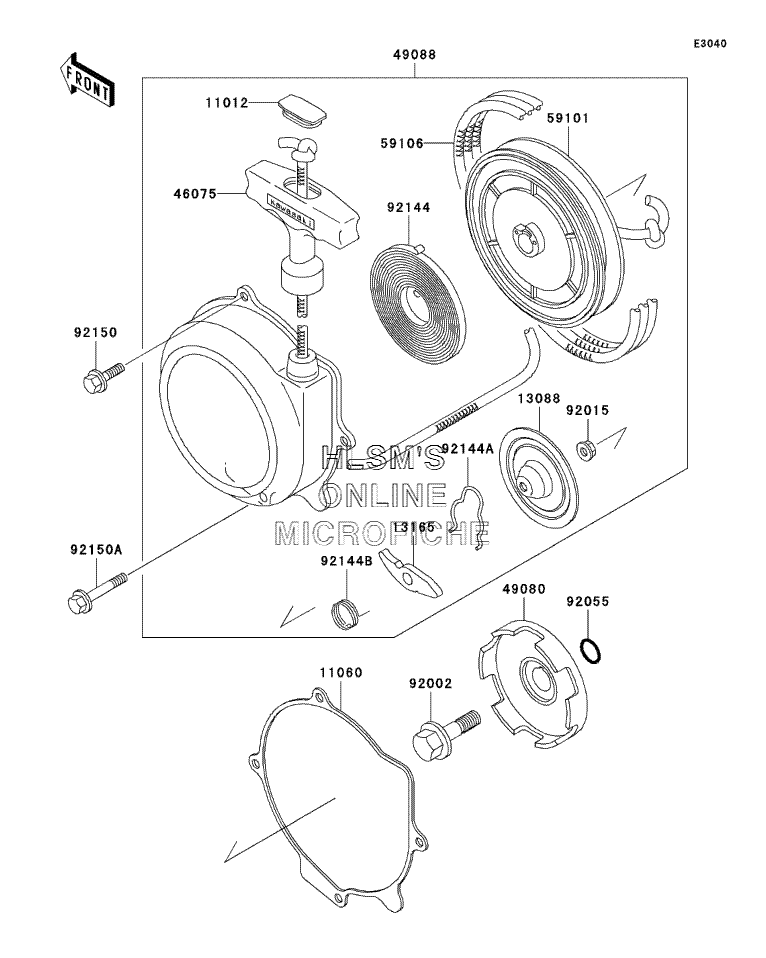

STARTER - RECOIL для Kawasaki Lakota Sport (KEF300-B2) - 2002 года выпуска
-
№АртикулНазвание
-
1101211012-1420 CAP, RECOIL GRIPCAP, RECOIL GRIP
-
1106011060-1696 GASKET, RECOIL STARTERGASKET, RECOIL STARTER
-
1308813088-1073 PLATE, FRICTION, RECOILPLATE, FRICTION, RECOIL
-
1316513165-1123 PAWL, RECOILPAWL, RECOIL
-
4607546075-1073 GRIP, RECOILGRIP, RECOIL
-
4908049080-1055 PULLEY, STARTINGPULLEY, STARTING
-
4908849088-1055 STARTER, RECOILSTARTER, RECOIL
-
5910159101-1109 REELREEL
-
5910659106-1103 ROPEROPE
-
9200292002-1296 BOLT, FLANGED, 10X40BOLT, FLANGED, 10X40
-
9201592015-1464 NUT, 6MMNUT, 6MM
-
9205592055-1235 O-RING, 16.8MMO-RING, 16.8MM
-
9214492144-1205 SPRING, RECOILSPRING, RECOIL
-
92144A92144-1206 SPRING, FRICTIONSPRING, FRICTION
-
92144B92144-1207 SPRING, RETURNSPRING, RETURN
-
9215092150-1916 BOLTBOLT
-
92150A92150-1917 BOLTBOLT
