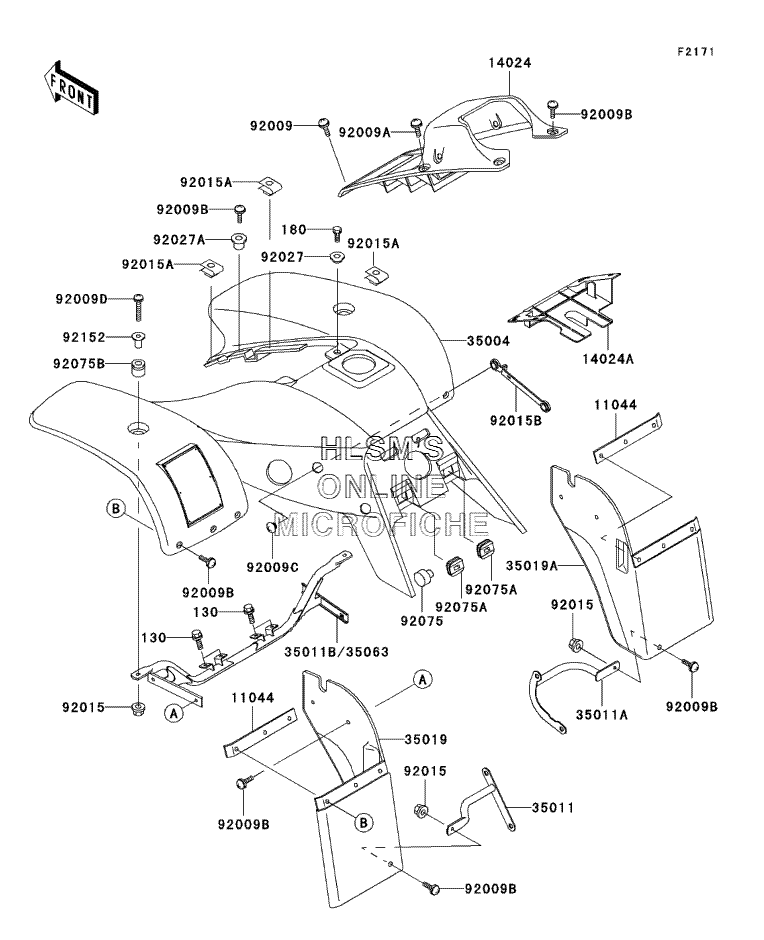

FENDER - FRONT для Kawasaki Lakota Sport (KEF300-B2) - 2002 года выпуска
-
№АртикулНазвание
-
130130P0612 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
180180D0635 BOLT, UPSET, WS, 6X35BOLT, UPSET, WS, 6X35
-
1104411044-1934 BRACKET, FLAPBRACKET, FLAP
-
1402414024-1268-AY COVER, FRONT FENDER, C.BLUECOVER, FRONT FENDER, C.BLUE
-
14024A14024-1297 COVER, FRONT FENDER, INNERCOVER, FRONT FENDER, INNER
-
3500435004-1379-AY FENDER, FRONT, C.BLUEFENDER, FRONT, C.BLUE
-
3501135011-1694-5A STAY, FRONT FLAP (LEFT) SILVERSTAY, FRONT FLAP (LEFT) SILVER
-
35011A35011-1695-5A STAY, FRONT FLAP (RIGHT) SILVERSTAY, FRONT FLAP (RIGHT) SILVER
-
3501935019-1172 FLAP (LEFT)FLAP (LEFT)
-
35019A35019-1173 FLAP (RIGHT)FLAP (RIGHT)
-
3506335063-1169 STAY (FRONT) FENDERSTAY (FRONT) FENDER
-
9200992009-1181 SCREW, 6X18 (BLACK)SCREW, 6X18 (BLACK)
-
92009A92009-1256 SCREW, 6X22 (BLACK)SCREW, 6X22 (BLACK)
-
92009B92009-1288 SCREW, 6X14SCREW, 6X14
-
92009C92009-1508 SCREW, 16MMSCREW, 16MM
-
92009D92009-1672 SCREW, 6X35SCREW, 6X35
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92015A92015-1678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
92015B92015-1701 NUTNUT
-
9202792027-1933 COLLAR, L=5.6COLLAR, L=5.6
-
92027A92027-1964 COLLAR, L=4.7COLLAR, L=4.7
-
9207592075-023 DAMPER, DUAL SEATDAMPER, DUAL SEAT
-
92075A92075-1834 DAMPERDAMPER
-
92075B92075-1936 DAMPERDAMPER
-
9215292152-1292 COLLAR, L=19.6COLLAR, L=19.6
