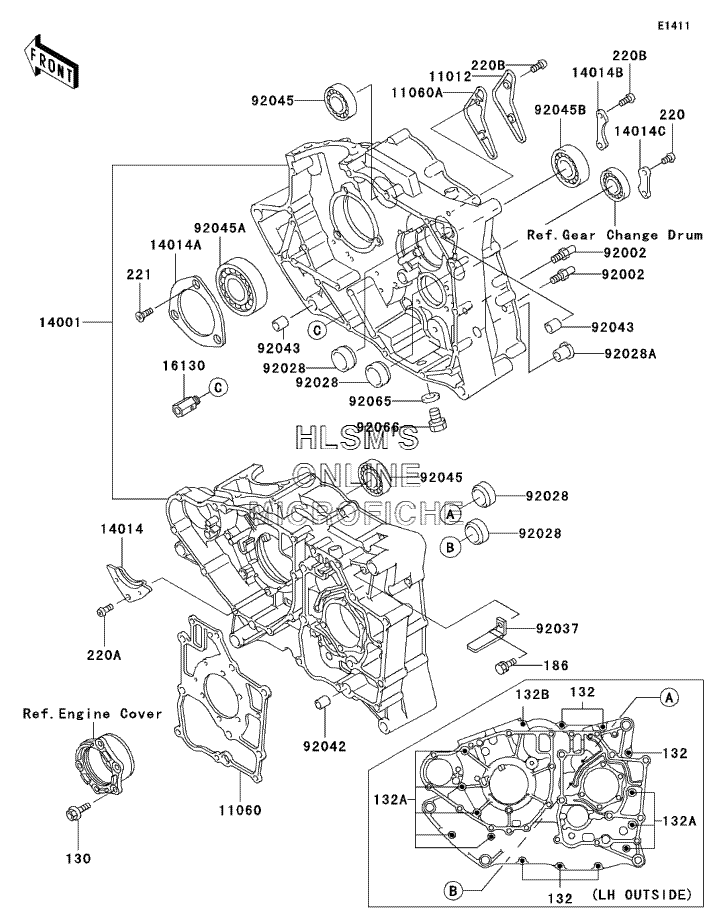

CRANKCASE для Kawasaki Lakota Sport (KEF300-B2) - 2002 года выпуска
-
№АртикулНазвание
-
130130P0620 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
132132Y0635 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132Y0665 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132Y0685 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
186186D0614 BOLT, UPSET, WPBOLT, UPSET, WP
-
220220B0610 SCREW, PAN, CROS, 6X10SCREW, PAN, CROS, 6X10
-
220A220B0612 SCREW, PAN, CROS, 6X12SCREW, PAN, CROS, 6X12
-
220B220B0614 SCREW, PAN, CROS, 6X14SCREW, PAN, CROS, 6X14
-
221221B0616 SCREW, CSK, CROS, 6X16SCREW, CSK, CROS, 6X16
-
1101211012-1443 CAPCAP
-
1106011060-1653 GASKET, GEAR CASEGASKET, GEAR CASE
-
11060A11060-1654 GASKET, OIL LINE CAPGASKET, OIL LINE CAP
-
1400114001-5324 SET, CRANKCASESET, CRANKCASE
-
1401414014-035 PLATE, POSITION, CAM CHAINPLATE, POSITION, CAM CHAIN
-
14014A14014-1004 PLATE, POSITION, CRANK BEARINGPLATE, POSITION, CRANK BEARING
-
14014B14014-1069 PLATE, POSITIONPLATE, POSITION
-
14014C14014-1070 PLATE, POSITION, CHANGE DRUMPLATE, POSITION, CHANGE DRUM
-
1613016130-1001 VALVE, ASSY, RELIEFVALVE, ASSY, RELIEF
-
9200292002-1408 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
9202892028-132 BUSHING, 23X30X13BUSHING, 23X30X13
-
92028A92028-1386 BUSHINGBUSHING
-
9203792037-1316 CLAMP, HARNESSCLAMP, HARNESS
-
9204292042-031 PIN, DOWEL, 12X14PIN, DOWEL, 12X14
-
9204392043-1279 PIN, 11.5X14X14PIN, 11.5X14X14
-
9204592045-1118 BEARING, BALL, 6004TMBBEARING, BALL, 6004TMB
-
92045A92045-1172 BEARING, BALLBEARING, BALL
-
92045B92045-1173 BEARING, BALLBEARING, BALL
-
9206592065-097 GASKET, 12X22X2, DRAIN PLUGGASKET, 12X22X2, DRAIN PLUG
-
9206692066-1174 PLUG, OIL DRAIN, 12X15PLUG, OIL DRAIN, 12X15
