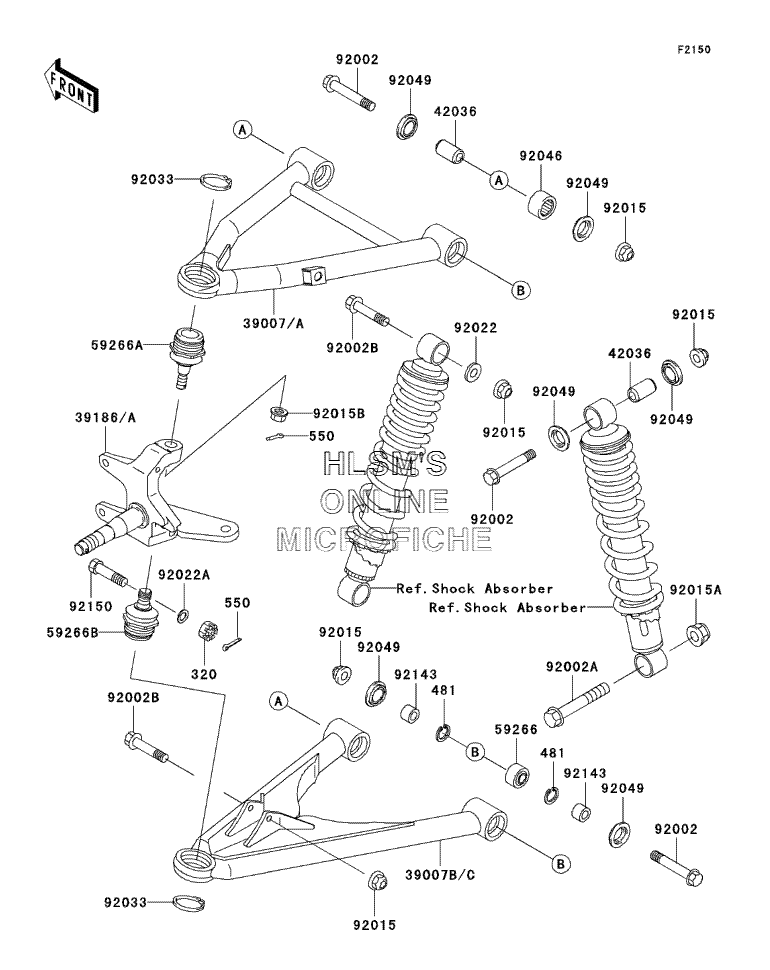

SUSPENSION для Kawasaki Lakota Sport (KEF300-B2) - 2002 года выпуска
-
№АртикулНазвание
-
320320H1000 NUT, CASTLENUT, CASTLE
-
481481J2400 CIRCLIPCIRCLIP
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
3900739007-1220-5A ARM, SUSPENSION (LEFT) (UPPER) SILVER NO.40ARM, SUSPENSION (LEFT) (UPPER) SILVER NO.40
-
39007A39007-1221-5A ARM, SUSPENSION (RIGHT) (UPPER) SILVER NO.40ARM, SUSPENSION (RIGHT) (UPPER) SILVER NO.40
-
39007B39007-1222-5A ARM, SUSPENSION (FRONT) (LEFT) (LOWER) SILVERARM, SUSPENSION (FRONT) (LEFT) (LOWER) SILVER
-
39007C39007-1223-5A ARM, SUSPENSION (FRONT) (RIGHT) (LOWER) SILVERARM, SUSPENSION (FRONT) (RIGHT) (LOWER) SILVER
-
3918639186-1062 KNUCKLE (LEFT)KNUCKLE (LEFT)
-
39186A39186-1064 KNUCKLE (RIGHT)KNUCKLE (RIGHT)
-
4203642036-1183 SLEEVE, 10X17X40SLEEVE, 10X17X40
-
5926659266-1011 JOINT, BALLJOINT, BALL
-
59266A59266-1075 JOINT, BALLJOINT, BALL
-
59266B59266-1098 JOINT, BALLJOINT, BALL
-
9200292002-1738 BOLT, FLANGED, 10X61BOLT, FLANGED, 10X61
-
92002A92002-1739 BOLT, FLANGED, 12X78BOLT, FLANGED, 12X78
-
92002B92002-1740 BOLT, FLANGED, 10X46BOLT, FLANGED, 10X46
-
9201592015-1597 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
92015A92015-1617 NUT, FLANGED, LOCK, 12MMNUT, FLANGED, LOCK, 12MM
-
92015B92015-1717 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
9202292022-176 WASHER, 10X22X3.2WASHER, 10X22X3.2
-
92022A92022-1829 WASHER, 10.2X16X1WASHER, 10.2X16X1
-
9203392033-1218 RING, SNAP, 30MMRING, SNAP, 30MM
-
9204692046-1046 BEARING, NEEDLEBEARING, NEEDLE
-
9204992049-1223 SEAL, OIL, MHA17245.7FSEAL, OIL, MHA17245.7F
-
9214392143-1010 COLLAR, 10X17X12COLLAR, 10X17X12
-
9215092150-1226 BOLT, 10X44BOLT, 10X44
