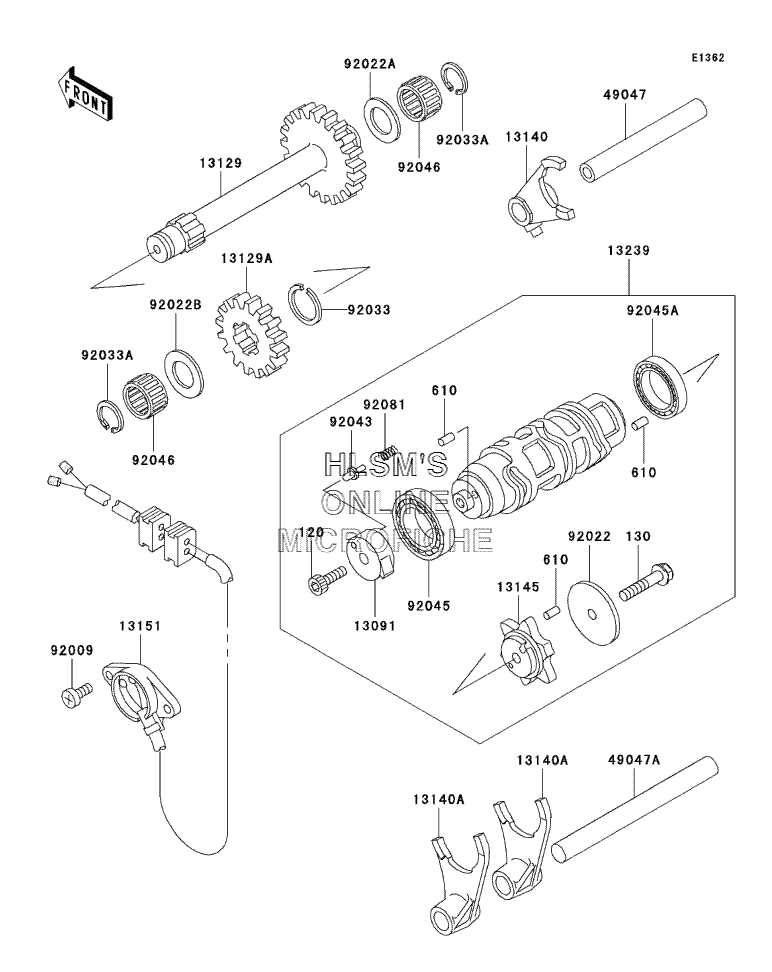

GEAR CHANGE DRUM/SHIFT FORK(S) для Kawasaki Lakota Sport (KEF300-B2) - 2002 года выпуска
-
№АртикулНазвание
-
120120Q0620 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
130130G0630 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
610610A0410 ROLLER, 4X10ROLLER, 4X10
-
1309113091-1443 HOLDER, NEUTRAL SWITCHHOLDER, NEUTRAL SWITCH
-
1312913129-1705 GEAR, REVERSEGEAR, REVERSE
-
13129A13129-1706 GEAR, REVERSE (20 TEETH)GEAR, REVERSE (20 TEETH)
-
1314013140-1134 FORK, SHIFTFORK, SHIFT
-
13140A13140-1135 FORK, SHIFTFORK, SHIFT
-
1314513145-1057 CAM, CHANGE DRUMCAM, CHANGE DRUM
-
1315113151-1097 SWITCH, COMPSWITCH, COMP
-
1323913239-1154 DRUM, ASSY, CHANGEDRUM, ASSY, CHANGE
-
4904749047-1003 ROD, SHIFT, L=93.7ROD, SHIFT, L=93.7
-
49047A49047-1062 ROD, SHIFTROD, SHIFT
-
9200992009-1341 SCREW, 5X14SCREW, 5X14
-
9202292022-1500 WASHER, 6.2X38X1.2WASHER, 6.2X38X1.2
-
92022A92022-255 WASHER, 17.3X28X1WASHER, 17.3X28X1
-
92022B92022-270 WASHER, 17.3X30X1.4WASHER, 17.3X30X1.4
-
9203392033-025 RING, SNAP, 20X25.5X1.2RING, SNAP, 20X25.5X1.2
-
92033A92033-032 RING, SNAPRING, SNAP
-
9204392043-1287 PINPIN
-
9204592045-1122 BEARING, BALL, 6805BEARING, BALL, 6805
-
92045A92045-1150 BEARING, BALL, 6905X1BEARING, BALL, 6905X1
-
9204692046-1184 BEARING, NEEDLE, K17X23X13.8BEARING, NEEDLE, K17X23X13.8
-
9208192081-1763 SPRINGSPRING
