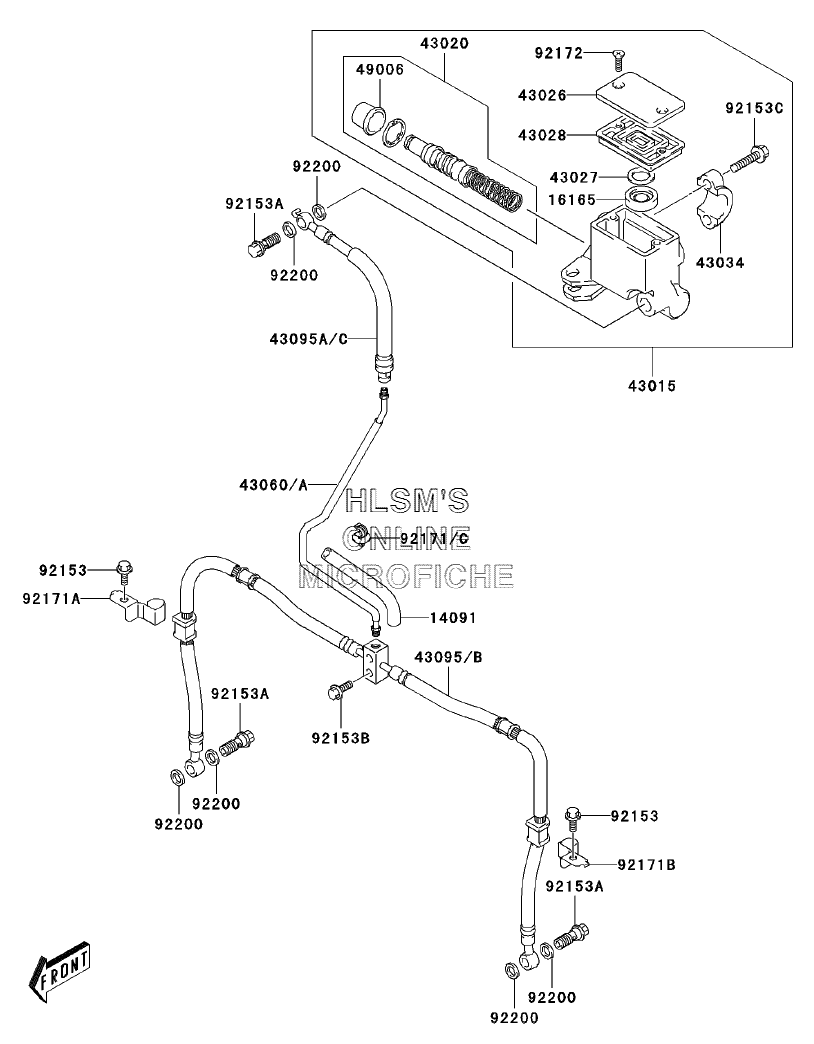

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KFX400 (KSF400-A3) - 2005 года выпуска
-
№АртикулНазвание
-
1409114091-S092 COVER, BRAKE PIPECOVER, BRAKE PIPE
-
1616516165-S004 SEPARATORSEPARATOR
-
4301543015-S008 CYLINDER-ASSY-MASTER (FRONT)CYLINDER-ASSY-MASTER (FRONT)
-
4302043020-S004 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-S006 CAP-BRAKECAP-BRAKE
-
4302743027-S001 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-S005 DIAPHRAGMDIAPHRAGM
-
4303443034-S002 HOLDER-BRAKEHOLDER-BRAKE
-
43060A43060-S004 PIPE-BRAKEPIPE-BRAKE
-
43095B43095-S027 HOSE-BRAKEHOSE-BRAKE
-
43095C43095-S028 HOSE-BRAKEHOSE-BRAKE
-
4900649006-S004 BOOTBOOT
-
9215392153-S010 BOLTBOLT
-
92153A92153-S053 BOLTBOLT
-
92153B92153-S144 BOLTBOLT
-
92153C92153-S298 BOLT, 6X25BOLT, 6X25
-
92171A92171-S100 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92171B92171-S101 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92171C92171-S165 CLAMP, BRAKE CABLECLAMP, BRAKE CABLE
-
9217292172-S054 SCREW, RESERVOIR CAPSCREW, RESERVOIR CAP
-
9220092200-S014 WASHER, 10X15X1.5WASHER, 10X15X1.5
