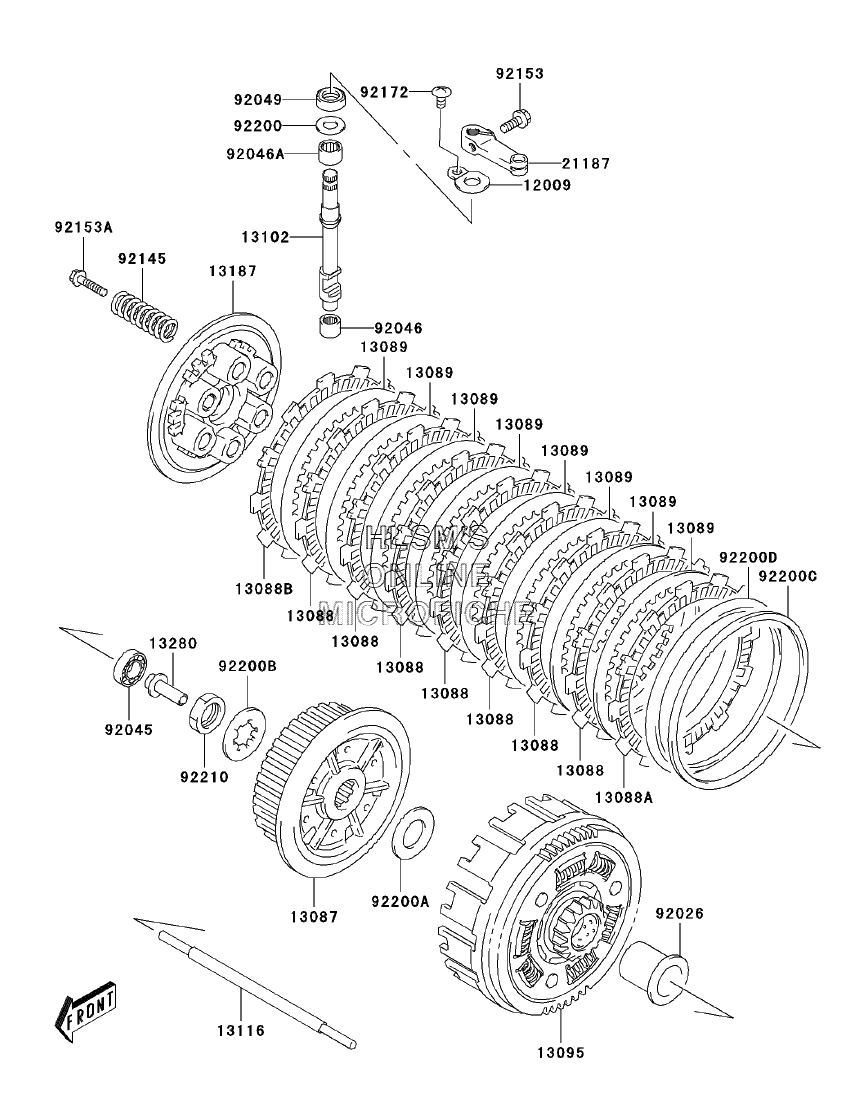

CLUTCH для Kawasaki KFX400 (KSF400-A3) - 2005 года выпуска
-
№АртикулНазвание
-
1200912009-S003 RETAINER-VALVE SPRINGRETAINER-VALVE SPRING
-
1308713087-S007 HUB-CLUTCHHUB-CLUTCH
-
1308813088-S003 PLATE-FRICTION, NO.1PLATE-FRICTION, NO.1
-
13088A13088-S004 PLATE-FRICTION, NO.2PLATE-FRICTION, NO.2
-
13088B13088-S009 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-S003 PLATE-CLUTCHPLATE-CLUTCH
-
1309513095-S011 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1310213102-S003 RELEASE-COMP-CLUTCHRELEASE-COMP-CLUTCH
-
1311613116-S003 ROD-PUSHROD-PUSH
-
1318713187-S006 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
1328013280-S025 HOLDER, CLUTCH PUSHHOLDER, CLUTCH PUSH
-
2118721187-S004 ARM-ASSY, CLUTCH RELEASEARM-ASSY, CLUTCH RELEASE
-
9202692026-S094 SPACERSPACER
-
9204592045-S004 BEARING-BALL, 12X28X8BEARING-BALL, 12X28X8
-
9204692046-S014 BEARING-NEEDLE, CAM SHAFT (LOWER)BEARING-NEEDLE, CAM SHAFT (LOWER)
-
92046A92046-S015 BEARING-NEEDLE, CAM SHAFT (UPPER)BEARING-NEEDLE, CAM SHAFT (UPPER)
-
9204992049-S018 SEAL-OIL, 10X20X6SEAL-OIL, 10X20X6
-
9214592145-S100 SPRING, CLUTCHSPRING, CLUTCH
-
9215392153-S001 BOLTBOLT
-
92153A92153-S469 BOLTBOLT
-
9217292172-S092 SCREWSCREW
-
9220092200-S061 WASHER, 10X20X1.0WASHER, 10X20X1.0
-
92200A92200-S131 WASHER, CLUTCHWASHER, CLUTCH
-
92200B92200-S144 WASHER, CLUTCHWASHER, CLUTCH
-
92200C92200-S185 WASHERWASHER
-
92200D92200-S186 WASHERWASHER
-
9221092210-S103 NUT, CLUTCHNUT, CLUTCH
