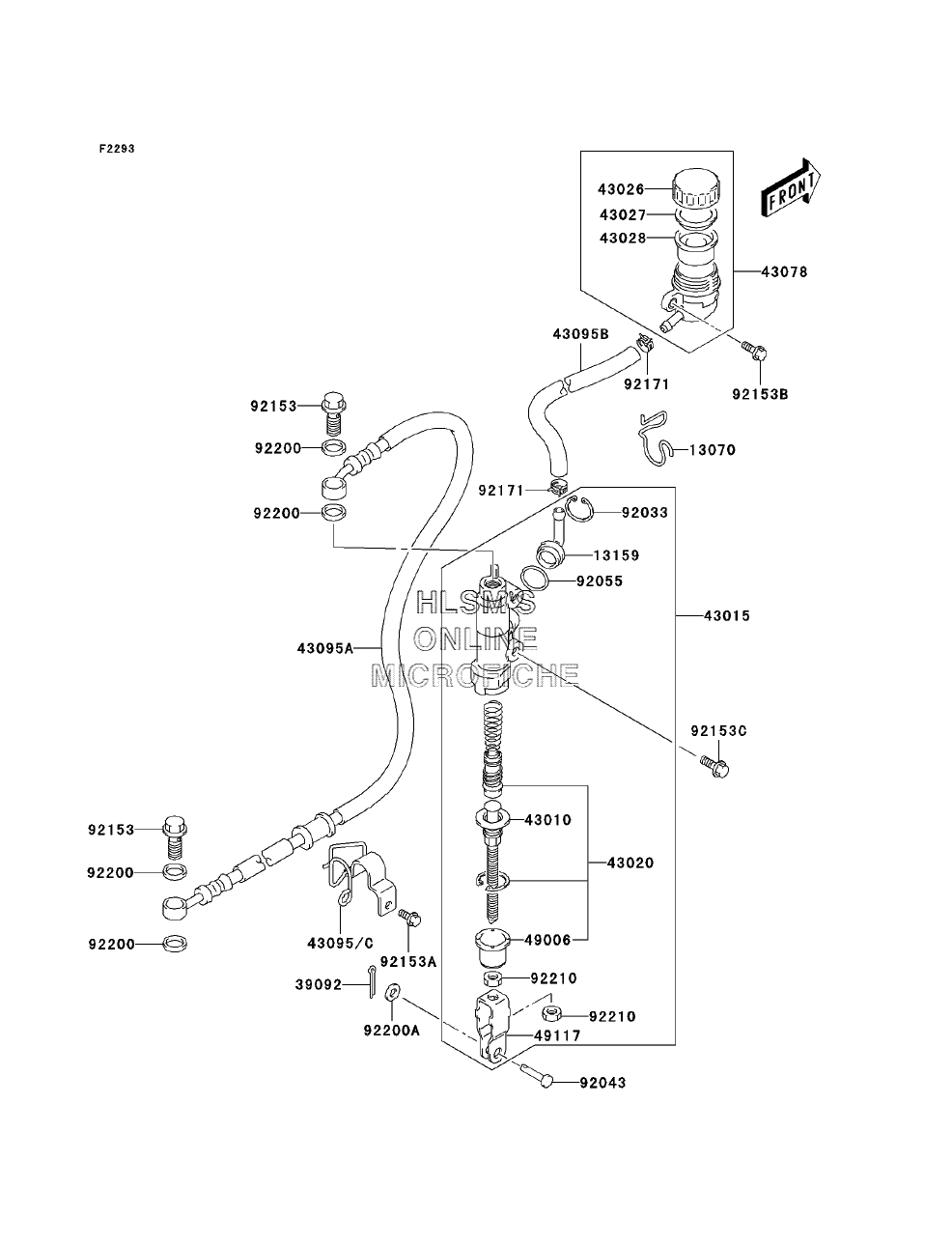

BRAKE - MASTER CYLINDER - REAR для Kawasaki KFX400 (KSF400-A3) - 2005 года выпуска
-
№АртикулНазвание
-
1307013070-S013 GUIDEGUIDE
-
1315913159-S002 CONNECTORCONNECTOR
-
3909239092-S004 PIN-HAIR, FRONT FOOTREST COTTERPIN-HAIR, FRONT FOOTREST COTTER
-
4301043010-S001 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-S009 CYLINDER-ASSY-MASTER REARCYLINDER-ASSY-MASTER REAR
-
4302043020-S005 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-S005 CAP-BRAKECAP-BRAKE
-
4302743027-S003 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-S010 DIAPHRAGMDIAPHRAGM
-
4307843078-S005 RESERVOIRRESERVOIR
-
43095A43095-S010 HOSE-BRAKEHOSE-BRAKE
-
43095B43095-S011 HOSE-BRAKEHOSE-BRAKE
-
43095C43095-S026 CLAMP, HOSE-BRAKECLAMP, HOSE-BRAKE
-
4900649006-S026 BOOTBOOT
-
4911749117-S002 YOKEYOKE
-
9203392033-S042 RING-SNAPRING-SNAP
-
9204392043-S036 PIN, REAR MASTER CYLINDERPIN, REAR MASTER CYLINDER
-
9205592055-S071 RING-ORING-O
-
9215392153-S053 BOLTBOLT
-
92153A92153-S143 BOLTBOLT
-
92153B92153-S144 BOLTBOLT
-
92153C92153-S260 BOLT, REAR MASTER CYLINDERBOLT, REAR MASTER CYLINDER
-
9217192171-S086 CLAMPCLAMP
-
9220092200-S014 WASHER, 10X15X1.5WASHER, 10X15X1.5
-
92200A92200-S135 WASHER, REAR MASTER CYLINDERWASHER, REAR MASTER CYLINDER
-
9221092210-S112 NUTNUT
