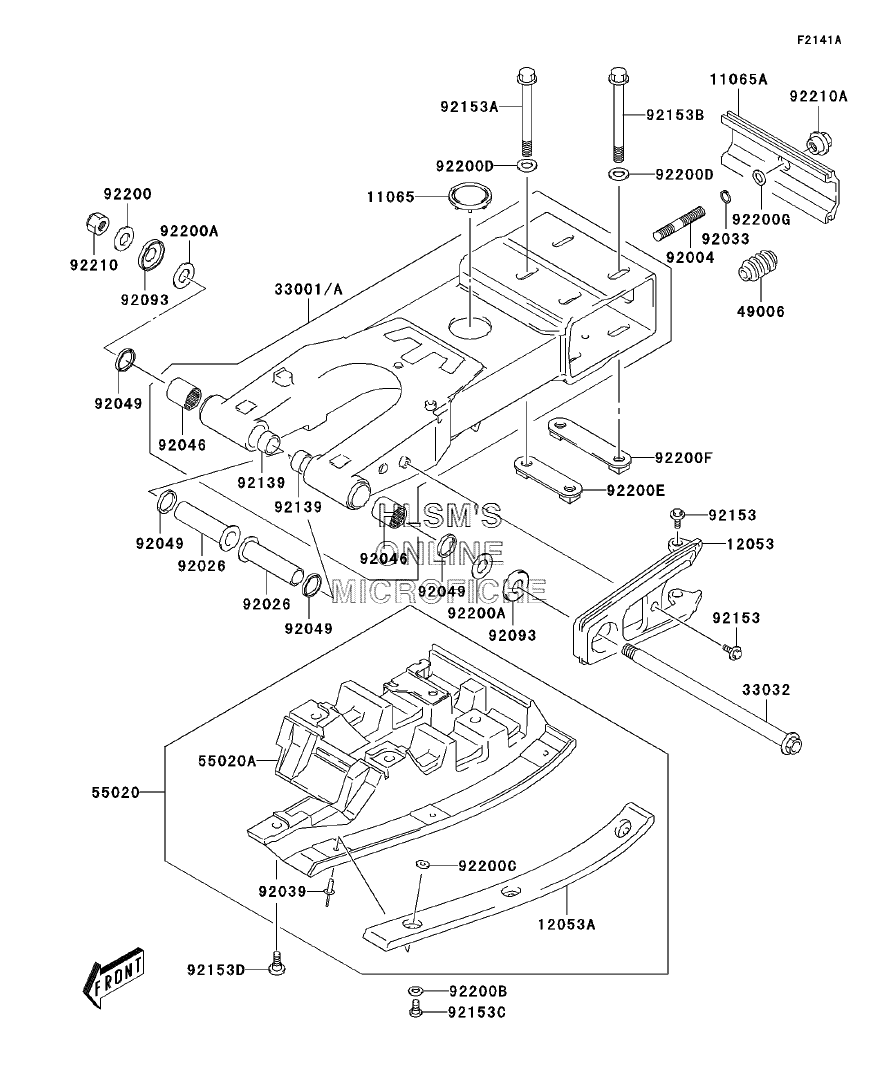

SUSPENSION - SWINGARM для Kawasaki KFX400 (KSF400-A3) - 2005 года выпуска
-
№АртикулНазвание
-
1106511065-S038 CAP, SWINGING ARMCAP, SWINGING ARM
-
11065A11065-S064 CAP, CHAIN ADJUSTERCAP, CHAIN ADJUSTER
-
1205312053-S017 GUIDE-CHAINGUIDE-CHAIN
-
12053A12053-S024 GUIDE-CHAINGUIDE-CHAIN
-
33001A33001-S016 ARM-COMP-SWINGARM-COMP-SWING
-
3303233032-S007 SHAFT-SWING ARMSHAFT-SWING ARM
-
4900649006-S038 BOOTBOOT
-
5502055020-S035 GUARD, SWING ARMGUARD, SWING ARM
-
55020A55020-S036 GUARD, SWING ARMGUARD, SWING ARM
-
9200492004-S014 STUD, CHAIN ADJUSTERSTUD, CHAIN ADJUSTER
-
9202692026-S100 SPACERSPACER
-
9203392033-S002 RING-SNAPRING-SNAP
-
9203992039-S011 RIVETRIVET
-
9204692046-S019 BEARING-NEEDLE, SWING ARMBEARING-NEEDLE, SWING ARM
-
9204992049-S053 SEAL-OIL, SWING ARMSEAL-OIL, SWING ARM
-
9209392093-S040 SEALSEAL
-
9213992139-S029 BUSHINGBUSHING
-
9215392153-S306 BOLTBOLT
-
92153A92153-S373 BOLTBOLT
-
92153B92153-S374 BOLTBOLT
-
92153C92153-S398 BOLT, GUARD CENTERBOLT, GUARD CENTER
-
92153D92153-S399 BOLTBOLT
-
9220092200-S011 WASHER, 16.2X30X2.6WASHER, 16.2X30X2.6
-
92200A92200-S054 WASHERWASHER
-
92200B92200-S092 WASHER, MAGNETOWASHER, MAGNETO
-
92200C92200-S215 WASHERWASHER
-
92200D92200-S225 WASHERWASHER
-
92200E92200-S226 WASHERWASHER
-
92200F92200-S227 WASHERWASHER
-
92200G92200-S234 WASHERWASHER
-
9221092210-S133 NUTNUT
-
92210A92210-S146 NUTNUT
