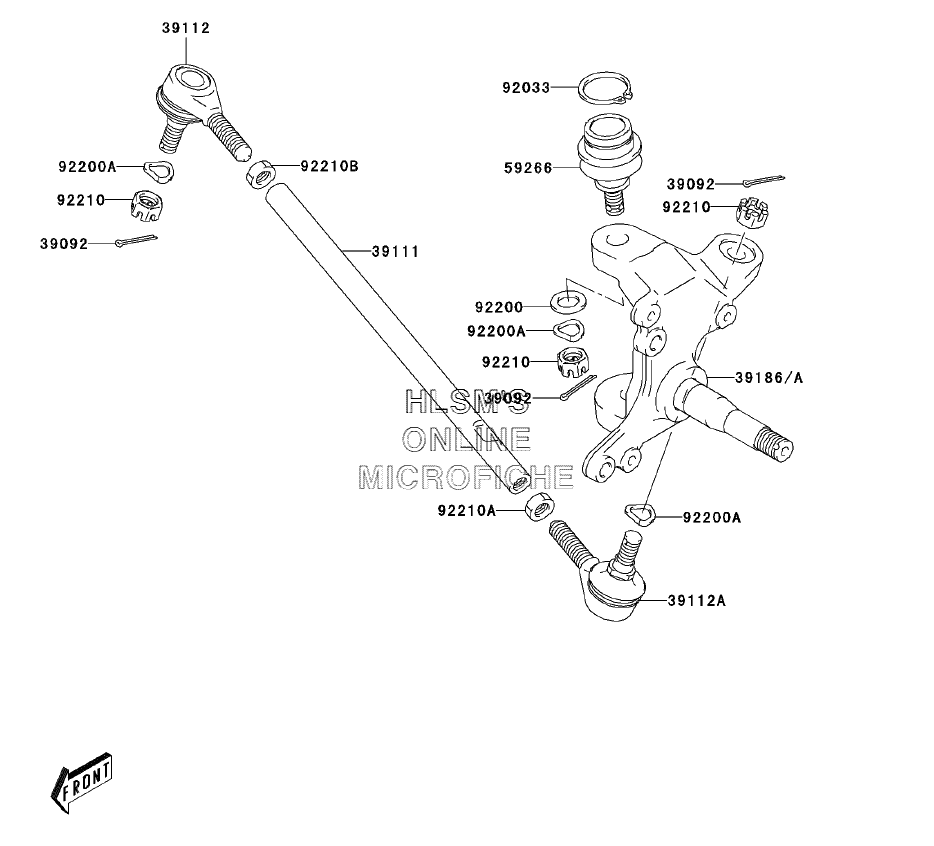

KNUCKLE ARM для Kawasaki KFX400 (KSF400-A3) - 2005 года выпуска
-
№АртикулНазвание
-
3909239092-S005 PIN-HAIR, COTTERPIN-HAIR, COTTER
-
3911139111-S004 ROD-TIEROD-TIE
-
3911239112-S009 RODEND-TIERODEND-TIE
-
39112A39112-S010 RODEND-TIERODEND-TIE
-
3918639186-S011 KNUCKLE (RIGHT)KNUCKLE (RIGHT)
-
39186A39186-S012 KNUCKLE (LEFT)KNUCKLE (LEFT)
-
5926659266-S002 JOINT-BALLJOINT-BALL
-
9203392033-S038 RING-SNAPRING-SNAP
-
9220092200-S092 WASHER, MAGNETOWASHER, MAGNETO
-
92200A92200-S096 WASHER, STEERING SHAFT (LOWER)WASHER, STEERING SHAFT (LOWER)
-
9221092210-S052 NUTNUT
-
92210A92210-S072 NUT, TIE-RODNUT, TIE-ROD
-
92210B92210-S073 NUT, TIE-RODNUT, TIE-ROD
Все узлы модели:
- AIR CLEANER
- BALANCER
- BATTERY
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE PEDAL
- CAM CHAIN/TENSIONER
- CARBURETOR
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- CRANKCASE
- CRANKSHAFT/PISTON(S)
- CYLINDER
- CYLINDER HEAD
- CYLINDER HEAD COVER
- ENGINE COVER(S)
- FENDER - FRONT
- FENDER - REAR
- FOOTRESTS
- FRAME
- FRONT HUB
- FUEL TANK
- GASKET KIT
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLE LEVER
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH
- IGNITION SYSTEM
- • KNUCKLE ARM
- LABELS
- MUFFLER(S)
- OIL PUMP/OIL FILTER
- OIL TANK
- PUBLICATIONS
- RADIATOR
- REAR HUB
- REVERSE LOCK
- SEAT
- SIDE COVERS
- STARTER CLUTCH
- STARTER MOTOR
- STEERING SHAFT
- SUSPENSION - FRONT
- SUSPENSION - REAR
- SUSPENSION - SWINGARM
- TAILLIGHT(S) (CANADA ONLY)
- TAILLIGHT(S) (US ONLY)
- TRANSMISSION
- VALVE(S)/CAMSHAFT(S)
- WATER PUMP
