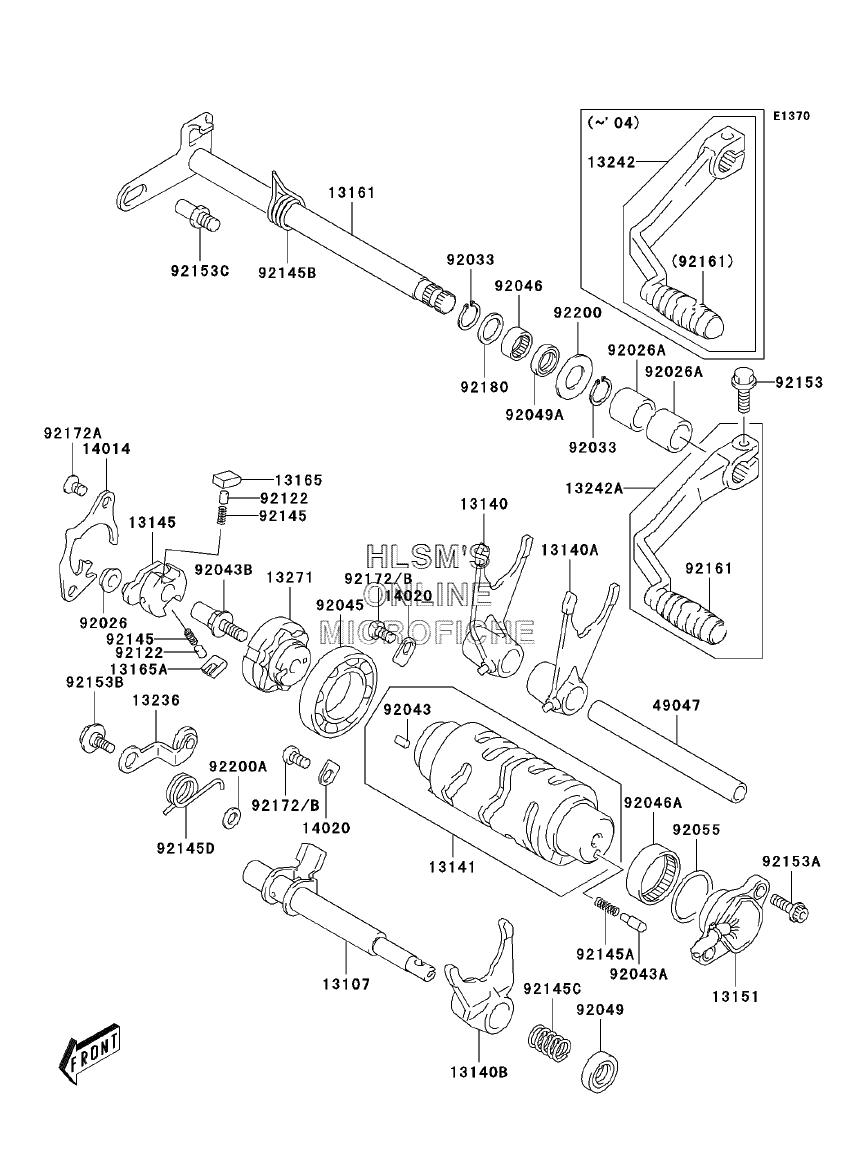

GEAR CHANGE MECHANISM для Kawasaki KFX400 (KSF400-A3) - 2005 года выпуска
-
№АртикулНазвание
-
1310713107-S006 SHAFT, REVERSE LOCKSHAFT, REVERSE LOCK
-
1314013140-S008 FORK-SHIFTFORK-SHIFT
-
13140A13140-S009 FORK-SHIFTFORK-SHIFT
-
13140B13140-S010 FORK-SHIFTFORK-SHIFT
-
1314113141-S005 DRUM-CHANGEDRUM-CHANGE
-
1314513145-S004 CAM-CHANGE DRUMCAM-CHANGE DRUM
-
1315113151-S002 SWITCH-COMPSWITCH-COMP
-
1316113161-S004 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1316513165-S003 PAWLPAWL
-
13165A13165-S004 PAWLPAWL
-
1323613236-S005 LEVER-COMP, GEAR SHIFTLEVER-COMP, GEAR SHIFT
-
13242A13242-S008 LEVER-ASSY, CHANGELEVER-ASSY, CHANGE
-
1327113271-S046 PLATEPLATE
-
1401414014-S004 PLATE-POSITIONPLATE-POSITION
-
1402014020-S008 RETAINERRETAINER
-
4904749047-S004 ROD-SHIFTROD-SHIFT
-
9202692026-S087 SPACER, GEAR SHIFT CAMSPACER, GEAR SHIFT CAM
-
92026A92026-S089 SPACERSPACER
-
9203392033-S037 RING-SNAPRING-SNAP
-
9204392043-S035 PIN, CAM STOPPER PLATEPIN, CAM STOPPER PLATE
-
92043A92043-S038 PIN, GEAR SHIFTPIN, GEAR SHIFT
-
92043B92043-S041 PIN, SHIFT CAMPIN, SHIFT CAM
-
9204592045-S047 BEARING-BALL, GEAR SHIFTBEARING-BALL, GEAR SHIFT
-
9204692046-S008 BEARING-NEEDLE, 14X20X12BEARING-NEEDLE, 14X20X12
-
92046A92046-S020 BEARING-NEEDLE, GEAR SHIFT CAMBEARING-NEEDLE, GEAR SHIFT CAM
-
9204992049-S049 SEAL-OIL, REVERSE LOCK SHAFTSEAL-OIL, REVERSE LOCK SHAFT
-
92049A92049-S050 SEAL-OIL, GEAR SHIFTSEAL-OIL, GEAR SHIFT
-
9205592055-S055 RING-O, 26.2X2.4RING-O, 26.2X2.4
-
9212292122-S005 ROLLER, 5X8ROLLER, 5X8
-
9214592145-S037 SPRINGSPRING
-
92145A92145-S089 SPRINGSPRING
-
92145B92145-S094 SPRINGSPRING
-
92145C92145-S101 SPRING, REVERSE LOCKSPRING, REVERSE LOCK
-
92145D92145-S102 SPRINGSPRING
-
9215392153-S013 BOLTBOLT
-
92153A92153-S252 BOLTBOLT
-
92153B92153-S285 BOLT, 6X14.3BOLT, 6X14.3
-
92153C92153-S292 BOLTBOLT
-
9216192161-S093 DAMPER, PEDALDAMPER, PEDAL
-
9217292172-S033 SCREW, 6X12SCREW, 6X12
-
92172A92172-S112 SCREWSCREW
-
9218092180-S045 SHIM, GEAR SHIFTSHIM, GEAR SHIFT
-
9220092200-S086 WASHER, 14X29X1.50WASHER, 14X29X1.50
-
92200A92200-S127 WASHERWASHER
