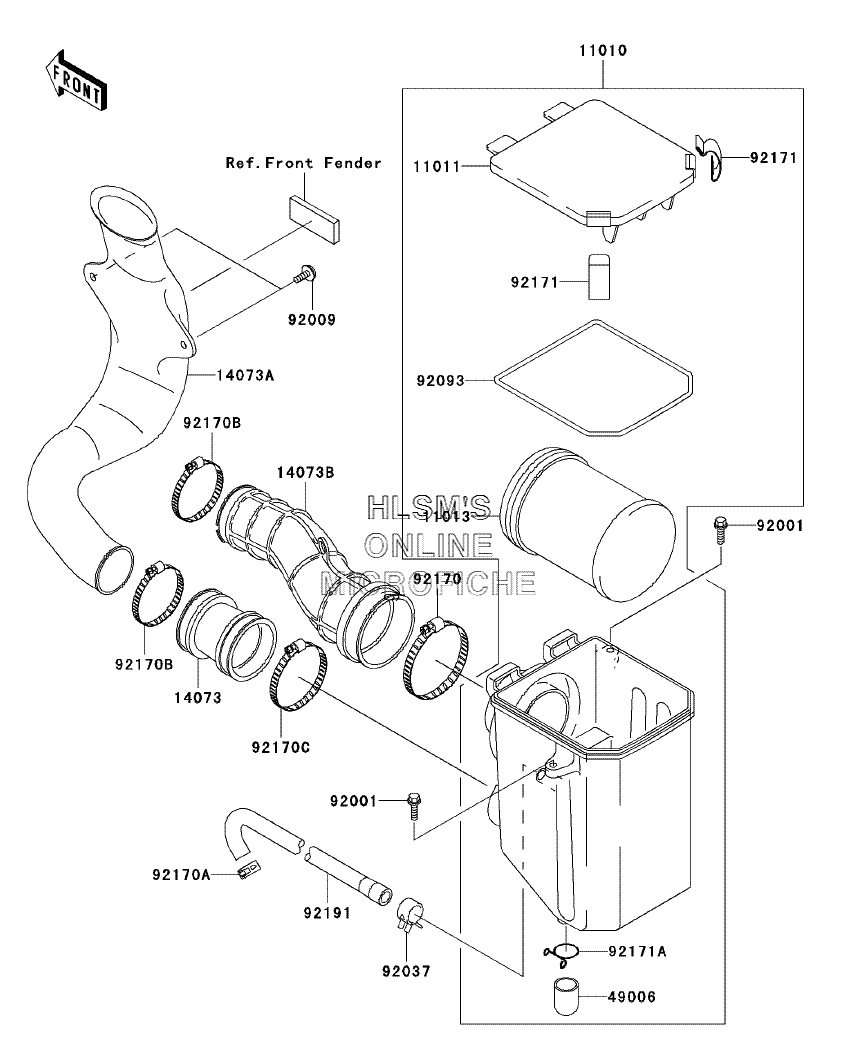

AIR CLEANER для Kawasaki Prairie 360 4x4 (KVF360-A3) - 2005 года выпуска
-
№АртикулНазвание
-
1101011010-1766 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101111011-1639 CASE-AIR FILTER (UPPER)CASE-AIR FILTER (UPPER)
-
1101311013-1292 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1407314073-1802 DUCT, A/C-INLETDUCT, A/C-INLET
-
14073A14073-1803 DUCT, INLETDUCT, INLET
-
14073B14073-1823 DUCT, A/C-CARBURETORDUCT, A/C-CARBURETOR
-
4900649006-1359 BOOTBOOT
-
9200192001-1460 BOLT, WP, 6X20BOLT, WP, 6X20
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9203792037-1678 CLAMPCLAMP
-
9209392093-1550 SEAL, AIR FILTER CASESEAL, AIR FILTER CASE
-
9217092170-1307 CLAMPCLAMP
-
92170A92170-1491 CLAMPCLAMP
-
92170B92170-1674 CLAMPCLAMP
-
92170C92170-1764 CLAMPCLAMP
-
9217192171-1426 CLAMP, AIR FILTER CASECLAMP, AIR FILTER CASE
-
92171A92171-1427 CLAMPCLAMP
-
9219192191-1644 TUBE, AIR CLEANERTUBE, AIR CLEANER
