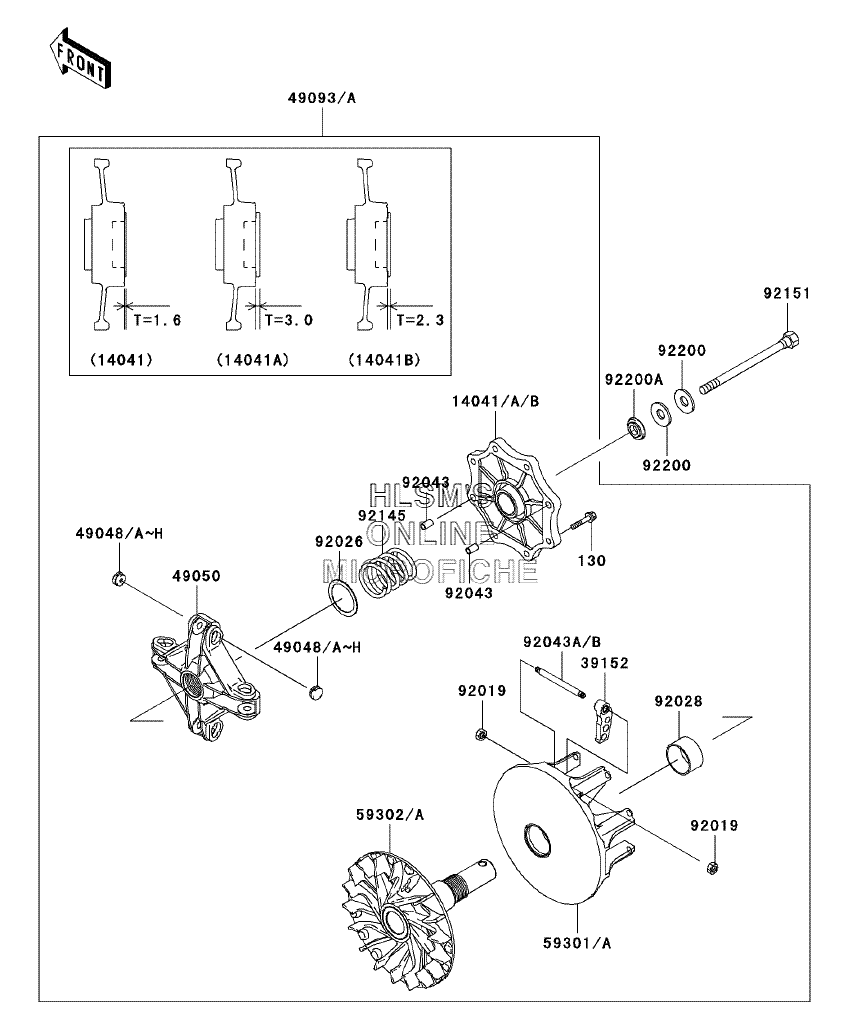

DRIVE CONVERTER для Kawasaki Prairie 360 4x4 (KVF360-A3) - 2005 года выпуска
-
№АртикулНазвание
-
130130T0630 BOLT-FLANGEDBOLT-FLANGED
-
1404114041-1159 COVER-COMP (RED)COVER-COMP (RED)
-
14041A14041-1160 COVER-COMP (BLUE)COVER-COMP (BLUE)
-
14041B14041-1161 COVER-COMP (STD)COVER-COMP (STD)
-
3915239152-1096 WEIGHT-RAMPWEIGHT-RAMP
-
4904849048-1087 SHOE, T=7.2SHOE, T=7.2
-
49048A49048-1088 SHOE, T=7.3SHOE, T=7.3
-
49048B49048-1089 SHOE, T=7.4SHOE, T=7.4
-
49048C49048-1090 SHOE, T=7.5SHOE, T=7.5
-
49048D49048-1091 SHOE, T=7.6SHOE, T=7.6
-
49048E49048-1092 SHOE, T=7.7SHOE, T=7.7
-
49048F49048-1093 SHOE, T=7.8SHOE, T=7.8
-
49048G49048-1094 SHOE, T=7.9SHOE, T=7.9
-
49048H49048-1095 SHOE, T=8.0SHOE, T=8.0
-
4905049050-1081 SPIDERSPIDER
-
4909349093-0012 CONVERTER-ASSY-DRIVECONVERTER-ASSY-DRIVE
-
59301A59301-1070 SHEAVE-MOVABLESHEAVE-MOVABLE
-
5930259302-0003 SHEAVE-COMPSHEAVE-COMP
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9202692026-1603 SPACER, 39X49.5X1.0SPACER, 39X49.5X1.0
-
9202892028-1975 BUSHINGBUSHING
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043B92043-1688 PINPIN
-
9214592145-1465 SPRINGSPRING
-
9215192151-1393 BOLTBOLT
-
9220092200-1504 WASHER, SPRINGWASHER, SPRING
-
92200A92200-1634 WASHERWASHER
