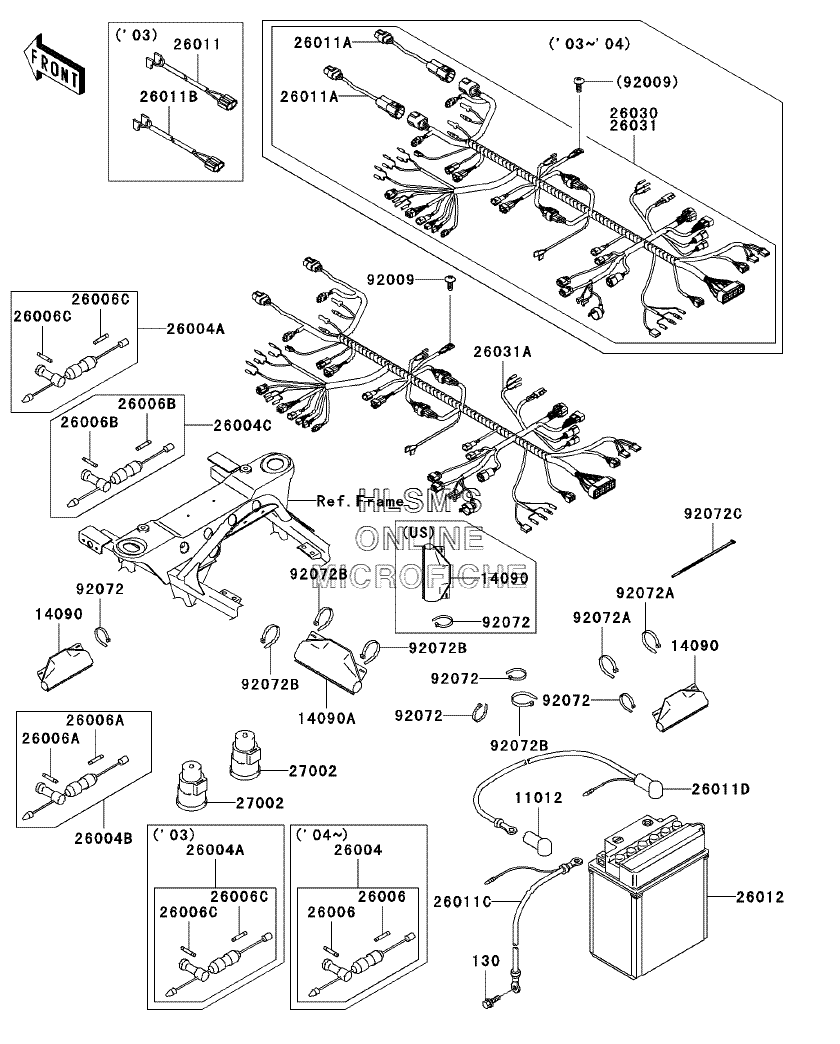

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Prairie 360 4x4 (KVF360-A3) - 2005 года выпуска
-
№АртикулНазвание
-
130130B0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
1101211012-1354 CAP, TERMINALCAP, TERMINAL
-
1409014090-1331 COVER, COUPLER (CANADA ONLY)COVER, COUPLER (CANADA ONLY)
-
1409014090-1331 COVER, COUPLER (US ONLY)COVER, COUPLER (US ONLY)
-
14090A14090-1611 COVER, COUPLERCOVER, COUPLER
-
2600426004-0005 FUSE-ASSYFUSE-ASSY
-
26004A26004-1114 FUSE-ASSYFUSE-ASSY
-
26004B26004-1127 FUSE-ASSYFUSE-ASSY
-
26004C26004-7501 FUSE-ASSYFUSE-ASSY
-
2600626006-0003 FUSE, 10A, L=30FUSE, 10A, L=30
-
26006A26006-1059 FUSE, 30A, L=30FUSE, 30A, L=30
-
26006B26006-1064 FUSE, 20A, L=32FUSE, 20A, L=32
-
26006C26006-1074 FUSE, 5A, L=30FUSE, 5A, L=30
-
26011C26011-7503 WIRE-LEAD, BATTERY (-)WIRE-LEAD, BATTERY (-)
-
26011D26011-7507 WIRE-LEAD, BATTERY (+)WIRE-LEAD, BATTERY (+)
-
2601226012-0006 BATTERY, YB14A-A2, 12V 14AHBATTERY, YB14A-A2, 12V 14AH
-
26031A26031-0089 HARNESS, MAINHARNESS, MAIN
-
2700227002-1095 RELAY-ASSYRELAY-ASSY
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9207292072-030 BAND, L=123 (CANADA ONLY)BAND, L=123 (CANADA ONLY)
-
9207292072-030 BAND, L=123 (US ONLY)BAND, L=123 (US ONLY)
-
92072A92072-031 BAND, L=149BAND, L=149
-
92072B92072-056 BAND, L=186BAND, L=186
-
92072C92072-1239 BAND, L=188BAND, L=188
