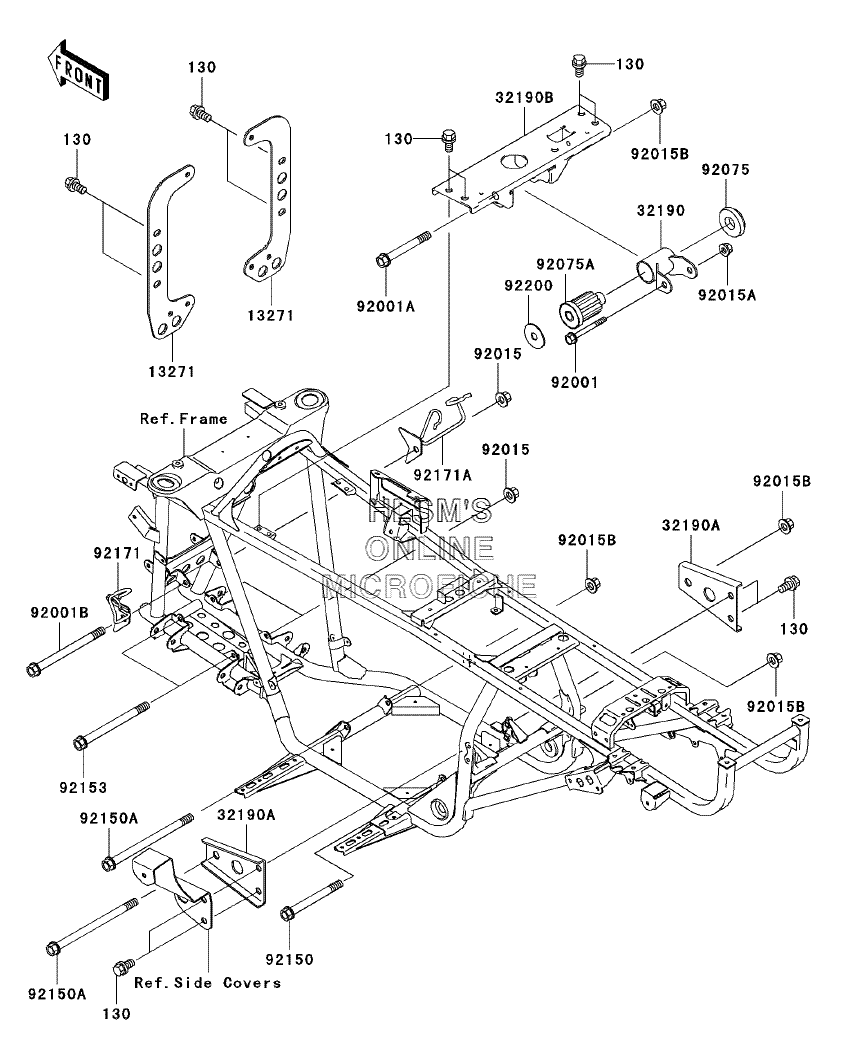

ENGINE MOUNT для Kawasaki Prairie 360 4x4 (KVF360-A3) - 2005 года выпуска
-
№АртикулНазвание
-
130130J0814 BOLT-FLANGED, 8X14BOLT-FLANGED, 8X14
-
1327113271-7519 PLATE, OIL COOLERPLATE, OIL COOLER
-
3219032190-1141 BRACKET-ENGINEBRACKET-ENGINE
-
32190A32190-7505 BRACKET-ENGINE, REARBRACKET-ENGINE, REAR
-
32190B32190-7507 BRACKET-ENGINE, HEADBRACKET-ENGINE, HEAD
-
9200192001-1615 BOLT, FLANGED, 8X60, BLACKBOLT, FLANGED, 8X60, BLACK
-
92001A92001-1709 BOLT, FLANGED, 10X80BOLT, FLANGED, 10X80
-
92001B92001-1720 BOLT, FLANGED, 10X125BOLT, FLANGED, 10X125
-
9201592015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1397 NUT, LOCK, FLANGED, 8MMNUT, LOCK, FLANGED, 8MM
-
92015B92015-1727 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9207592075-1274 DAMPER, ENGINE MOUNT, SIDEDAMPER, ENGINE MOUNT, SIDE
-
92075A92075-1377 DAMPER, ENGINE MOUNT, MAINDAMPER, ENGINE MOUNT, MAIN
-
9215092150-1230 BOLT, FLANGED, 10X95BOLT, FLANGED, 10X95
-
92150A92150-1686 BOLT, FLANGED, 10X150BOLT, FLANGED, 10X150
-
9215392153-7502 BOLT, FLANGED, 10X120BOLT, FLANGED, 10X120
-
9217192171-1535 CLAMP, BRAKE HOSE (LEFT)CLAMP, BRAKE HOSE (LEFT)
-
92171A92171-1540 CLAMP, BRAKE HOSE (RIGHT)CLAMP, BRAKE HOSE (RIGHT)
-
9220092200-7504 WASHER, 10.5X38.1X1.52WASHER, 10.5X38.1X1.52
