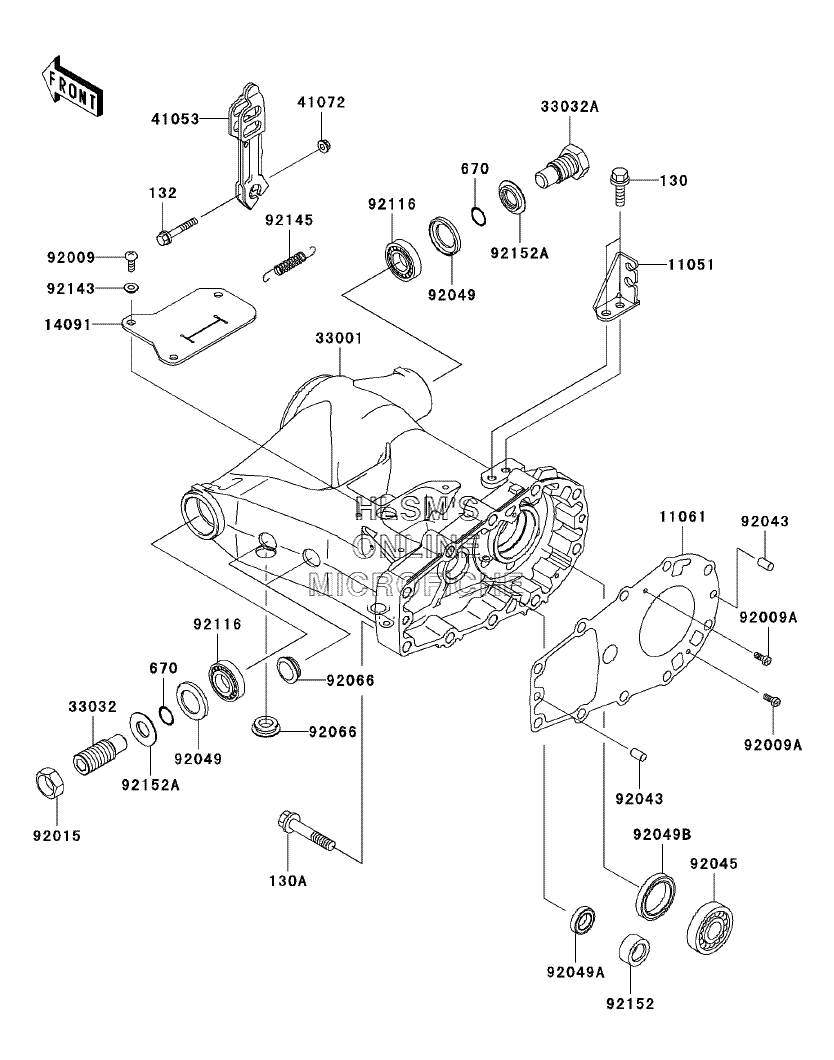

SUSPENSION - SWINGARM для Kawasaki Prairie 360 4x4 (KVF360-A3) - 2005 года выпуска
-
№АртикулНазвание
-
130130J0822 BOLT-FLANGEDBOLT-FLANGED
-
130A130P1055 BOLT-FLANGEDBOLT-FLANGED
-
132132G0640 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
670670B2016 O RING, 16MMO RING, 16MM
-
1105111051-1762 BRACKET, CABLEBRACKET, CABLE
-
1106111061-1065 GASKET, SWING ARMGASKET, SWING ARM
-
1409114091-7508 COVERCOVER
-
3300133001-7502 ARM-COMP-SWINGARM-COMP-SWING
-
3303233032-1197 SHAFT-SWING ARM (LEFT)SHAFT-SWING ARM (LEFT)
-
33032A33032-1200 SHAFT-SWING ARM (RIGHT)SHAFT-SWING ARM (RIGHT)
-
4105341053-1094 LEVER-BRAKE CAMLEVER-BRAKE CAM
-
4107241072-007 NUT, 6MMNUT, 6MM
-
9200992009-1166 SCREWSCREW
-
92009A92009-1936 SCREW, 4X10SCREW, 4X10
-
9201592015-1229 NUT, 22MMNUT, 22MM
-
9204392043-1567 PIN, 8X14PIN, 8X14
-
9204592045-1427 BEARING-BALL, TMBO/28C3BEARING-BALL, TMBO/28C3
-
9204992049-1030 SEAL-OIL, 26406SEAL-OIL, 26406
-
92049A92049-1537 SEAL-OIL, TC17X28X6SEAL-OIL, TC17X28X6
-
92049B92049-1538 SEAL-OIL, HTC35X48X7SEAL-OIL, HTC35X48X7
-
9206692066-1534 PLUGPLUG
-
9211692116-1001 BEARING-ROLLER, 4T30203E1BEARING-ROLLER, 4T30203E1
-
9214392143-1331 COLLARCOLLAR
-
9214592145-1313 SPRING, BRAKE LEVER RETURNSPRING, BRAKE LEVER RETURN
-
9215292152-1240 COLLARCOLLAR
-
92152A92152-1356 COLLARCOLLAR
