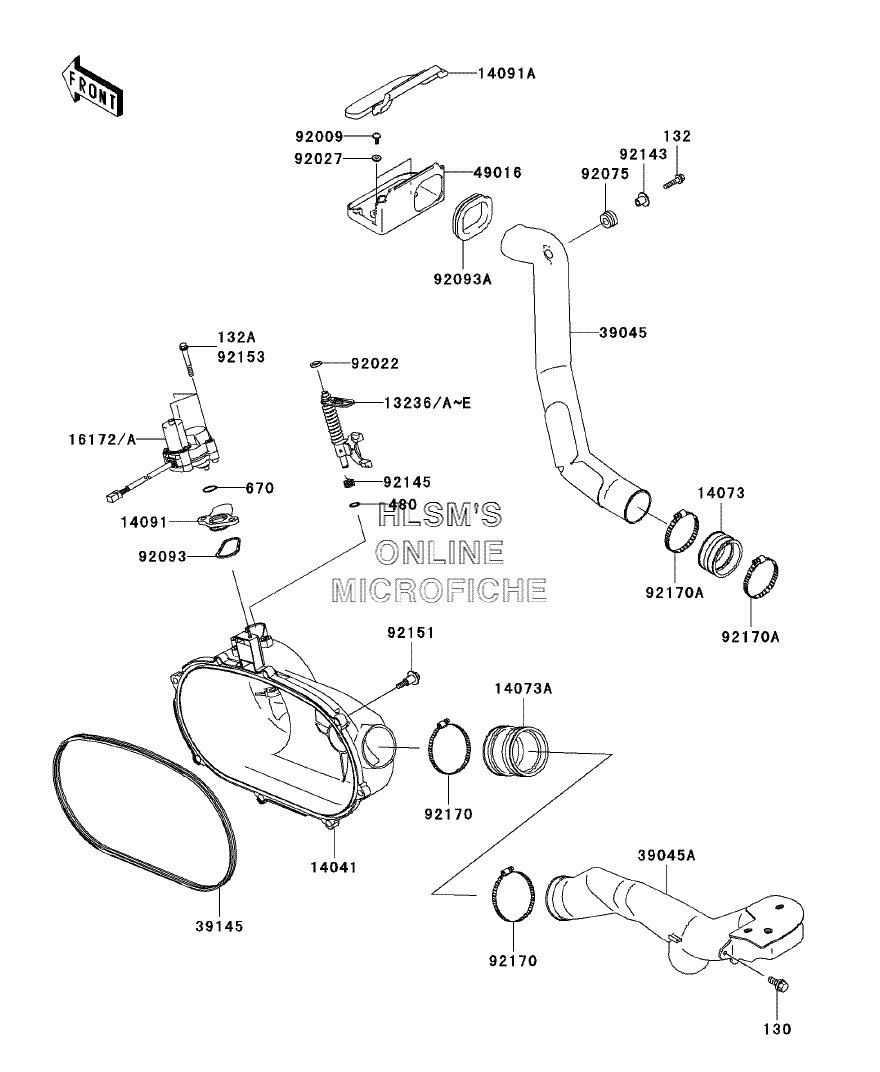

CONVERTER COVER/DRIVE BELT для Kawasaki Prairie 360 4x4 (KVF360-A3) - 2005 года выпуска
-
№АртикулНазвание
-
130130G0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
132132G0625 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
480480J1000 CIRCLIP-TYPE-C, 10MMCIRCLIP-TYPE-C, 10MM
-
670670D3022 O RINGO RING
-
1323613236-0046 LEVER-COMP (YELLOW)LEVER-COMP (YELLOW)
-
13236A13236-0047 LEVER-COMP (GREEN)LEVER-COMP (GREEN)
-
13236B13236-0048 LEVER-COMP, ENGINE BRAKELEVER-COMP, ENGINE BRAKE
-
1404114041-1156 COVER-COMP, BELT CONVERTERCOVER-COMP, BELT CONVERTER
-
1407314073-1775 DUCT, AIR FILTER JOINTDUCT, AIR FILTER JOINT
-
14073A14073-1805 DUCT, JOINT ENGINE COVERDUCT, JOINT ENGINE COVER
-
1409114091-1421 COVER, ENGINE BRAKECOVER, ENGINE BRAKE
-
14091A14091-1500 COVER, MUDGUARDCOVER, MUDGUARD
-
1617216172-0002 ACTUATORACTUATOR
-
3904539045-1067 DUCT-ASSY, SNORKEL, INDUCT-ASSY, SNORKEL, IN
-
39045A39045-1068 DUCT-ASSY, SNORKEL, EXDUCT-ASSY, SNORKEL, EX
-
3914539145-1135 TRIM-SEALTRIM-SEAL
-
4901649016-1218 COVER-SEAL, BELT CONVERTERCOVER-SEAL, BELT CONVERTER
-
9200992009-1197 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
-
9202292022-1829 WASHER, 10.2X16X1WASHER, 10.2X16X1
-
9202792027-1168 COLLAR, L=4.6COLLAR, L=4.6
-
9207592075-1123 DAMPER, RUBBERDAMPER, RUBBER
-
9209392093-1548 SEALSEAL
-
92093A92093-1572 SEAL, COVER MUDGUARDSEAL, COVER MUDGUARD
-
9214392143-1353 COLLARCOLLAR
-
9214592145-1567 SPRINGSPRING
-
9215192151-1686 BOLTBOLT
-
9215392153-0678 BOLT, 6X47BOLT, 6X47
-
9217092170-1763 CLAMPCLAMP
-
92170A92170-1764 CLAMPCLAMP
