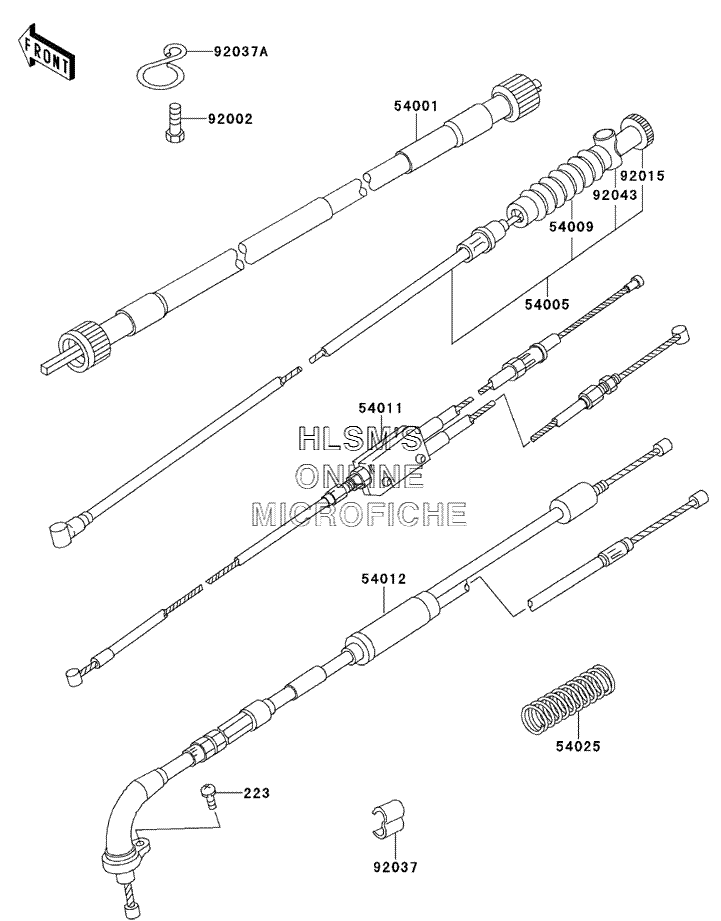

CABLES для Kawasaki KE100 - 2000 года выпуска
-
№АртикулНазвание
-
223223C0510 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
5400154001-032 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
5400554005-1035 CABLE, BRAKECABLE, BRAKE
-
5400954009-008 COVER, SEALCOVER, SEAL
-
5401154011-1054 CABLE, CLUTCHCABLE, CLUTCH
-
5401254012-1104 CABLE, THROTTLECABLE, THROTTLE
-
5402554025-004 SPRING, CABLESPRING, CABLE
-
9200292002-1211 BOLT, 6X12BOLT, 6X12
-
9201592015-052 NUT, CABLE ADJUSTER LOCKNUT, CABLE ADJUSTER LOCK
-
9203792037-017 CLAMP, CABLECLAMP, CABLE
-
92037A92037-046 CLAMP, CABLECLAMP, CABLE
-
9204392043-082 PIN, BRAKE CABLEPIN, BRAKE CABLE
